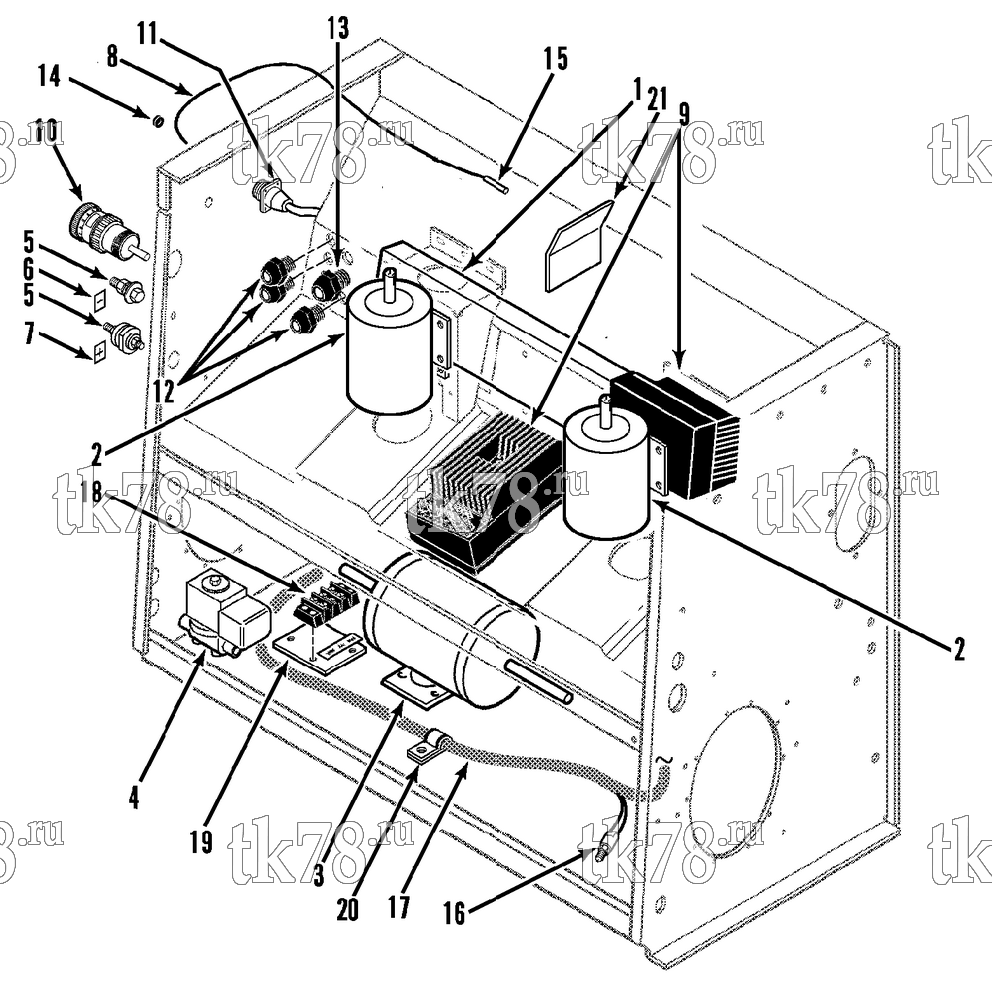

Установкa Thermo King схема ELECTRICAL COMPONENTS (M31L, M34, M46, M47, M48, M49, M51) – 144D10
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | ASQ | PANEL - control (M31L, M34 see 144D11) | 1 | |
| ASQ | PANEL - control (M46, M47, M48, M49 see 143G12) | 1 | ||
| 2 | 104-740 | MOTOR - condenser | 2 | |
| 3 | 104-741 | MOTOR - evaporator | 1 | |
| 4 | 41-7599 | VALVE - solenoid (water, 24V, see 147A1) | 1 | |
| 5 | 55-3167 | STUD - terminal | 2 | |
| 55-5901 | WASHER - shoulder (polyester) | 1 | ||
| 55-5902 | WASHER - spacer (polyester) | 1 | ||
| 55-671 | NUT | 8 | ||
| 55-448 | FLATWASHER | 8 | ||
| 55-3066 | LOCKWASHER | 4 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 6 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 7 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 8 | 44-1246 | HARNESS - ambient sensor (for connectors see 115D14) | 1 | |
| 9 | 41-3590 | CONTROLLER - motor | 2 | |
| 55-2977 | SCREW - controller | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 10 | 41-2359 | HARNESS - control (M31L, M34, for connectors see 115D14) | 1 | |
| 41-2620 | HARNESS - control (M46, M47, M49, for connectors see 115D14) | 1 | ||
| 41-2969 | HARNESS - control (M48, for connector see 115D14) | 1 | ||
| 11 | 41-2165 | HARNESS - display panel (see 145A1) | 1 | |
| 12 | 55-5900 | CONNECTOR - liquid tite | 3 | |
| 13 | 55-5257 | CONNECTOR - liquid tite | 1 | |
| 14 | 33-1692 | GROMMET (3/8 id, 3/16 groove) | 2 | |
| 33-547 | GROMMET (3/8 id, 1/8) | 1 | ||
| 33-316 | GROMMET (1 id, 3/16) | 1 | ||
| 15 | 40-975 | KIT - temperature sensor (ambient air) | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 16 | 44-6349 | SWITCH - condenser fan (for connectors see 115D14) | 1 | |
| 44-6427 | SWITCH - only | 1 | ||
| 17 | 41-659 | HARNESS - evaporator (M31L, M34, for connectors see 115D14) | 1 | |
| 41-2621 | HARNESS - evaporator (M46, M47, M48, M49, M51, for connectors see 115D14) | 1 | ||
| 18 | 44-5555 | BOARD - terminal | 1 | |
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 19 | 91-5920 | PLATE - terminal board | 1 | |
| 55-3000 | SCREW - board | 2 | ||
| 55-1587 | SCREW - plate | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 20 | 55-9227 | CLAMP - harness (0.375 dia) | 3 | |
| 55-9136 | CLAMP - harness (0.750 dia) | 2 | ||
| 55-9228 | CLAMP - harness (0.875 dia) | 4 | ||
| 55-2991 | SCREW - clamp | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 8 | ||
| 55-6721 | INSERT | 8 | ||
| 21 | 91-5575 | BRACKET - thermostat | 1 | |
| 55-2991 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-6721 | INSERT | 2 |
