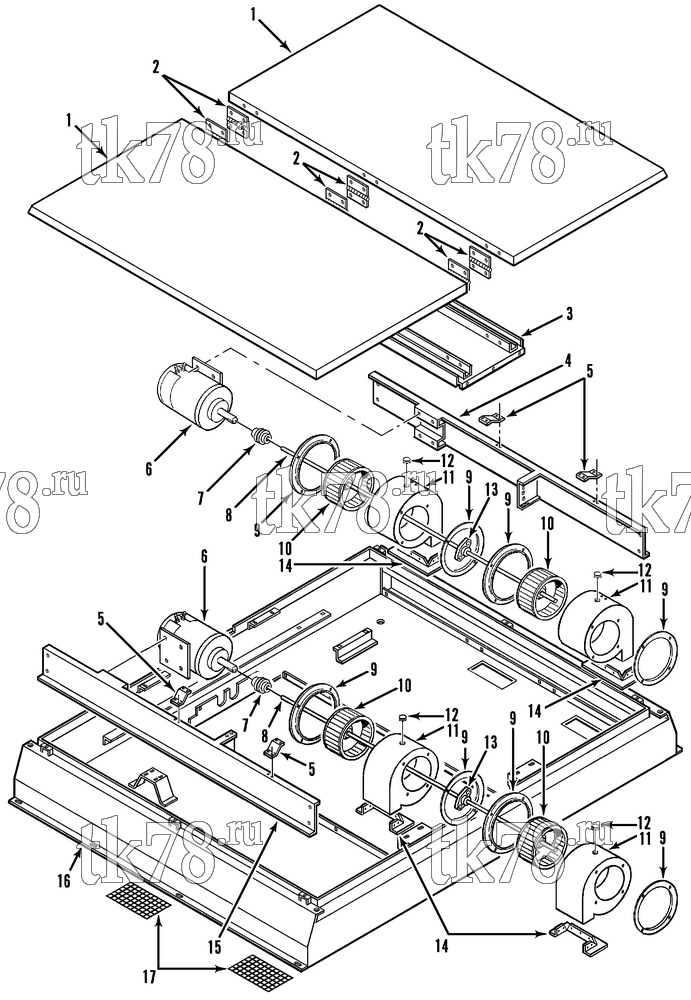

Установкa Thermo King схема EVAPORATOR FRAME, MOTOR & BLOWER GROUP – 143C9
Обновление от: 3/11/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3993 | COVER - evaporator access | 2 | |
| 55-3369 | FASTENER - screw (cover) | 6 | ||
|
10-55-3369 | Винт | 1 520 ₽ |
|
| 55-7112 | WASHER - split | 6 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 2 | 91-2034 | HINGE - cover | 6 | |
| 55-3027 | SCREW - hinge | 30 | ||
| 55-2001 | FLATWASHER | 30 | ||
| 55-4560 | NUT | 30 | ||
| 3 | 98-5240 | COVER - center | 1 | |
| 55-1587 | SCREW - cover | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 4 | 98-3992 | CHANNEL - blower (curbside) | 1 | |
| 55-2957 | SCREW - channel | 8 | ||
| 55-3045 | WASHER - dome | 8 | ||
| 5 | 91-3080 | BRACKET - blower housing | 4 | |
| 55-5639 | SCREW - bracket | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 6 | 104-525 | MOTOR (27VDC, see 120G12) | 2 | |
| 99-8335 | NUTSTRIP - motor | 4 | ||
| 55-2963 | SCREW - motor | 8 | ||
| 55-4727 | WASHER - spacer | 8 | ||
| 55-2959 | LOCKWASHER | 8 | ||
| 7 | 77-2589 | COUPLING - flexible | 2 | |
| 8 | 77-2042 | SHAFT - blower | 2 | |
| 9 | 77-1959 | RING - inlet | 8 | |
| 55-5639 | SCREW - inlet ring | 20 | ||
| 10 | 77-1958 | WHEEL - blower | 4 | |
| 11 | 98-3991 | HOUSING - blower | 4 | |
| 12 | 55-1322 | PLUG - button | 4 | |
| 13 | 77-1221 | BEARING - flange | 2 | |
| 55-2961 | SCREW - bearing | 4 | ||
| 55-4543 | WASHER - spacer | 4 | ||
| 55-4955 | NUT | 4 | ||
| 14 | 91-3079 | BRACKET - blower housing | 4 | |
| 55-3583 | RIVET - bracket | 24 | ||
| 15 | 98-3990 | CHANNEL - blower (roadside) | 1 | |
| 55-2957 | SCREW - channel | 8 | ||
| 55-3045 | WASHER - dome | 8 | ||
| 16 | 98-4513 | FRAME - evaporator (before 9/00) | 1 | |
| 98-5889 | FRAME - evaporator (R3E M6A, after 8/00) | 1 | ||
| 98-5890 | FRAME - evaporator (R3E M6B, after 8/00) | 1 | ||
| 55-3059 | NUT - captive (1/4-20, ss) | 24 | ||
| 55-6863 | INSERT (1/4-20) | 26 | ||
| 55-7382 | INSERT - threaded (3/8-16, brass) | 4 | ||
| 17 | 91-3957 | SCREEN - blower | 4 |
