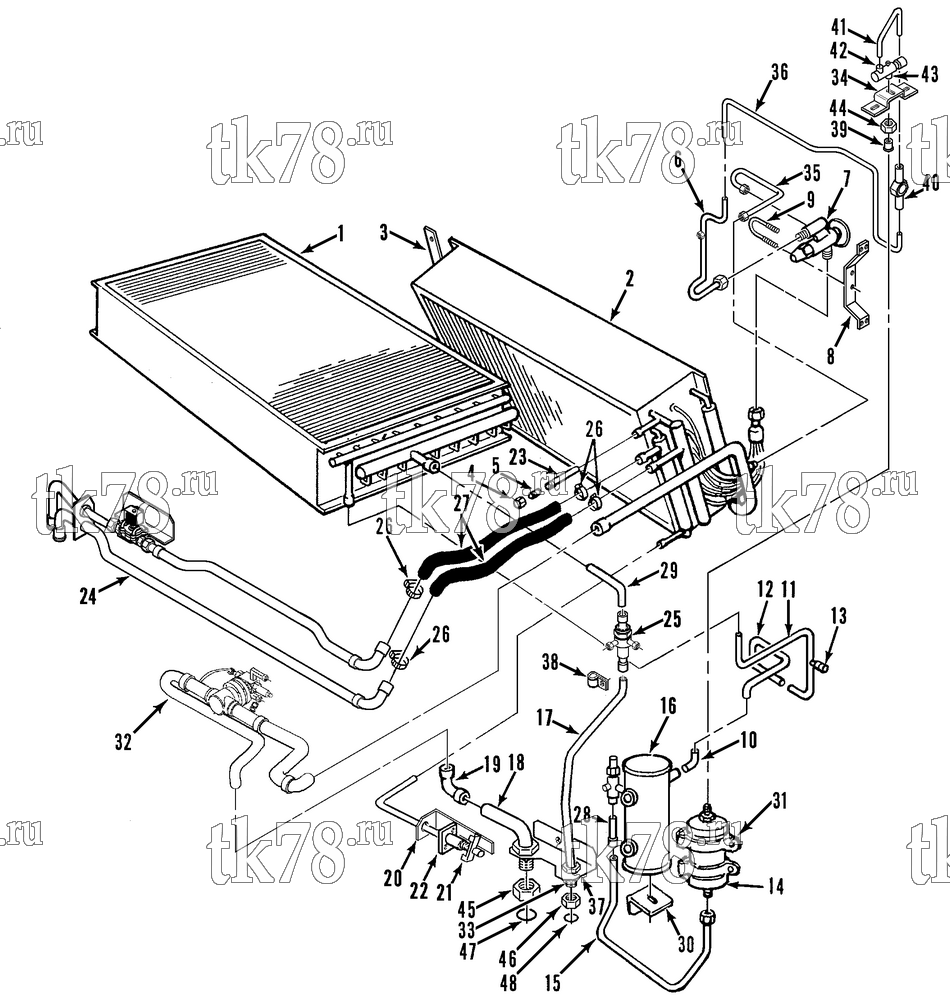

Установкa Thermo King схема REFRIGERATION COMPONENTS – 142E1
Обновление от: 3/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-688 | COIL - condenser | 1 | |
| 55-1587 | SCREW - coil | 8 | ||
| 55-4953 | NUT | 8 | ||
| 99-5966 | STRIP (rubber, 50 ft) | A/R | ||
| 2 | 67-718 | COIL - evaporator/heater | 1 | |
| 3 | 99-7803 | NUTSTRIP - coil | 2 | |
| 55-1714 | RIVET - strip | 4 | ||
| 55-2969 | SCREW - coil | 8 | ||
| 55-2958 | FLATWASHER | 16 | ||
| 55-4954 | NUT | 8 | ||
| 99-2996 | STRIP (rubber, 50 ft) | A/R | ||
| 33-1809 | GROMMET (1/2 id) | 3 | ||
| 33-489 | GROMMET (1-1/4 id) | 3 | ||
| 33-316 | GROMMET (1 id) | 2 | ||
| 33-367 | GROMMET (5/8 id) | 1 | ||
| 33-810 | GROMMET (3/4 id) | 2 | ||
| 4 | 11-2886 | VALVE (see 119G12) | 1 | |
| 5 | 66-3895 | TUBE - adapter (air bleed) | 1 | |
| 6 | 66-8829 | TUBE - bulkhead to expansion valve | 1 | |
| 7 | 66-7393 | VALVE - expansion (R22) | 1 | |
| 66-3592 | SCREEN - inlet | 1 | ||
| 66-4213 | ELEMENT - power | 1 | ||
| 8 | 99-7804 | BRACKET - expansion valve | 1 | |
| 9 | 55-5211 | U-BOLT - valve | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT - u-bolt | 2 | ||
| 55-2991 | SCREW - bracket | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT | 4 | ||
| 10 | 55-3248 | ELBOW - receiver inlet | 1 | |
| 11 | 66-8581 | TUBE - condenser to receiver | 1 | |
| 55-3295 | FITTING - saddle | 1 | ||
| 12 | 66-8582 | TUBE - bulkhead | 1 | |
| 13 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 14 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 55-3095 | SCREW - dehydrator | 2 | ||
| 55-4953 | NUT | 2 | ||
| 15 | 66-8583 | TUBE - receiver to dehydrator | 1 | |
| 16 | 67-2325 | TANK - receiver (see 128B13) | 1 | |
| 55-4955 | NUT - tank | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 17 | 66-8868 | TUBE - discharge | 1 | |
| 66-874 | FITTING (1/4 flare) | 1 | ||
| 18 | 66-5544 | TUBE - suction adapter | 1 | |
| 55-7537 | ADAPTER - suction | 1 | ||
| 19 | 66-3890 | TUBE - elbow | 1 | |
| 20 | 91-1884 | BRACKET - tube | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 21 | 55-5128 | DRAIN COCK | 1 | |
| 22 | 66-8578 | PLATE & TUBE - drain | 1 | |
| 23 | 66-3894 | TUBE - drain | 1 | |
| 24 | 67-1472 | TUBE - water line (see 142E5) | 1 | |
| 25 | 61-846 | VALVE - ball | 1 | |
| 26 | 91-2632 | CLAMP - hose | 4 | |
| 27 | 11-5965 | HOSE - water | 2 | |
| 55-3359 | CLAMP - mounting | 4 | ||
| 55-2977 | SCREW - clamp | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 28 | 66-5151 | TUBE - receiver tank outlet | 1 | |
| 29 | 66-8872 | TUBE - valve to coil | 1 | |
| 30 | 99-7349 | BRACKET - receiver | 2 | |
| 55-2977 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT - bracket | 4 | ||
| 31 | 55-2192 | HANGER - dehydrator | 2 | |
| 55-3675 | SCREW | 2 | ||
| 55-4953 | NUT | 2 | ||
| 55-2957 | SCREW - hanger | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-6526 | INSERT | 2 | ||
| 32 | 66-8869 | TUBE & VALVE | 1 | |
| 66-5136 | VALVE - epr (see 129C13) | 1 | ||
| 33 | 66-5247 | ADAPTER - bulkhead (#16) | 1 | |
| 34 | 91-7826 | BRACKET - valve | 1 | |
| 35 | 66-3878 | TUBE - equalizer | 1 | |
| 36 | 66-8827 | TUBE - bulkhead to indicator | 1 | |
| 37 | 91-1883 | BRACKET - adapter | 1 | |
| 38 | 91-5114 | CLAMP - tube | 1 | |
| 55-3675 | SCREW - clamp | 1 | ||
| 55-3059 | NUT - captive | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 39 | 55-6837 | SLEEVE | 1 | |
| 40 | 66-1188 | INDICATOR - liquid | 1 | |
| 41 | 66-8584 | TUBE - valve to sight glass | 1 | |
| 42 | 66-8586 | VALVE - shutoff | 1 | |
| 43 | 66-8585 | TUBE | 1 | |
| 44 | 55-6838 | NUT | 1 | |
| 45 | 55-5739 | NUT - bulkhead (#20) | 1 | |
| 55-5742 | LOCKWASHER - bulkhead (1.75 id) | 1 | ||
| 46 | 55-5740 | NUT - bulkhead (#16) | 1 | |
| 55-5741 | LOCKWASHER - bulkhead (1.5 id) | 1 | ||
| 47 | 33-1777 | O-RING - suction adapter | 1 | |
| 48 | 33-1785 | O-RING - discharge adapter | 1 |
