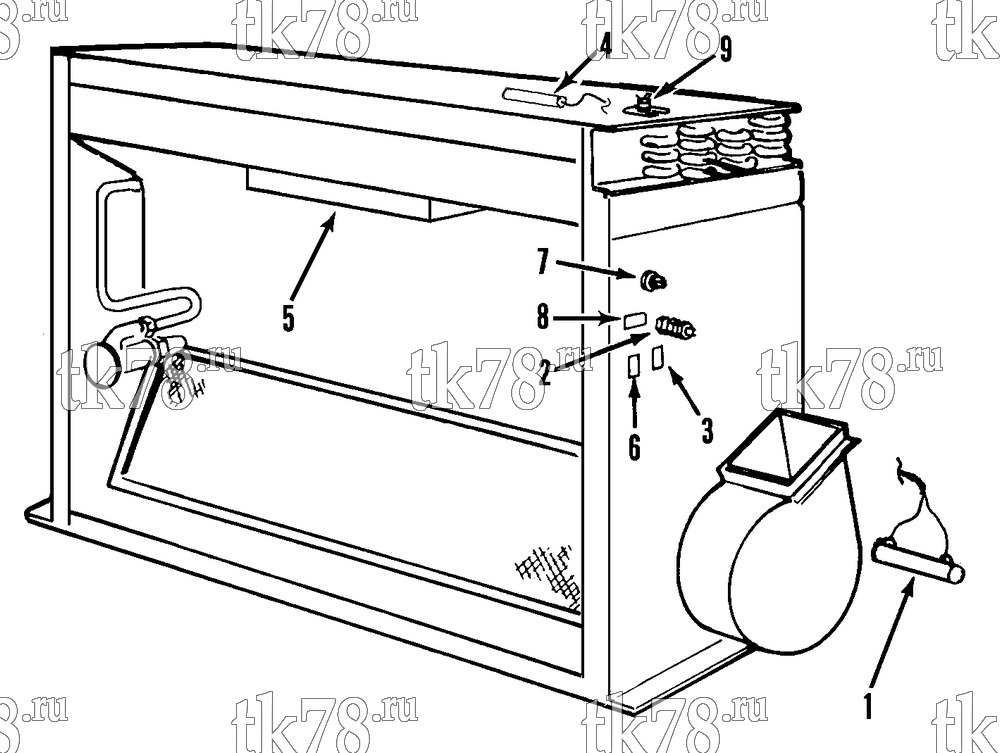

Установкa Thermo King схема ELECTRICAL COMPONENTS – 141D10
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-6348 | RESISTOR - evaporator motor (Ohio motor) | 1 | |
| 55-2991 | SCREW - resistor | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 2 | 55-3167 | STUD - terminal (negative) | 1 | |
| 55-448 | FLATWASHER (brass) | 4 | ||
| 55-3672 | LOCKWASHER (brass) | 1 | ||
| 55-3066 | LOCKWASHER (brass) | 4 | ||
| 55-671 | NUT (brass) | 4 | ||
| 3 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 4 | 40-975 | KIT - temperature sensor (ambient air) | 2 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 40-975 | SENSOR - ungraded | 1 | ||
|
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 55-3484 | CLAMP | 1 | ||
| 55-5636 | SCREW - thermostat | 2 | ||
| 55-5656 | SCREW - bracket | 2 | ||
| 5 | NSS | PANEL - control | 1 | |
| 6 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 7 | 55-3167 | STUD - terminal (positive) | 1 | |
| 55-5901 | WASHER - shoulder | 1 | ||
| 55-5902 | FLATWASHER | 1 | ||
| 55-671 | NUT | 4 | ||
| 55-448 | FLATWASHER (brass) | 4 | ||
| 55-3066 | LOCKWASHER (brass) | 4 | ||
| 8 | 99-2477 | NAMEPLATE - 24 Volt | 1 | |
| 9 | 44-5034 | SWITCH - ambient thermostat | 1 |
