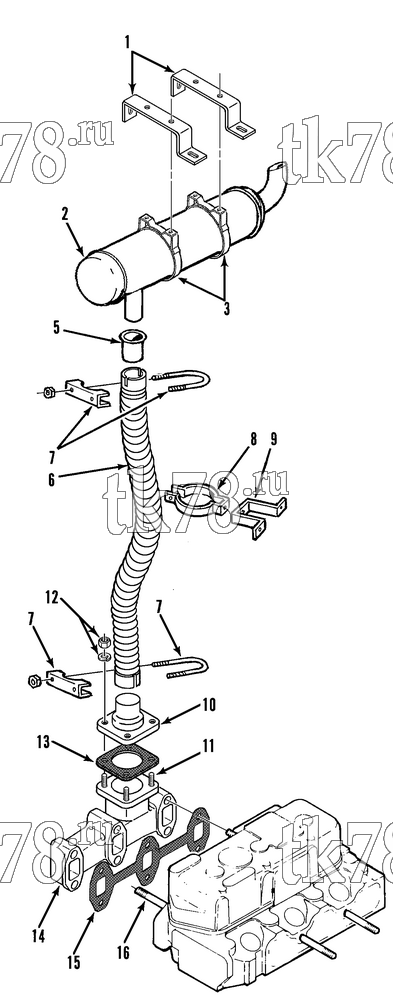

Установкa Thermo King схема MUFFLER GROUP – 141A13
Обновление от: 8/13/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-8086 | BRACKET - muffler | 2 | |
| 55-6994 | SCREW - bracket | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-8849 | NUT - captive | 2 | ||
| 2 | 12-430 | MUFFLER | 1 | |
| 3 | 11-5559 | CLAMP - muffler | 2 | |
| 4 | 55-7035 | SCREW - clamp | 4 | |
| 55-7042 | NUT | 4 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 5 | 11-5266 | SLEEVE - exhaust | 1 | |
| 6 | 12-442 | HOSE - exhaust (31.5 in) | 1 | |
| 11-5717 | SLEEVE - heat resistant | 1 | ||
| 7 | 55-4899 | CLAMP - muffler (1-7/8) | 1 | |
| 99-454 | CLAMP - muffler (1-3/4) | 1 | ||
| 8 | 91-3914 | HANGER - hose | 1 | |
| 55-7035 | SCREW - clamping hose | 1 | ||
| 55-7172 | SCREW - hanger to bracket | 1 | ||
| 55-6995 | FLATWASHER | 3 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7042 | NUT | 1 | ||
| 9 | 91-5474 | BRACKET - exhaust | 1 | |
| 55-7681 | NUT - captive | 1 | ||
| 55-2490 | SCREW - bracket | 2 | ||
| 10 | 11-7675 | FLANGE & TUBE - exhaust | 1 | |
| 11 | 55-6184 | STUD - flange | 4 | |
| 12 | 55-6186 | NUT - manifold | 4 | |
| 55-6183 | LOCKWASHER | 4 | ||
| 13 | 33-1907 | GASKET - muffler | 1 | |
|
10-33-1907 | Прокладка глушителя, Yanmar 388 / 395 | 1 070 ₽ |
|
| 14 | 11-7740 | MANIFOLD - exhaust (see 141A14) | 1 | |
| 15 | 33-1906 | GASKET - exhaust | 1 | |
|
33-1906 OEM | Прокладка выпускного коллектора, Yanmar 3.88 / 3.95 | 1 920 ₽ |
|
| 16 | 55-6383 | STUD - manifold | 2 |
