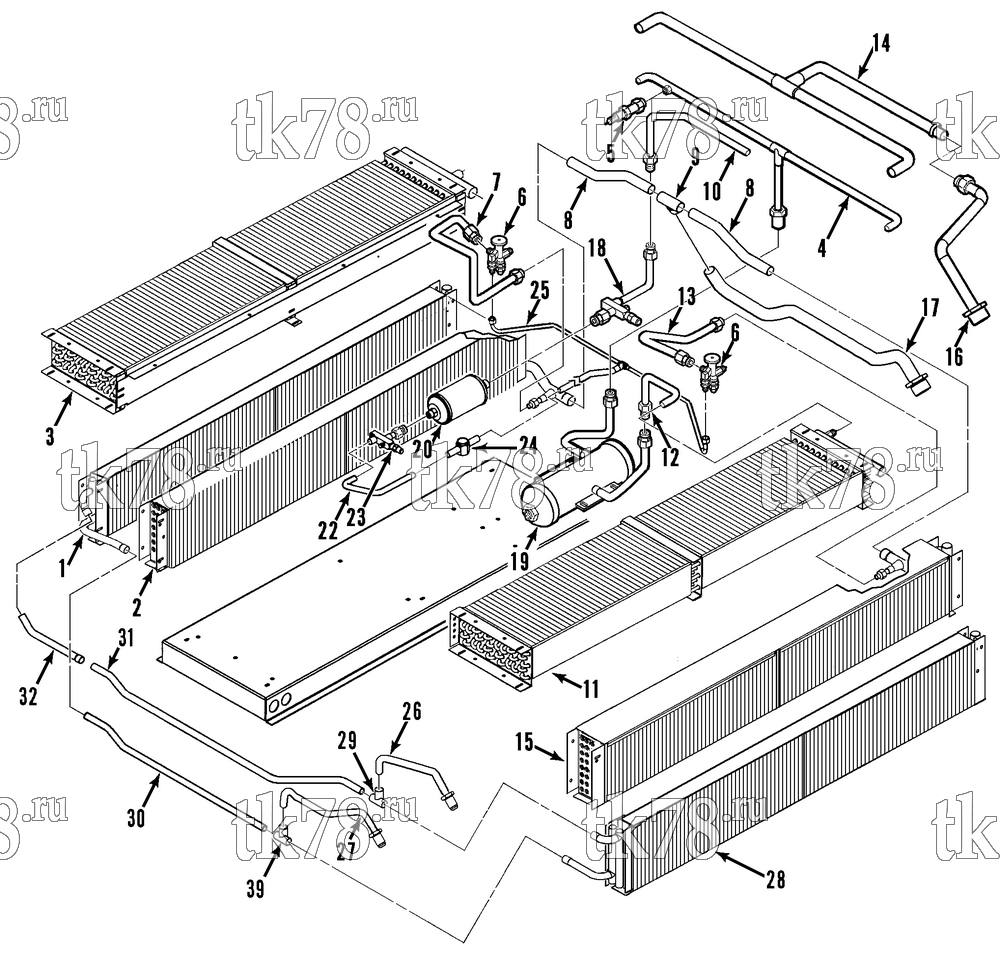

Установкa Thermo King схема REFRIGERATION COMPONENTS (M3) – 140G7
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1481 | COIL - heater (curbside) | 1 | |
| 2 | 67-1479 | COIL - evaporator (curbside) | 1 | |
| 3 | 67-1477 | COIL - condenser (curbside) | 1 | |
| 99-2221 | STRIP - gasket (50 ft) | A/R | ||
| 55-1587 | SCREW - coil | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-6526 | INSERT | 12 | ||
| 4 | 66-8910 | TUBE - condenser coil to fitting | 1 | |
| 55-9699 | ADAPTER (#12) | 1 | ||
| 99-3060 | FITTING - saddle | 1 | ||
| 55-7199 | LOCKWASHER | 1 | ||
| 55-6812 | NUT - adapter | 1 | ||
| 91-8327 | BRACKET - tube | 2 | ||
| 55-1587 | SCREW | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-6526 | INSERT | 2 | ||
| 91-758 | CLAMP - tube | 2 | ||
| 55-3675 | SCREW | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 5 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 6 | 66-7531 | VALVE - expansion | 2 | |
| 61-811 | SCREEN - inlet | 1 | ||
| 66-7401 | ELEMENT - power | 1 | ||
| 55-5211 | U-BOLT | 2 | ||
| 91-8328 | BRACKET - expansion valve (roadside) | 1 | ||
| 91-8329 | BRACKET - expansion valve (curbside) | 1 | ||
| 55-1587 | SCREW | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-6526 | INSERT | 2 | ||
| 7 | 66-8915 | TUBE - equalizer (curbside) | 1 | |
| 55-303 | NUT | 1 | ||
| 8 | 66-8916 | TUBE - suction | 2 | |
| 9 | 55-3107 | TEE | 1 | |
| 10 | 66-8912 | TUBE - subcool to fitting | 1 | |
| 55-7199 | LOCKWASHER | 1 | ||
| 55-6812 | NUT - adapter | 1 | ||
| 11 | 67-1476 | COIL - condenser (roadside) | 1 | |
| 55-1587 | SCREW | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-6526 | INSERT | 6 | ||
| 12 | 66-8911 | TUBE - fitting to subcool | 1 | |
| 55-7199 | LOCKWASHER | 1 | ||
| 55-6812 | NUT - adapter | 1 | ||
| 13 | 66-8914 | TUBE - equalizer (roadside) | 1 | |
| 55-303 | NUT | 1 | ||
| 14 | 66-8909 | TUBE - discharge fitting to condenser coil | 1 | |
| 55-7537 | ADAPTER (#20) | 1 | ||
| 33-920 | O-RING | 1 | ||
| 55-5742 | LOCKWASHER | 1 | ||
| 55-5739 | NUT (#20) | 1 | ||
| 33-2790 | WASHER - sealing | 1 | ||
| 15 | 67-1478 | COIL - evaporator (roadside) | 1 | |
| 55-1587 | SCREW | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-6526 | INSERT | 4 | ||
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 16 | 66-8908 | TUBE - discharge | 1 | |
| 55-7537 | ADAPTER - bulkhead (#20) | 1 | ||
| 55-5939 | SLEEVE (#20) | 1 | ||
| 55-5935 | NUT - shoulder | 1 | ||
| 55-5742 | LOCKWASHER | 1 | ||
| 55-5739 | NUT (#20) | 1 | ||
| 17 | 66-8917 | TUBE - suction | 1 | |
| 55-6570 | ADAPTER | 1 | ||
| 55-5999 | LOCKWASHER | 1 | ||
| 55-5996 | NUT | 1 | ||
| 18 | 66-8592 | TUBE - tee to drier | 1 | |
| 55-6356 | SHOULDER | 1 | ||
| 55-6396 | NUT | 1 | ||
| 55-7052 | SLEEVE | 1 | ||
| 66-7899 | VALVE - shutoff | 1 | ||
| 55-7054 | NUT | 1 | ||
| 33-2193 | O-RING | 1 | ||
| 55-2963 | SCREW | 1 | ||
| 19 | 67-1482 | TANK - receiver | 1 | |
| 20 | 61-600 | DRIER | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 33-566 | O-RING (1/2) | 1 | ||
| 33-2115 | O-RING (5/8) | 1 | ||
| 21 | 55-2192 | HANGER | 1 | |
| 55-2977 | SCREW - hanger | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-6526 | INSERT | 1 | ||
| 55-2979 | SCREW (close hanger) | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-4953 | NUT | 1 | ||
| 22 | 66-8913 | TUBE - drier to expansion valve | 1 | |
| 55-2182 | BUSHING | 1 | ||
| 55-6838 | NUT | 1 | ||
| 23 | 66-7899 | VALVE - shutoff | 1 | |
| 55-6837 | SHOULDER | 1 | ||
| 24 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 25 | 55-7142 | TEE | 1 | |
| 55-373 | NUT | 2 | ||
| 55-2963 | SCREW | 1 | ||
| 26 | 66-8924 | TUBE - water (outlet) | 1 | |
| 27 | 66-8920 | TUBE - water (inlet) | 1 | |
| 55-7199 | LOCKWASHER | 1 | ||
| 55-8973 | NUT | 1 | ||
| 28 | 67-1480 | COIL - heater (roadside) | 1 | |
| 55-7199 | LOCKWASHER | 1 | ||
| 55-8973 | NUT | 1 | ||
| 55-1587 | SCREW - mount coil | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-6526 | INSERT | 2 | ||
| 99-2221 | STRIP - gasket (50 ft) | A/R | ||
| 29 | 55-5401 | TEE | 2 | |
| 30 | 66-8921 | TUBE - water (tee to header) | 1 | |
| 31 | 66-8923 | TUBE - water (outlet, swage to tee) | 1 | |
| 32 | 66-8922 | TUBE - water (outlet, header to swage) | 1 | |
| 33-572 | GROMMET (0.75 id) | 4 | ||
| 33-629 | GROMMET (1.0 id) | 2 |
