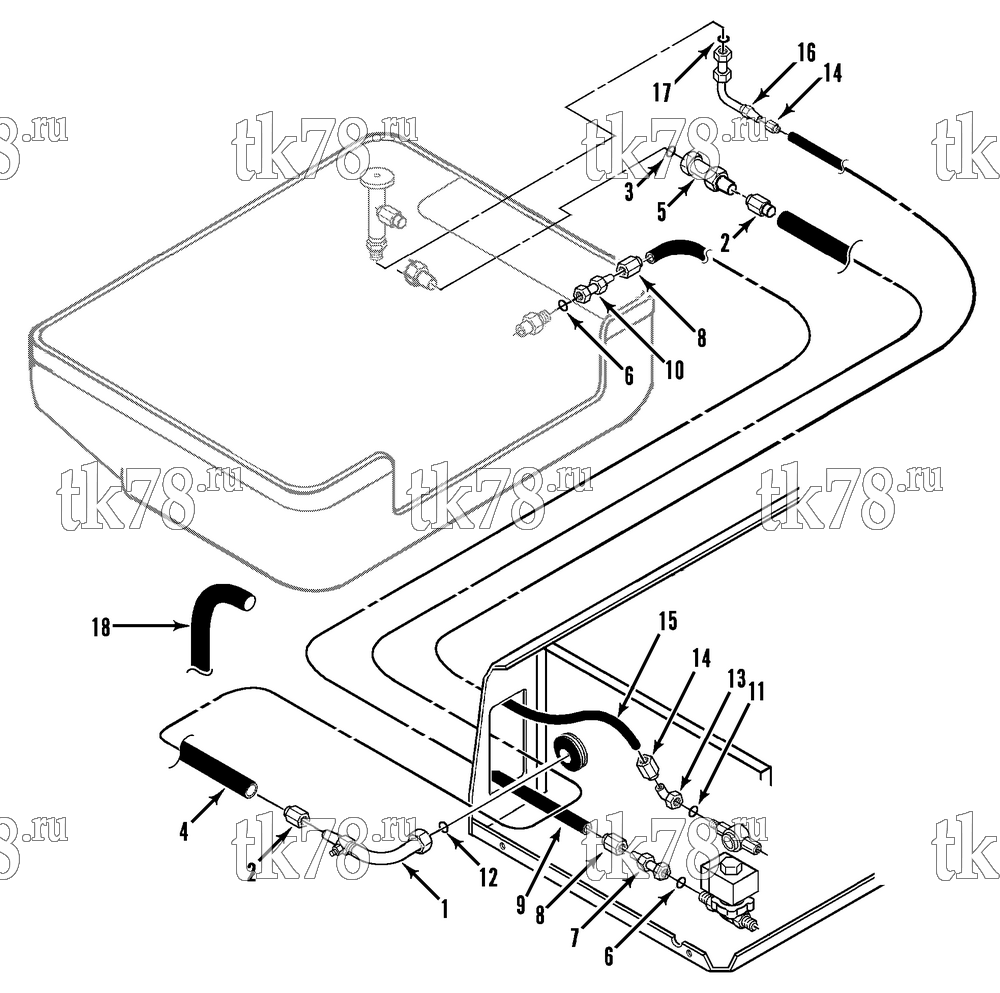

Установкa Thermo King схема REFRIGERANT HOSES & CONNECTORS – 140A12
Обновление от: 4/16/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-8841 | FITTING - suction (#8 to #10, 90) | 1 | |
| 2 | 55-8160 | NUT (#8) | 2 | |
| 3 | 33-566 | O-RING (#8) | 1 | |
| 4 | 12-680 | HOSE - suction (#8, 2.0m) | 1 | |
| 5 | 55-8170 | FITTING - suction (#8, straight) | 1 | |
| 6 | 33-1015 | O-RING (#6) | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 7 | 55-8155 | FITTING - defrost (#6, 90) | 1 | |
| 8 | 55-8159 | NUT (#8) | 2 | |
| 9 | 67-943 | HOSE - discharge (#6, 1.5 m) | 1 | |
| 10 | 55-8149 | FITTING - defrost (#6, straight) | 1 | |
| 11 | 33-1461 | O-RING (#4) | 1 | |
| 12 | 33-2695 | O-RING (#10) | 1 | |
| 13 | 55-8148 | FITTING - liquid (#4, straight) | 1 | |
| 14 | 55-8176 | NUT (#4) | 1 | |
| 15 | 12-825 | HOSE - liquid (#4, 1.5 m) | 1 | |
| 16 | 55-8239 | FITTING - liquid (#4, 90) | 1 | |
| 17 | 55-8240 | GASKET (3/8) | 1 | |
| 18 | 11-8529 | HOSE - drain | 1 |
