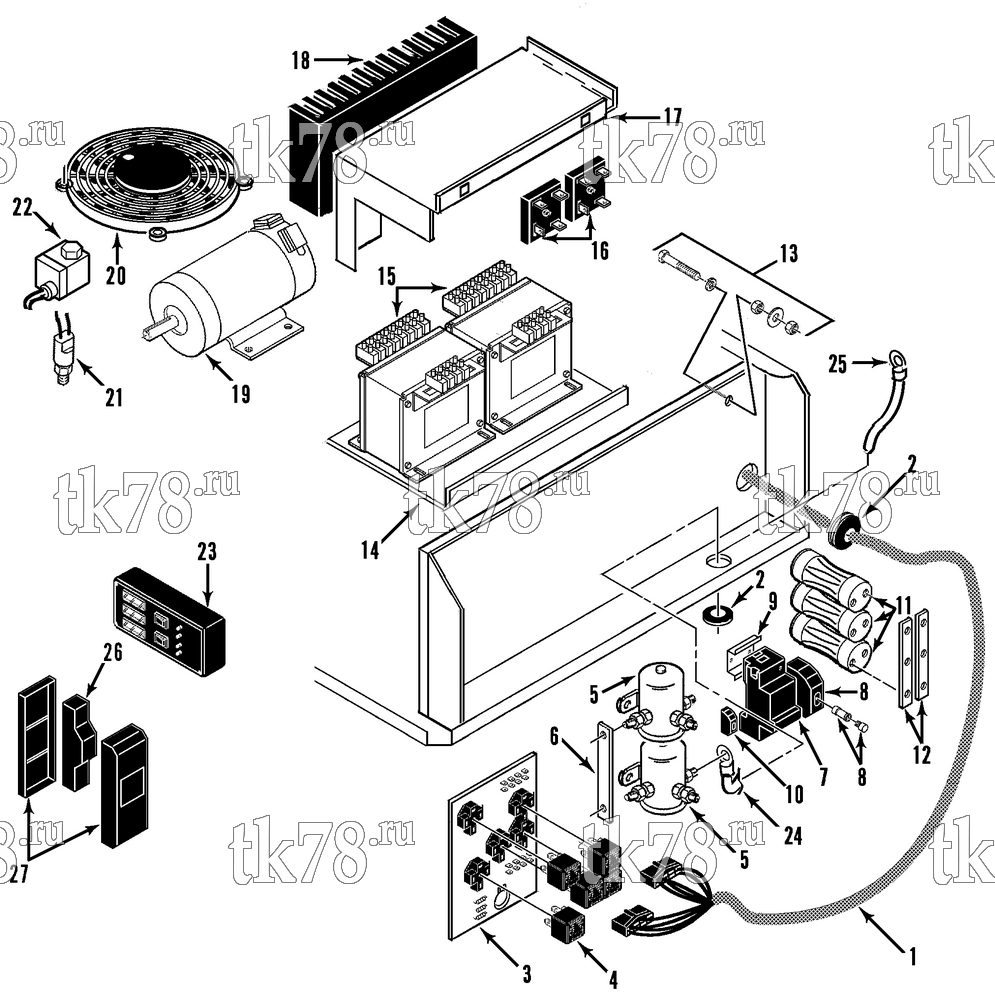

Установкa Thermo King схема ELECTRICAL COMPONENTS (B-085) – 140A11
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-2093 | HARNESS - condenser | 1 | |
| 2 | 33-2656 | GROMMET - harness | 3 | |
| 3 | 41-2095 | BOARD - pc (12V) | 1 | |
| 41-2099 | BOARD - pc (24V) | 1 | ||
| 55-8839 | SCREW - pc board | 5 | ||
| 4 | 41-895 | RELAY (12V) | 5 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 41-3707 | RELAY - mini (24V) | 5 | ||
| 5 | 41-3990 | RELAY - solenoid (12V) | 2 | |
| 41-911 | RELAY - solenoid (24V) | 2 | ||
| 55-7340 | SCREW - relay | 4 | ||
| 55-9826 | FLATWASHER | 4 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 55-7367 | NUT | 4 | ||
| 6 | 91-8027 | BUSBAR | 1 | |
| 7 | 41-1207 | BREAKER - circuit | 1 | |
| 8 | 41-942 | CONNECTOR - fuse | 1 | |
| 41-5863 | FUSE (5 amp) | 1 | ||
| 9 | 91-6317 | BRACKET - circuit breaker | 1 | |
| 55-8213 | RIVET - bracket | 2 | ||
| 10 | 41-898 | CONNECTOR - end | 2 | |
| 11 | 41-3787 | CAPACITOR | 3 | |
| 12 | 91-8026 | BUSBAR | 2 | |
| 13 | 55-8528 | SCREW - ground | 1 | |
| 55-8529 | FLATWASHER | 2 | ||
| 55-8530 | NUT | 2 | ||
| 14 | 91-8025 | BASE - transformer | 1 | |
| 15 | 41-5049 | TRANSFORMER | 2 | |
| 55-8522 | SCREW - transformer & base | 12 | ||
| 55-7404 | LOCKWASHER | 12 | ||
| 55-9826 | FLATWASHER | 12 | ||
| 16 | 41-962 | DIODE | 2 | |
| 55-7404 | SCREW - diode | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-9826 | FLATWASHER | 2 | ||
| 17 | 91-8028 | COVER - transformer | 1 | |
| 18 | 91-8029 | HEATSINK | 1 | |
| 55-8540 | SCREW - cover & heatsink | 7 | ||
| 55-7861 | LOCKWASHER | 7 | ||
| 55-7697 | FLATWASHER | 7 | ||
| 19 | 104-704 | MOTOR - compressor (12V, see 140A7) | 1 | |
| 41-2723 | MOTOR - compressor (24V, see 140A7) | 1 | ||
| 40-749 | KIT - brushes (12 & 24V motors) | 1 | ||
| 20 | 78-1346 | MOTOR & FAN (12V, see 140A6) | 1 | |
| 78-1182 | MOTOR & FAN (24V, see 140A6) | 1 | ||
| 21 | 44-5305 | SWITCH - hpco | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 22 | 41-5047 | COIL (12V, see 140A8) | 1 | |
| 41-5051 | COIL - valve (24V, see 140A8) | 1 | ||
| 23 | 45-1771 | BOX - cab control | 1 | |
| 24 | 45-1770 | CABLE - battery (red) | 1 | |
| 25 | 41-2082 | CABLE - battery (black) | 1 | |
| 26 | 41-1207 | BREAKER - circuit (60 amp, 24V) | 1 | |
| 41-4471 | BREAKER - circuit (12V, 80A) | 1 | ||
| 27 | 91-6686 | COVER - breaker (for 41-1207) | 1 | |
| 91-8042 | COVER - breaker (for 41-2107) | 1 |
