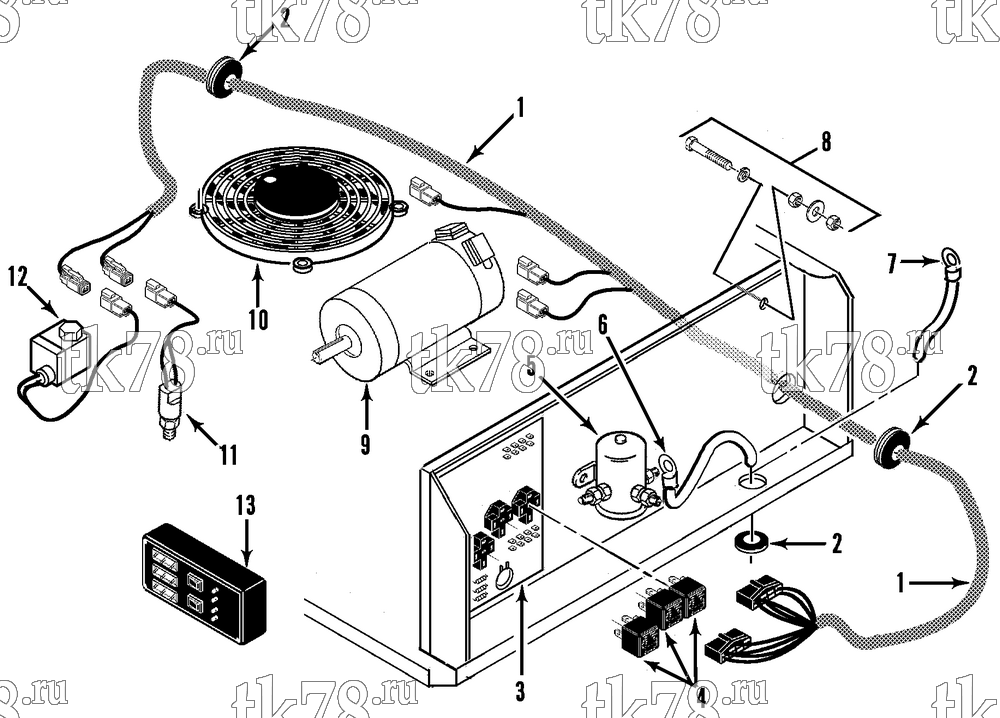

Установкa Thermo King схема ELECTRICAL COMPONENTS (B-080) – 140A10
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-2080 | HARNESS - condenser | 1 | |
| 2 | 33-2656 | GROMMET - harness | 3 | |
| 3 | 41-2092 | BOARD - pc (12V) | 1 | |
| 41-2086 | BOARD - pc (24V) | 1 | ||
| 4 | 41-895 | RELAY - mini (12V) | 3 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 41-3707 | RELAY - mini (24V) | 3 | ||
| 5 | 41-3990 | RELAY - solenoid (12V) | 1 | |
| 41-911 | SOLENOID (24V) | 1 | ||
| 55-7340 | SCREW - relay | 2 | ||
| 55-9826 | FLATWASHER | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7367 | NUT | 2 | ||
| 6 | 45-1770 | CABLE - battery (red) | 1 | |
| 7 | 41-2082 | CABLE - battery (black) | 1 | |
| 8 | 55-8528 | SCREW - ground | 1 | |
| 55-8529 | FLATWASHER | 2 | ||
| 55-8530 | NUT | 2 | ||
| 9 | 104-704 | MOTOR (12V, see 140A7) | 1 | |
| 41-2723 | MOTOR (24V, see 140A7) | 1 | ||
| 40-749 | KIT - brushes (12 & 24V) | 1 | ||
| 10 | 78-1346 | MOTOR & FAN (12V, see 140A6) | 1 | |
| 78-1182 | MOTOR & FAN (24V, see 140A6) | 1 | ||
| 11 | 44-5305 | SWITCH - hpco | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 12 | 41-5047 | COIL (12V, see 140A8) | 1 | |
| 41-5051 | COIL - valve (24V, see 140A8) | 1 | ||
| 13 | 45-1771 | BOX - cab control | 1 |
