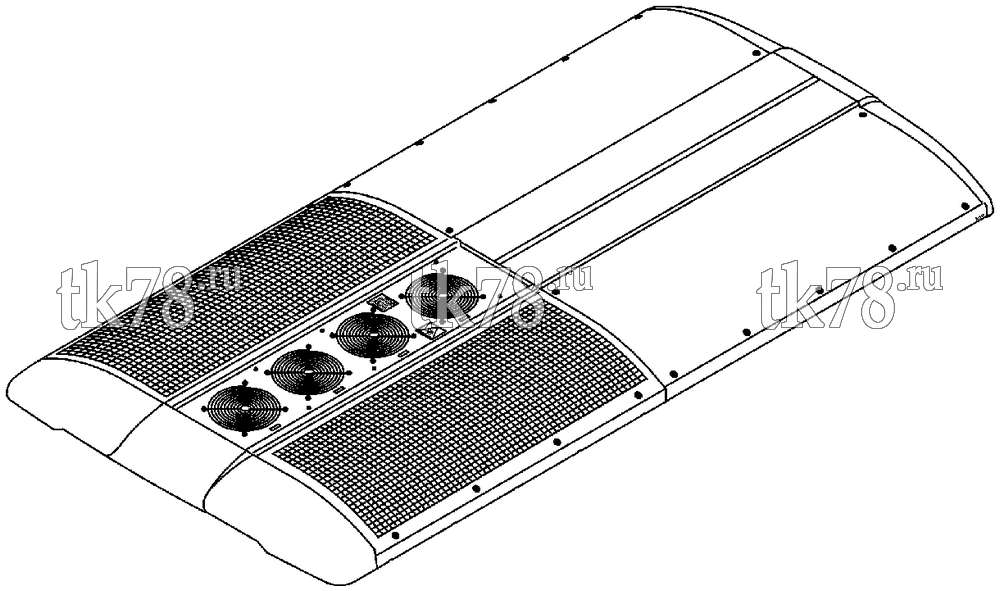

Установкa Thermo King схема KRS II PLUS REFERENCE SHEET – 13U77
Обновление от: 6/8/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 900992 | System - KRS II Plus 1000 | 12/08 | ||
| 901078 | System - KRS II Plus 1004 | 3/09 | ||
| 901079 | System - KRS II Plus 1000 | 3/09 | ||
| 007076 | Fresh Air Damper | 12/08 | ||
| 007234 | Electric Assembly 6+4 | 12/08 | ||
| 007237 | Electric Assembly 6+4 | 12/08 | ||
| 007279 | KRS Evaporator R134a 1000 | 3/09 | ||
| 007408 | KRS Evaporator R134a 1004 | 3/09 | ||
| 007488 | KRS Condenser | 12/08 | ||
| 007726 | ClimaAIRE Control System | 12/08 | ||
| 007866 | ClimaAIRE Control System | 12/08 | ||
| 008019 | Control System | 12/08 | ||
| 099058 | Fuse Kit | 12/08 | ||
| 099281 | Cover Fresh Air | 12/08 | ||
| 099362 | MRT Damper Electric | 12/08 | ||
| 099919 | LRT III 1000/1004 Electrical | 12/08 | ||
| 700107 | Kit - Hose | 12/08 | ||
| 700108 | Kit - Tube Fittings | 12/08 | ||
| 700115 | SmartAIRE w/ Harness 12 m | 12/08 | ||
| 700127 | Water Valve Harness 10 M | 12/08 | ||
| 700128 | Water Valve Harness 20 M | 12/08 | ||
| 700129 | Water Valve | 12/08 | ||
| 700389 | Air Grille | 12/08 | ||
| 700340 | Yanmar Engine w/Power Pak | 12/08 | ||
| 700421 | SmartAIRE w/ Harness 18.3 m | 12/08 | ||
| 700475 | Kit - Hose R134a | 12/08 | ||
| 700476 | Kit - Hose R134a | 12/08 | ||
| 700477 | Kit - Hose R134a | 12/08 | ||
| 700500 | Copper Tube Fittings Option | 12/08 | ||
| 700606 | Battery Cables | 12/08 | ||
| 700627 | Compressor - X430 - HPC Long Pulley | 12/08 | ||
| 700702 | Compressor - Bitzer 4NFCY, 24V | 12/08 | ||
| 700780 | Kit - Grille Air Filter | 12/08 | ||
| 700887 | Kit - Hose R134a | 12/08 | ||
| 700888 | Kit - Hose R134a | 12/08 | ||
| 700889 | ClimaAIRE Harness 12 M | 12/08 | ||
| 700891 | Alternator | 12/08 | ||
| 700910 | Tube Connectors | 12/08 | ||
| 701068 | Heat with Valve | 12/08 | ||
| 701146 | Heat w/o Valve | 12/08 | ||
| 701189 | Compressor Copeland 2 - ZR6 | 12/08 | ||
| 701192 | Compressor - X430 - HPC 24V | 2/10 | ||
| 701195 | Compressor - Bitzer 4NFCY, 24V | 2/10 | ||
| 701330 | Hose Kit 20 M | 12/08 | ||
| 701332 | Alternator ClimaAIRE 24V, 150 Amp | 12/08 | ||
| 701352 | Front Box KRS | 12/08 | ||
| 701377 | Kit - Hose R134a | 12/08 | ||
| 701459 | Power Pack | 12/08 | ||
| 701460 | E-KRS Harness | 12/08 | ||
| 701461 | Heater | 12/08 | ||
| 701479 | LPCS switch | 12/08 | ||
| 701482 | Compressor Harness 14 M | 12/08 | ||
| 701483 | Compressor Harness 16 M | 12/08 | ||
| 701484 | Compressor Harness 18.3 M | 12/08 | ||
| 701485 | SmartAIRE Harness 16 M | 12/08 | ||
| 701486 | SmartAIRE Harness 16 M | 12/08 | ||
| 701500 | ClimaAIRE Harness 12 M | 12/08 | ||
| 701551 | ClimaAIRE Harness 14 M | 12/08 | ||
| 701552 | Boost Pump Harness11 m | 12/08 | ||
| 701553 | Boost Pump Harness 14 m | 12/08 | ||
| 701555 | Power Pak Harness 14 M | 12/08 | ||
| 701560 | Copper Tube | 12/08 | ||
| 701578 | Hose Kit | 12/08 | ||
| 701564 | Boost Pump Harness24 m | 12/08 | ||
| 701581 | ClimaAIRE II Driver Panel | 12/08 | ||
| 701604 | Compressor-S391 R134a | 12/08 | ||
| 701633 | Compressor Harness 18 M | 12/08 | ||
| 701655 | Insulation Lining | 12/08 | ||
| 715247 | Muffler, Compressor | 12/08 | ||
| 719005 | Boost Pump | 12/08 | ||
| 719006 | Boost Pump Harness 14 m | 12/08 | ||
| 719007 | Boost Pump Harness 9 m | 12/08 | ||
| 719009 | ClimaAIRE Harness 18.3M | 12/08 | ||
| 719055 | Heat Pump 24 V | 12/08 | ||
| 719138 | ClimaAIRE II Harness 12M | 12/08 | ||
| 719300 | Harness Compressor ClimaAIRE 12 m | 12/08 | ||
| 719301 | Harness Compressor ClimaAIRE 12 m | 12/08 | ||
| 719305 | Alternator ClimaAIRE 24V, 150 Amp | 12/08 | ||
| 720171 | Muffler, Compressor w/o hose | 12/08 | ||
| 720428 | Compressor-S391 R134a | 12/08 | ||
| 720587 | Compressor - X430-HPC, 24V, Pulley, 8.03 / 8.90 OD | 12/08 | ||
| 800026 | Installation for KRT | 12/08 | ||
| 800186 | Rubber Plate | 12/08 | ||
| 880110 | Ports for X430 Compressor | 12/08 |
