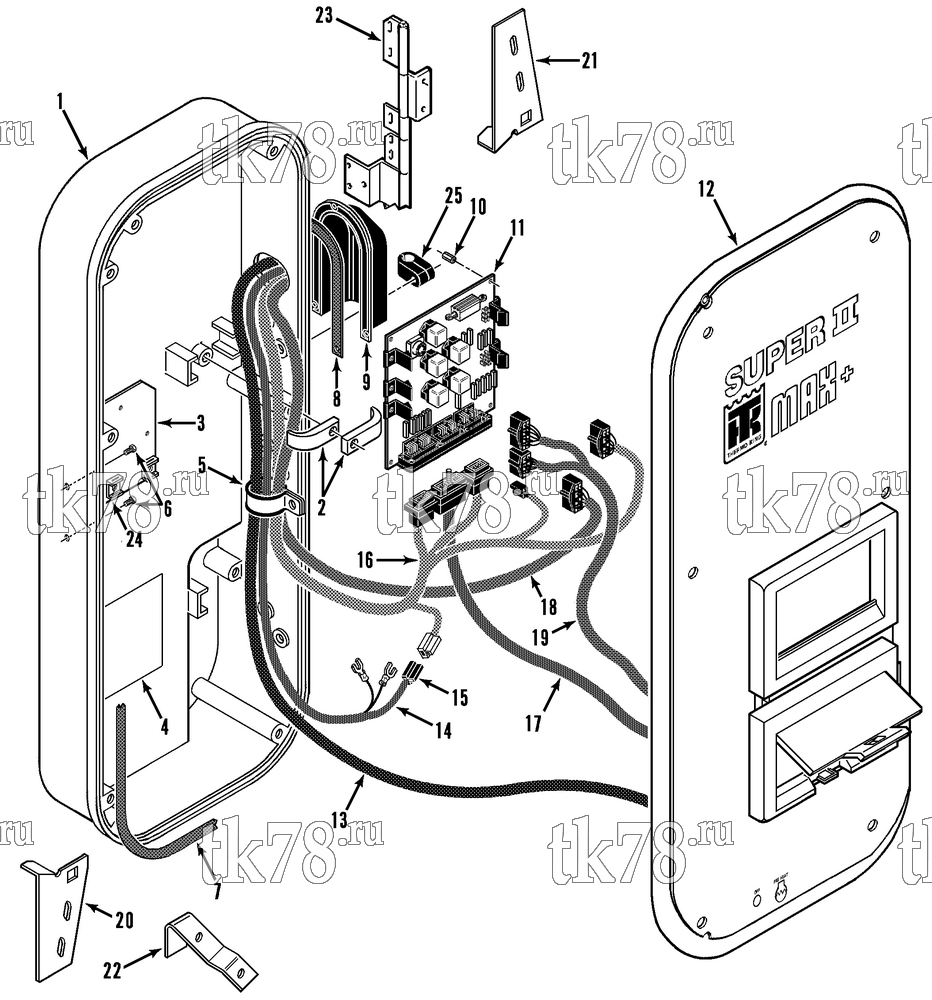

Установкa Thermo King схема CONTROL BOX (SUPER-II 50 MAX+ TG VI) – 139G3
Обновление от: 10/10/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4844 | BOX - control | 1 | |
| 2 | 91-1375 | CLAMP - harness | 2 | |
| 55-2979 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 3 | 91-6639 | PLATE - cable holddown | 1 | |
| 55-4222 | SCREW - plate | 3 | ||
| 55-2998 | LOCKWASHER | 3 | ||
| 4 | 91-6640 | NAMEPLATE - relay | 1 | |
| 5 | 55-5274 | CLAMP - harness | 1 | |
| 55-2979 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-4953 | NUT | 1 | ||
| 6 | 55-3015 | SCREW | 2 | |
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2752 | NUT | 2 | ||
| 7 | 33-2384 | GASKET - cover | 1 | |
| 8 | 33-2429 | GASKET - shield | 1 | |
| 9 | 91-4503 | COVER - harness | 1 | |
| 55-1587 | SCREW - cover | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 10 | 99-9889 | SPACER - standoff (relay board) | 5 | |
| 11 | 41-3411 | BOARD - relay (see 120E15) | 1 | |
| 55-4576 | SCREW - spacer & relay board | 10 | ||
| 55-2998 | LOCKWASHER | 10 | ||
| 12 | NSS | COVER - control box (see 139G8) | 1 | |
| 55-6351 | SCREW - cover | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 13 | 41-1154 | HARNESS - sensor (see 139G5) | 1 | |
| 14 | 41-2056 | HARNESS - alternator | 1 | |
| 15 | 44-6451 | CONNECTOR (1-pin, female) | 1 | |
| 16 | 41-2055 | HARNESS - main (see 139G6) | 1 | |
| 17 | 41-2054 | HARNESS - interconnecting (see 139G4) | 1 | |
| 18 | 41-2058 | HARNESS - electric control | 1 | |
| 19 | 41-2057 | HARNESS - switch (see 139G7) | 1 | |
| 41-7968 | HARNESS - switch (w/ Cycle Sentry, see 139G9) | 1 | ||
| 20 | 91-1971 | ANGLE - support (bottom) | 1 | |
| 21 | 91-1970 | ANGLE - support | 1 | |
| 55-2957 | SCREW - angle | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 22 | 91-1769 | STOP - control box | 1 | |
| 55-1587 | SCREW - stop | 1 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 23 | 91-3597 | HINGE - box & cover | 1 | |
| 55-1587 | SCREW - hinge | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 24 | 99-3281 | MOUNT - cable tie | 3 | |
| 25 | 91-3886 | CLAMP - tube | 1 | |
| 55-3462 | SCREW - clamp | 1 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 |
