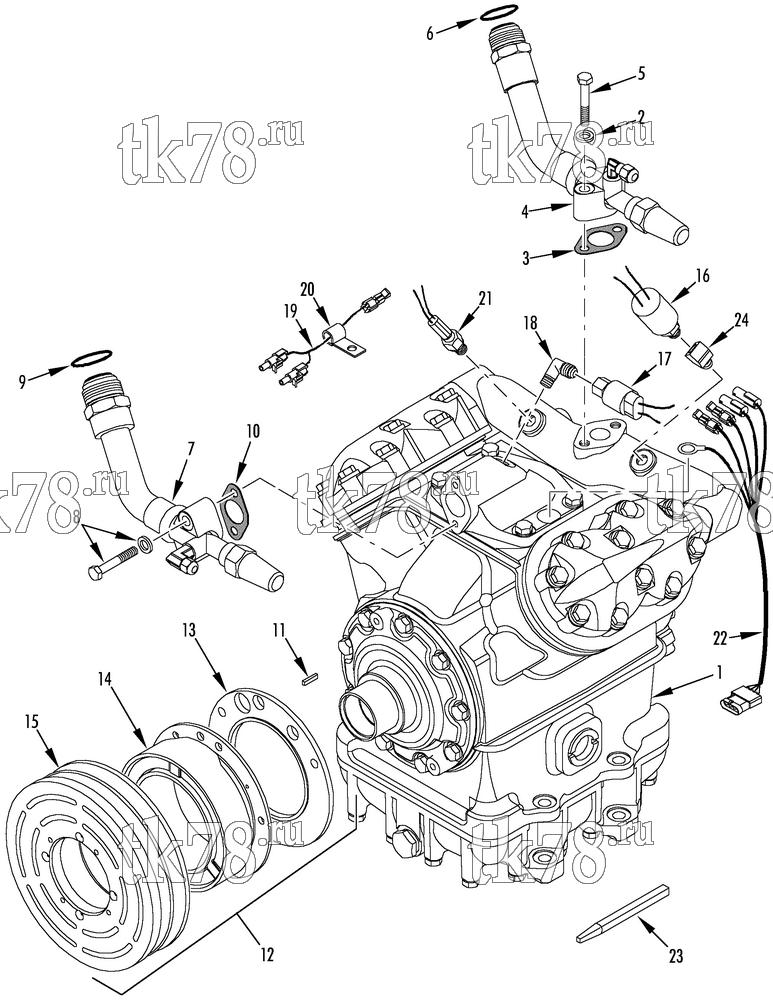

Установкa Thermo King схема COMPRESSOR GROUP (9180C29G08, KIT 715455) – 139F12
Обновление от: 9/19/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-916 | COMPRESSOR - X426 C5 (bus, see 230C5) | 1 | |
| 2 | 55-6804 | WASHER - sealing | 6 | |
| 3 | 33-2805 | GASKET - discharge valve | 3 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 4 | 66-7038 | TUBE & VALVE - discharge (see 139F13) | 1 | |
| 5 | 55-6776 | SCREW - discharge valve | 2 | |
| 6 | 33-594 | O-RING | 1 | |
| 7 | 66-7039 | TUBE & VALVE - suction (see 139F14) | 1 | |
| 8 | 55-201 | SCREW - suction valve | 2 | |
| 55-895 | FLATWASHER | 2 | ||
| 9 | 33-544 | O-RING | 1 | |
| 10 | 33-2541 | GASKET - suction valve | 1 | |
| 11 | 55-9024 | KEY - coupling to compressor | 1 | |
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 12 | NSS | CLUTCH - assembly | 1 | |
| 107-150 | KIT - clutch drive repair (see 153E7) | 1 | ||
| 13 | 77-1083 | PLATE | 1 | |
| 14 | 45-271 | FIELD - clutch (24VDC) | 1 | |
| 15 | 77-1414 | PULLEY (3-3V grooves, 8.0 in od) | 1 | |
| 16 | 44-7814 | SWITCH - hpco (450 psi, for connectors see 115D14) | 1 | |
| 41-4523 | SWITCH - only | 1 | ||
|
41-4523 OEM | Выключатель высокого давления, SLX/SLXe | 15 650 ₽ |
|
| 10-41-4523 | Выключатель высокого давления, SLX/SLXe | 12 390 ₽ |
|
|
| 17 | 44-7813 | SWITCH - lpco (10 psi, for connectors see 115D14) | 1 | |
| 44-4338 | SWITCH - only | 1 | ||
| 18 | 55-308 | ELBOW | 1 | |
| 33-768 | GASKET - coupling | 1 | ||
| 19 | 41-2179 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 55-3024 | SCREW - ground | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 20 | 55-5261 | CLAMP - harness | 3 | |
| 21 | 41-3345 | SENSOR - high temperature (for connectors see 115D14) | 1 | |
| 41-5394 | SENSOR - only | 1 | ||
| 22 | 41-1236 | HARNESS - compressor | 1 | |
| 23 | 204-972 | TOOL - keyway alignment | 1 | |
| 24 | 55-1653 | ELBOW | 1 |
