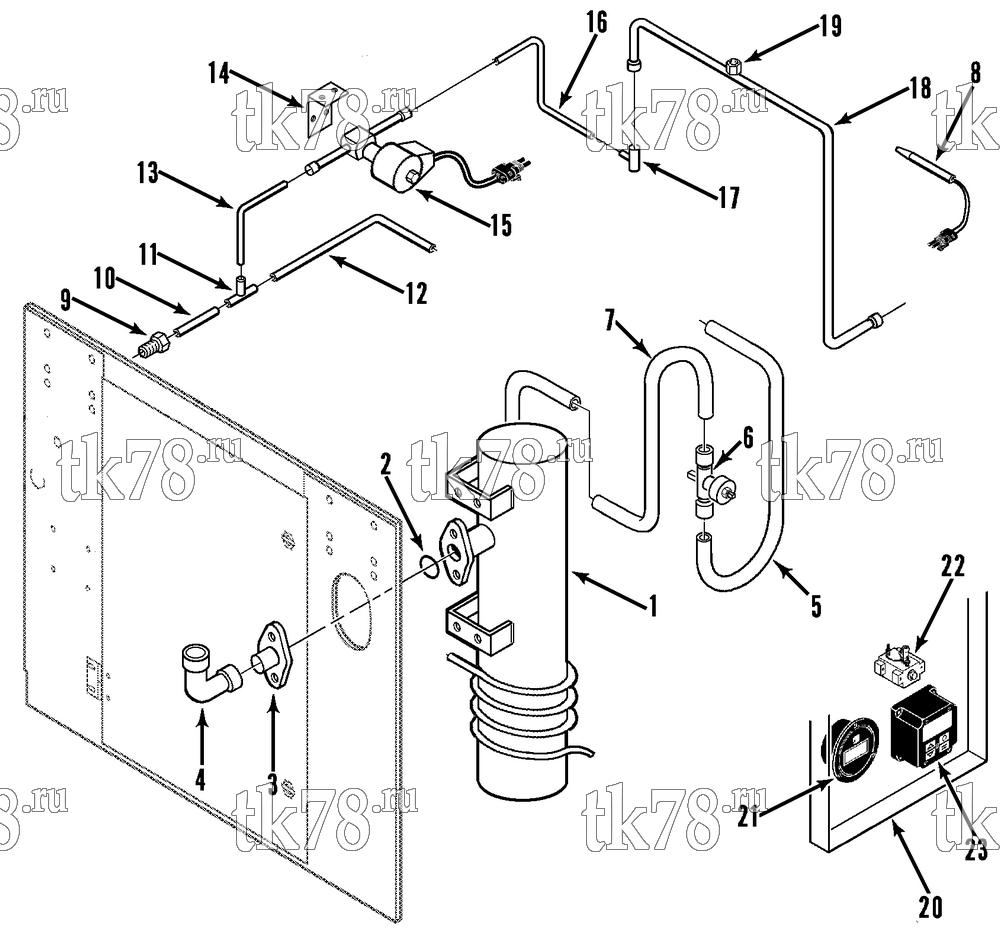

Установкa Thermo King схема MODULATION ASSEMBLY (OPTIONAL TG V) – 139A1
Обновление от: 2/13/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1436 | TANK - accumulator (see 108B1) | 1 | |
| 2 | 33-728 | O-RING - flange | 1 | |
| 33-728 OEM | Прокладка фланца компрессора, SB/URD-III / UT-800/1200 | 300 ₽ |
|
|
| 3 | 66-3687 | FLANGE - suction | 1 | |
| 55-2914 | SCREW - flange | 2 | ||
| 55-2173 | FLATWASHER | 2 | ||
| 55-4952 | NUT | 2 | ||
| 4 | 55-908 | ELBOW | 1 | |
| 5 | 66-8740 | TUBE - suction | 1 | |
| 6 | 66-8741 | VALVE - modulation | 1 | |
| 10-66-8741 | Клапан | 11 200 ₽ |
|
|
| 44-5175 | COIL | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 7 | 66-8786 | TUBE - valve to accumulator | 1 | |
| 8 | 41-419 | SENSOR - return & discharge air | 1 | |
| 9 | 55-6779 | ADAPTER - bulkhead | 1 | |
| 10 | 66-7089 | TUBE - hot gas | 1 | |
| 11 | 55-6434 | TEE | 1 | |
| 12 | 66-7090 | TUBE - hot gas | 1 | |
| 13 | 66-7091 | TUBE - valve solenoid to hot gas | 1 | |
| 14 | 91-5247 | BRACKET - solenoid valve | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 15 | 66-5374 | VALVE - solenoid (hot gas bypass, see 138A7) | 1 | |
| 44-5835 | CONNECTOR | 1 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 2 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 | ||
| 55-4523 | SCREW - coil | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 16 | 66-7092 | TUBE - compressor discharge to valve | 1 | |
| 17 | 55-3522 | TEE | 1 | |
| 55-7661 | BUSHING | 1 | ||
| 18 | 66-7093 | TUBE - discharge modulation | 1 | |
| 19 | 66-7094 | FITTING - saddle | 1 | |
| 20 | 91-5264 | DOOR - control box (front) | 1 | |
| 21 | 91-5249 | NAMEPLATE - front panel | 1 | |
| 22 | 44-6558 | BREAKER - circuit | 1 | |
| 23 | 45-1579 | THERMOSTAT - TG V | 1 | |
| 92-6219 | FACEPLATE - TG V (includes 91-4642 overlay) | 1 | ||
| 91-4642 | OVERLAY - TG V (transparent) | 1 | ||
| 91-5250 | NAMEPLATE - thermostat set | 1 |
