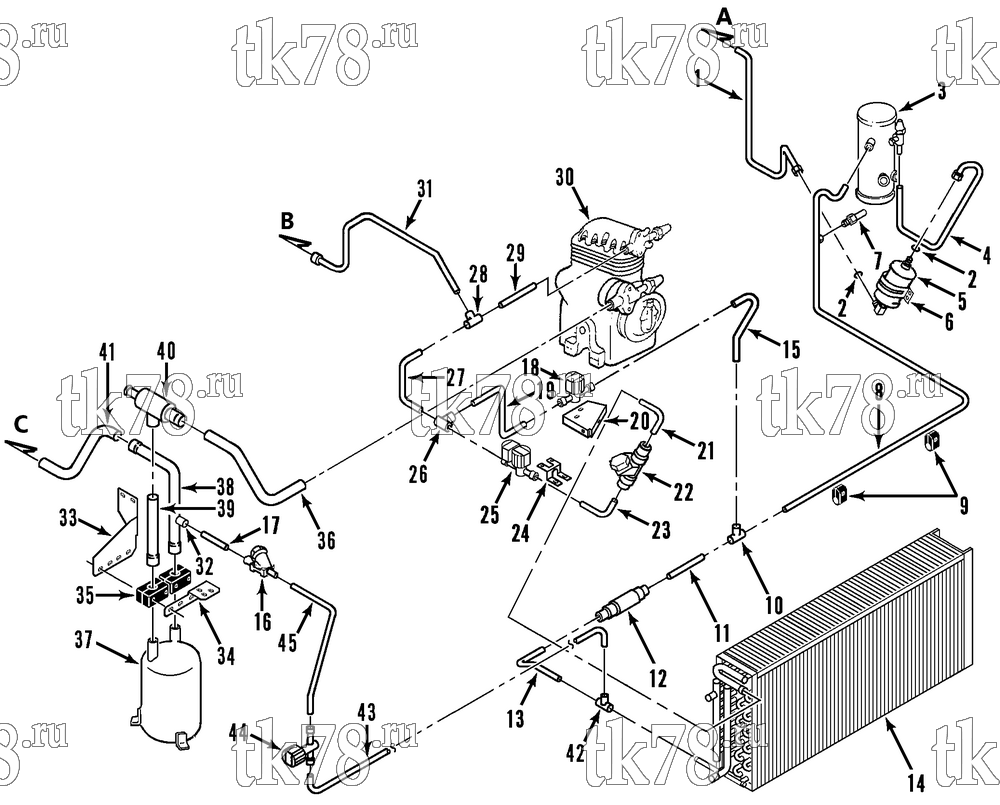

Установкa Thermo King схема REFRIGERATION - CONDENSER (MD-II TCI) – 138G7
Обновление от: 5/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-7228 | TUBE - dehydrator to bulkhead | 1 | |
| 55-8268 | SHOULDER - fitting (o-ring seal) | 1 | ||
| 55-8267 | NUT - shoulder | 1 | ||
| 2 | 33-1015 | O-RING - dehydrator | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 3 | 67-1180 | TANK - receiver (see 125F4) | 1 | |
| 4 | 66-7227 | TUBE - receiver to dehydrator | 1 | |
| 55-8268 | SHOULDER - fitting (o-ring seal) | 1 | ||
| 55-8267 | NUT - shoulder | 1 | ||
| 5 | 61-800 | DEHYDRATOR (o-ring seal, see 116F9) | 1 | |
|
10-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 2 550 ₽ |
|
|
PP-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 1 400 ₽ |
|
| 6 | 91-7602 | HANGER - dehydrator | 1 | |
| 7 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 8 | 66-7226 | TUBE - tee to receiver | 1 | |
| 55-3295 | FITTING - saddle | 1 | ||
| 9 | 55-6389 | CLAMP - tube | 4 | |
| 55-3121 | SCREW - clamp | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 10 | 55-2181 | TEE (1/2 x 1/2 x 3/8) | 1 | |
| 11 | 66-7222 | TUBE - check valve to tee | 1 | |
| 12 | 66-5722 | VALVE - check | 1 | |
| 13 | 66-7221 | TUBE - coil to valve | 1 | |
| 14 | 67-819 | COIL - condenser/radiator | 1 | |
| 99-9948 | NAMEPLATE - Pressure Vessel | 1 | ||
| 55-3059 | NUT - captive | 8 | ||
| 55-2977 | SCREW - coil | 10 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-4953 | NUT | 2 | ||
| 15 | 66-7605 | TUBE - tee to check valve | 1 | |
| 16 | 66-3653 | VALVE - check (see 9G12) | 1 | |
|
10-66-3653 | Проверочный клапан 1/4 | 10 160 ₽ |
|
| 17 | 66-7375 | TUBE - check valve to accumulator | 1 | |
| 18 | 66-5305 | VALVE - solenoid (see 116G10, for connectors see 115D14) | 1 | |
| 19 | 66-7223 | TUBE - solenoid to tee | 1 | |
| 20 | 91-7935 | BRACKET - solenoid valve | 1 | |
| 21 | 66-7219 | TUBE - check valve to coil | 1 | |
| 22 | 66-3789 | VALVE - check (see 106C14) | 1 | |
| 23 | 66-7218 | TUBE - solenoid to check valve | 1 | |
| 24 | 91-7496 | BRACKET - solenoid valve | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 25 | 66-8556 | VALVE - solenoid (for connectors see 115D14) | 1 | |
| 55-2989 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 26 | 55-6507 | TEE (5/8 x 5/8 x 3/8) | 1 | |
| 27 | 66-7217 | TUBE - tee to tee | 1 | |
| 28 | 66-620 | TEE (5/8 x 5/8 x 1/2) | 1 | |
| 29 | 66-7215 | TUBE - discharge valve to tee | 1 | |
| 30 | NSS | COMPRESSOR (see 138G3) | 1 | |
| 31 | 66-7216 | TUBE - defrost, tee to bulkhead | 1 | |
| 32 | 66-7377 | COUPLING - bypass tube | 1 | |
| 33 | 91-5586 | BRACKET - accumulator tank reinforce | 1 | |
| 34 | 91-8594 | BRACKET - solenoid valve | 1 | |
| 35 | 91-5143 | CLAMP - suction tube | 4 | |
| 55-3018 | SCREW - clamp | 4 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 36 | 66-8675 | TUBE - pressure regulator to suction valve | 1 | |
| 37 | 67-1403 | TANK - accumulator | 1 | |
| 38 | 66-6048 | TUBE - accumulator inlet | 1 | |
| 39 | 66-4620 | TUBE - accumulator outlet | 1 | |
| 40 | 61-4527 | VALVE - cpr | 1 | |
| 14-60052-02 OEM | Клапан KVL Ø 28мм, Maxima / Supra 5XX/8XX/850MT/9XX/950MT/1150/1150MT/1250/1250MT | 39 280 ₽ |
|
|
|
10-61-4527 | Клапан KVL Ø 28мм, MD/KD-II/MD-II/TS/T-Series | 27 760 ₽ |
|
| P-14-00205-01 | Клапан KVL Ø 28мм, Maxima / Supra 5XX/8XX/850MT/9XX/950MT/1150/1150MT/1250/1250MT | 27 760 ₽ |
|
|
| 61-4527 | VALVE - cpr | 1 | ||
| 14-60052-02 OEM | Клапан KVL Ø 28мм, Maxima / Supra 5XX/8XX/850MT/9XX/950MT/1150/1150MT/1250/1250MT | 39 280 ₽ |
|
|
| P-14-00205-01 | Клапан KVL Ø 28мм, Maxima / Supra 5XX/8XX/850MT/9XX/950MT/1150/1150MT/1250/1250MT | 27 760 ₽ |
|
|
|
|
10-61-4527 | Клапан KVL Ø 28мм, MD/KD-II/MD-II/TS/T-Series | 27 760 ₽ |
|
| 61-2285 | COUPLING (1-1/8) | 1 | ||
| 41 | 66-4715 | TUBE - suction to bulkhead | 1 | |
| 42 | 55-6434 | TEE (1/2 x 1/2 x 1/4) | 1 | |
| 43 | 66-7374 | TUBE - tee to solenoid | 1 | |
| 44 | 66-5306 | VALVE - solenoid (see 138A6, for connectors see 115D14) | 1 | |
| 55-3029 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 45 | 66-7376 | TUBE - solenoid to check valve | 1 | |
| 46 | 66-3653 | VALVE - check (see 9G12) | 1 | |
|
|
10-66-3653 | Проверочный клапан 1/4 | 10 160 ₽ |
|
| 47 | 66-7375 | TUBE - check valve to accumulator | 1 |
