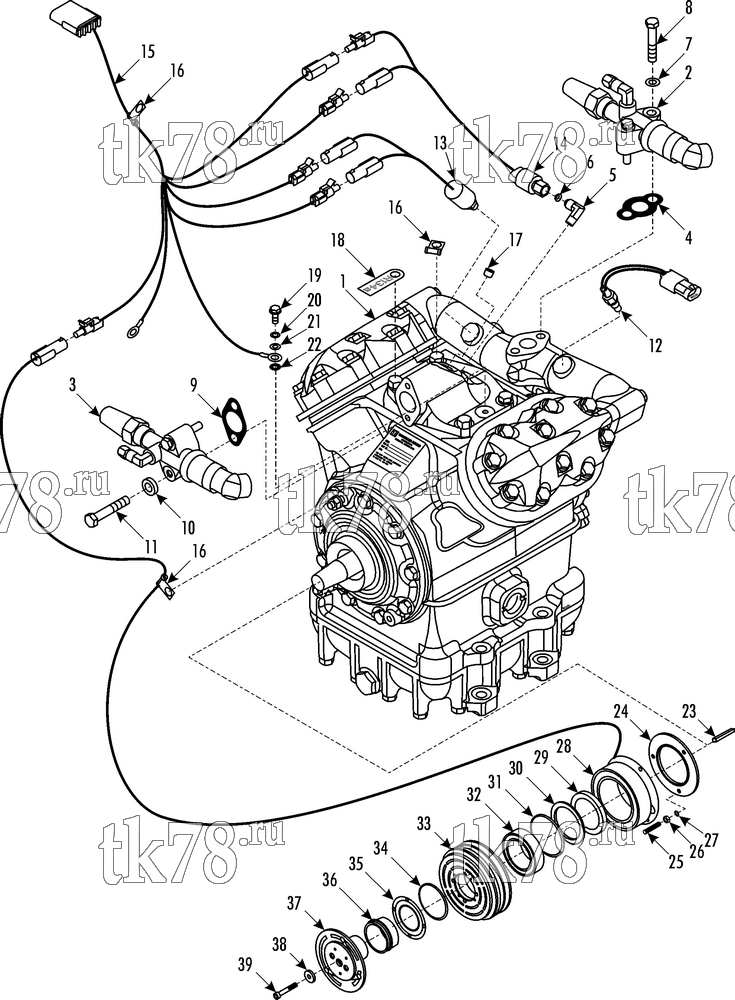

Установкa Thermo King схема COMPRESSOR GROUP (1C74448G04, KIT 715560) – 138F6
Обновление от: 9/24/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-917 | COMPRESSOR - X430 C5 (subassy, see 228E5) | 1 | |
| 2 | 66-8808 | VALVE - discharge (see 138F7) | 1 | |
| 3 | 66-5163 | VALVE - suction (see 138F8) | 1 | |
| 4 | 33-2805 | GASKET - discharge valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 5 | 55-308 | ELBOW | 1 | |
| 6 | 33-768 | GASKET | 1 | |
| 7 | 55-895 | FLATWASHER | 2 | |
| 8 | 55-201 | SCREW - discharge valve | 2 | |
| 9 | 33-2541 | GASKET - suction valve | 1 | |
| 10 | 55-6804 | WASHER - sealing | 2 | |
| 11 | 55-6776 | SCREW - suction valve | 2 | |
| 12 | 41-3345 | SENSOR - high temperature (for connectors see 115D14) | 1 | |
| 13 | 41-4146 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-4531 | SWITCH - only | 1 | ||
| 14 | 41-4147 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 41-4530 | SWITCH - only | 1 | ||
| 15 | 41-6319 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 16 | 55-5261 | CLAMP - harness | 3 | |
| 17 | 55-433 | PLUG - pipe | 1 | |
| 18 | 92-4114 | NAMEPLATE - R134a | 1 | |
| 19 | 55-1329 | SCREW | 1 | |
| 20 | 55-2964 | LOCKWASHER | 1 | |
| 21 | 55-2201 | WASHER | 1 | |
| 22 | 55-2996 | LOCKWASHER | 2 | |
| 23 | 55-9088 | KEY - shaft | 1 | |
| 24 | 77-1083 | PLATE | 1 | |
| 25 | 55-3451 | STUD - mounting | 3 | |
| 26 | 55-789 | NUT | 3 | |
| 27 | 55-790 | LOCKWASHER | 3 | |
| 28 | 45-1389 | FIELD - clutch (24VDC) | 1 | |
| 29 | 77-1491 | SPACER - bearing | 1 | |
| 30 | 33-1238 | SEAL - oil | 1 | |
| 31 | 55-2717 | RING - retaining | 1 | |
| 32 | 77-1233 | BEARING | 1 | |
| 33 | 77-2524 | PULLEY (12K grooves, 7.75 in od) | 1 | |
| 34 | 33-928 | O-RING | 1 | |
| 35 | 33-1285 | RETAINER & SEAL | 1 | |
| 55-110 | SCREW - retainer | 4 | ||
| 55-2718 | LOCKWASHER | 4 | ||
| 36 | 77-1487 | NUT - clutch | 1 | |
| 37 | 77-2392 | HUB & ARMATURE (0.344 thick armature) | 1 | |
| 38 | 77-2498 | SPACER | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 39 | 55-5283 | SCREW - spacer | 1 |
