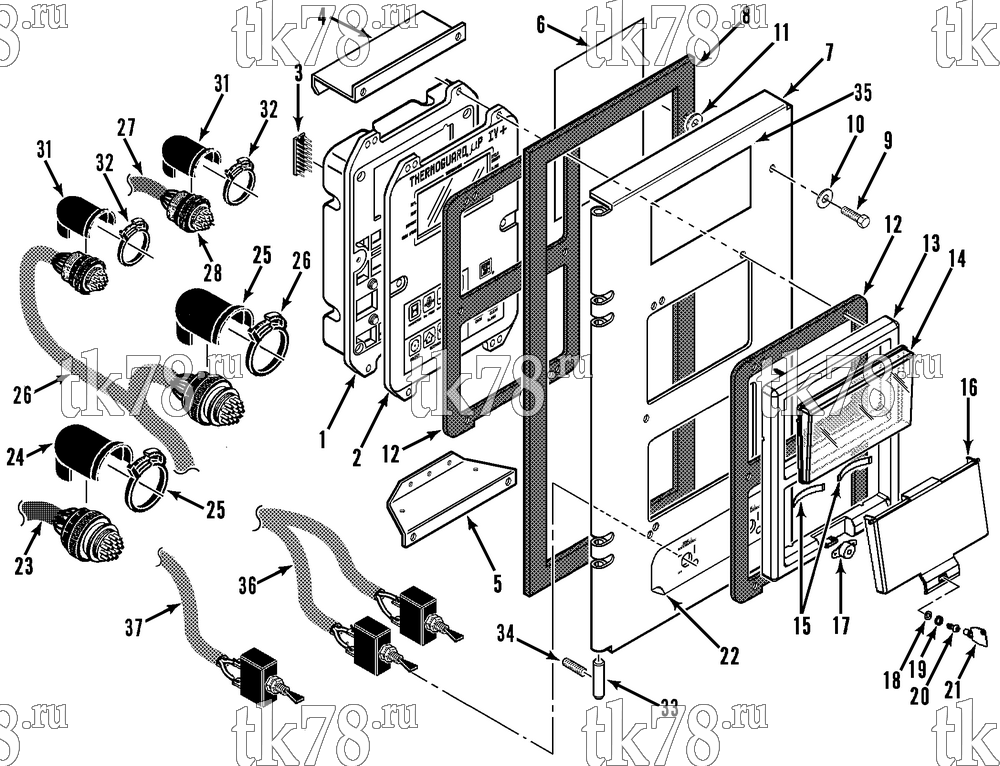

Установкa Thermo King схема CONTROL BOX COVER (SB-III TCI-2 SR EMEIA) – 138D12
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 845-2426 | CONTROLLER - microprocessor (reman) | 1 | |
| 845-2427 | CONTROLLER - microprocessor (reman) | 1 | ||
| 2 | 91-6191 | FACEPLATE/OVERLAY | 1 | |
| 3 | 40-806 | KIT - eprom chip | 1 | |
| 55-4580 | SCREW - controller | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 4 | 91-3975 | BRACKET - bandwrap | 1 | |
| 5 | 91-5728 | BRACKET - harness | 1 | |
| 6 | 91-6839 | NAMEPLATE - relay board | 1 | |
| 7 | 91-3363 | DOOR - control box | 1 | |
| 8 | 33-2216 | GASKET - door | 1 | |
| 9 | 55-6352 | SCREW - door | 2 | |
| 10 | 55-3028 | WASHER - sealing | 2 | |
| 11 | 55-6772 | WASHER - split | 2 | |
| 12 | 33-2894 | GASKET - bezel | 2 | |
| 13 | 91-9303 | BEZEL | 1 | |
|
10-91-9303 | Панель | 11 860 ₽ |
|
| 14 | 92-2356 | WINDOW - bezel | 1 | |
| 15 | 91-8352 | SPRING | 2 | |
| 16 | 91-9302 | COVER | 1 | |
| 17 | 55-8758 | RECEPTACLE - floating | 1 | |
| 18 | 55-8759 | WASHER - special | 1 | |
| 19 | 55-8760 | WASHER - special | 1 | |
| 20 | 55-9761 | STUD | 1 | |
| 21 | 55-8762 | KEY | 1 | |
| 55-4580 | SCREW - bezel | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 22 | 91-7933 | NAMEPLATE - switch | 1 | |
| 23 | 41-2024 | HARNESS - sensor (see 138D3) | 1 | |
| 24 | 41-225 | STRAIN RELIEF - connector (19-pin) | 2 | |
| 25 | 55-7618 | CLAMP (plastic) | 2 | |
| 26 | 41-2257 | HARNESS - interconnecting (see 138D8) | 1 | |
| 27 | 41-1285 | HARNESS - datapack | 1 | |
| 41-1878 | HARNESS - logging/remote controller (for flush mount controller) | 1 | ||
| 28 | 41-746 | CONNECTOR - circular (9-pin) | 1 | |
| 29 | 41-1289 | HARNESS - evaporator switch (host/zone 1, see 138D10) | 1 | |
| 30 | 41-1374 | HARNESS - remote evaporator (host switch, see 138D6) | 1 | |
| 31 | 41-224 | STRAIN RELIEF - connector (14-pin) | 2 | |
| 32 | 55-7617 | CLAMP (plastic) | 2 | |
| 33 | 99-7900 | ROD - hinge | 2 | |
| 203-392 | SEALER - antiseize | A/R | ||
| 34 | 55-3473 | PIN - hinge | 2 | |
| 203-393 | SEALER - thread | A/R | ||
| 35 | 91-6835 | NAMEPLATE - Factory Settings | 1 | |
| 36 | 41-2031 | HARNESS - switch (host/zone 1, see 139B8) | 1 | |
| 37 | 41-1378 | HARNESS - evaporator (host switch) | 1 |
