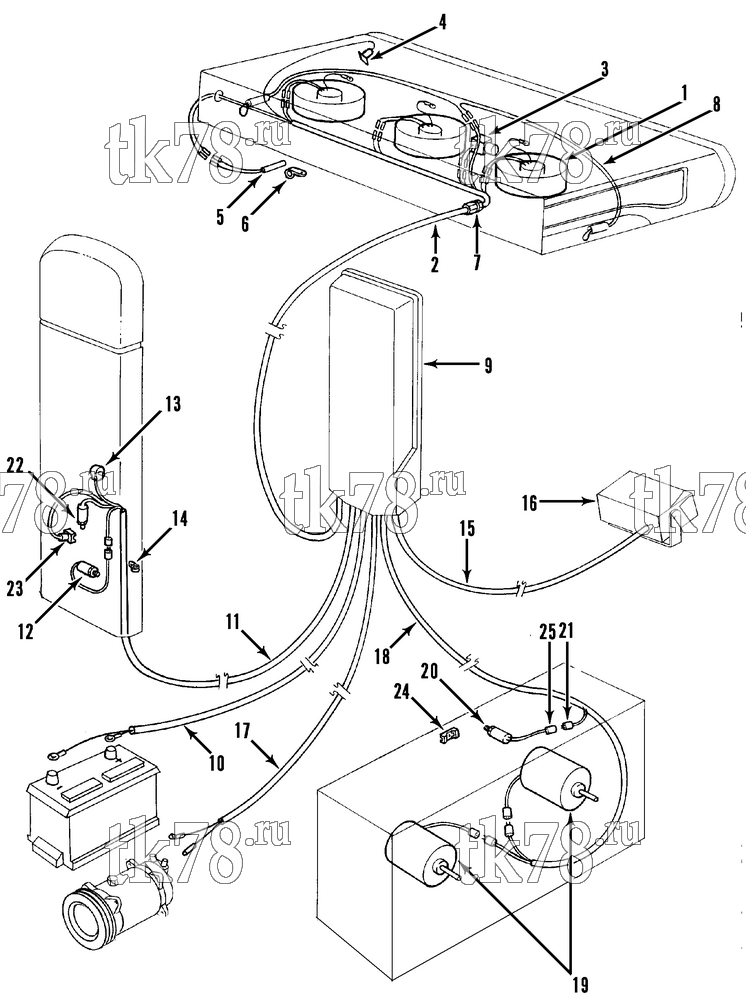

Установкa Thermo King схема ELECTRICAL COMPONENTS – 138C7
Обновление от: 2/4/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1053 | BLOWER - evaporator (24VDC, E1400) | 3 | |
| 78-991 | MOTOR - evaporator (axial, 24VDC, E1000E) | 2 | ||
| 2 | 41-1993 | HARNESS - evap to relays (E1400) | 1 | |
| 41-1903 | HARNESS - evap to relays (E1000) | 1 | ||
| 3 | 66-8021 | VALVE - defrost solenoid (see 138B12) | 1 | |
| 4 | 44-3292 | THERMOSTAT - defrost termination | 1 | |
| 5 | 41-827 | SENSOR | 1 | |
| 6 | 55-5294 | CLAMP - sensor | 1 | |
| 55-8464 | SCREW - clamp | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7354 | NUT | 1 | ||
| 7 | 33-2750 | GASKET - cable | 1 | |
| 55-7870 | NUT | 1 | ||
| 33-2556 | WASHER - sealing | 1 | ||
| 8 | 41-1994 | HARNESS - heater defrost drain (E1400) | 1 | |
| 41-1904 | HARNESS - heater defrost drain (E1000) | 1 | ||
| 9 | NSS | BOX - control (see 138C8) | 1 | |
| 10 | 41-1995 | HARNESS - battery to relays (V-320/V-370) | 1 | |
| 41-1996 | HARNESS - battery to relays (V-210/V-230/V-260) | 1 | ||
| 11 | 41-1992 | HARNESS - pak | 1 | |
| 12 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 13 | 66-7071 | VALVE - pilot solenoid | 1 | |
| 44-6158 | COIL | 1 | ||
| 55-8786 | NUT - valve | 1 | ||
| 14 | 55-546 | CLAMP (1/4) | 3 | |
| 55-7089 | FLATWASHER | 3 | ||
| 55-7370 | LOCKWASHER | 3 | ||
| 55-7367 | NUT | 3 | ||
| 15 | 41-1997 | HARNESS - in-cab box | 1 | |
| 16 | NSS | BOX - cab control (supplied by dealer) | 1 | |
| 17 | 41-1998 | HARNESS - compressor to relays (V-320/V-370) | 1 | |
| 41-1999 | HARNESS - compressor to relays (V-210/V-230/V-260) | 1 | ||
| 18 | 41-2000 | HARNESS - condenser (C750/C900) | 1 | |
| 41-2001 | HARNESS - condenser (C580) | 1 | ||
| 19 | 41-436 | MOTOR (1/6hp, 28V, see 87D1) | 2 | |
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 4 | ||
| 44-5835 | CONNECTOR (2-pin, male) | 2 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 4 | ||
| 20 | 44-7991 | SWITCH - hpco | 1 | |
| 21 | 44-5835 | CONNECTOR (2-pin) | 1 | |
| 22 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 23 | 41-105 | SWITCH - thermostat | 1 | |
| 24 | 99-3281 | MOUNT - cable tie | 3 | |
| 55-2264 | RIVET - blind | 3 | ||
| 55-2330 | BANDWRAP | 3 | ||
| 25 | 44-5838 | CONNECTOR - tower (2-pin) | 1 |
