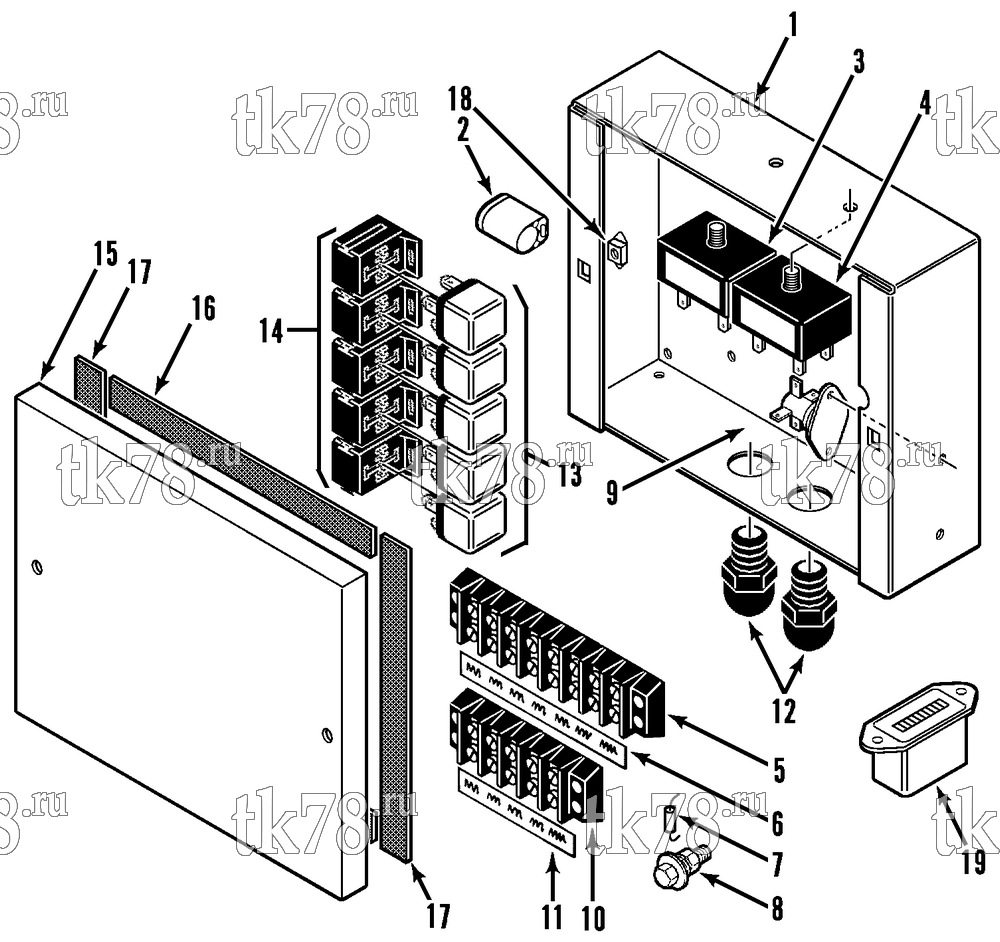

Установкa Thermo King схема CONTROL BOX – 137E11
Обновление от: 12/12/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-6006 | BASE | 1 | |
| 55-7062 | INSERT | 4 | ||
| 2 | 41-561 | TIMER - delay | 1 | |
| 44-5763 | DIODE | 2 | ||
| 44-8759 | CAPACITOR | 1 | ||
| 44-9338 | RESISTOR | 1 | ||
| 3 | 41-676 | TIMER - delay | 1 | |
| 41-457 | RESISTOR - timer | 1 | ||
| 55-5279 | SCREW - timer | 1 | ||
| 55-3013 | FLATWASHER | 1 | ||
| 55-2998 | LOCKWASHER | 2 | ||
| 55-2999 | NUT | 1 | ||
| 4 | 44-8162 | TIMER - delay | 1 | |
| 41-677 | RESISTOR - timer | 1 | ||
| 55-5279 | SCREW | 1 | ||
| 55-3013 | FLATWASHER | 1 | ||
| 55-2998 | LOCKWASHER | 2 | ||
| 55-2999 | NUT | 1 | ||
| 5 | 44-5057 | BOARD - terminal | 1 | |
| 55-4487 | SCREW | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-2998 | LOCKWASHER | 2 | ||
| 55-6774 | INSERT | 2 | ||
| 6 | 91-6008 | MARKSTRIP | 1 | |
| 7 | 44-8765 | DIODE | 1 | |
| 8 | 55-3000 | SCREW - ground | 1 | |
| 55-2001 | FLATWASHER | 3 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 9 | 44-4035 | RECTIFIER | 1 | |
| 44-2756 | DIODE | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 203-454 | MASTIC - heat transfer | A/R | ||
| 55-3256 | SCREW - rectifier | 2 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-2998 | LOCKWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 10 | 44-5350 | BOARD - terminal | 1 | |
| 55-4487 | SCREW - board | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-2998 | LOCKWASHER | 2 | ||
| 55-6774 | INSERT | 2 | ||
| 11 | 91-6009 | MARKSTRIP | 1 | |
| 12 | 55-6141 | CONNECTOR (liquid tite) | 2 | |
| 55-2635 | NUT - conduit | 2 | ||
| 13 | 44-9111 | RELAY - mini (12VDC) | 5 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 14 | 44-5537 | SOCKET - relay | 5 | |
| 55-3025 | SCREW - socket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-5206 | INSERT | 2 | ||
| 15 | 91-6007 | COVER | 1 | |
| 55-1587 | SCREW - cover | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-4510 | WASHER - retaining | 2 | ||
| 16 | 99-8986 | STRIP - gasket (foam, 8.875) | A/R | |
| 17 | 99-8986 | STRIP - gasket (foam, 6.125) | A/R | |
| 18 | 55-3059 | NUT - captive | 2 | |
| 19 | 44-5703 | HOURMETER | 1 | |
|
10-44-5703 | Счетчик часов | 6 030 ₽ |
|
| 33-2915 | GASKET - hourmeter | 1 | ||
| 55-4487 | SCREW - hourmeter | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-5754 | LOCKNUT | 1 |
