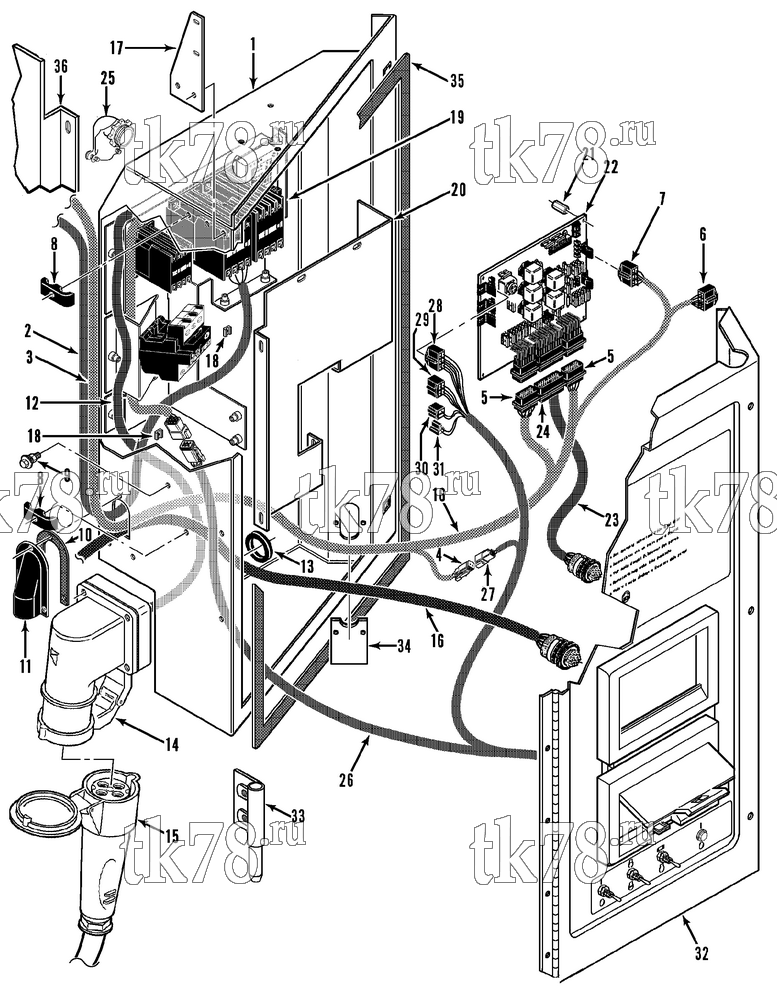

Установкa Thermo King схема CONTROL BOX ASSEMBLY (50s TG VI) – 137C11
Обновление от: 4/3/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5091 | BOX - control (380V) | 1 | |
| 98-5143 | BOX - control (230V) | 1 | ||
| 55-6997 | NUT - captive | 3 | ||
| 55-7035 | SCREW - box | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-7042 | NUT | 3 | ||
| 2 | 41-1918 | CABLE - heater | 1 | |
| 3 | 41-1916 | HARNESS - main | 1 | |
| 4 | 44-9585 | PLUG (2-pin) | 10 | |
| 44-9586 | WEDGE (2 terminal) | 10 | ||
| 5 | 44-9853 | RECEPTACLE (18-pin) | 2 | |
| 44-9854 | LOCK - receptacle | 2 | ||
| 6 | 44-8920 | CONNECTOR (6-pin) | 1 | |
| 44-8921 | WEDGE (6 terminal) | 1 | ||
| 7 | 44-5030 | CONNECTOR (6-pin, female) | 1 | |
| 8 | 91-2803 | CLAMP - harness | 2 | |
| 55-3462 | SCREW - clamp | 2 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 9 | 55-2977 | SCREW - ground | 1 | |
| 55-2993 | LOCKWASHER (internal tooth) | 3 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1801 | NUT | 2 | ||
| 10 | 33-2429 | GASKET - shield | 1 | |
| 11 | 91-4503 | COVER - wire | 1 | |
| 55-1587 | SCREW - cover | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 12 | 41-1919 | HARNESS - power (380V) | 1 | |
| 41-2016 | HARNESS - power (230V) | 1 | ||
| 13 | 33-507 | GROMMET - receptacle | 1 | |
| 14 | 41-519 | RECEPTACLE - power (380/3/50, mates w/ 41-520) | 1 | |
| 41-1817 | RECEPTACLE (230V) | 1 | ||
| 99-9052 | COVER - receptacle | 1 | ||
| 33-1697 | GASKET - receptacle | 1 | ||
| 55-2750 | SCREW - receptacle | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 4 | ||
| 15 | 41-520 | PLUG - power (380/3/50, mates w/ 41-519) | 1 | |
| 41-1816 | PLUG - power (230V) | 1 | ||
| 16 | 41-1917 | HARNESS - sensor | 1 | |
| 17 | 91-7713 | BRACKET - control box cover | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 18 | 99-6093 | MOUNT - cable tie | 6 | |
| 55-4133 | RIVET - mount | 6 | ||
| 19 | 91-7714 | TRAY - linestarter (see 137C9) | 1 | |
| 55-2991 | SCREW - tray (#10) | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2977 | SCREW - tray (1/4-20) | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 20 | 91-7715 | BRACKET - shield (high voltage) | 1 | |
| 55-3027 | SCREW - bracket | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 21 | 99-9889 | SPACER - standoff (relay board) | 5 | |
| 22 | 41-3412 | BOARD - relay (see 120E1) | 1 | |
| 55-2997 | SCREW - board | 10 | ||
| 55-2998 | LOCKWASHER | 10 | ||
| 55-3013 | FLATWASHER | 5 | ||
| 23 | 41-2014 | HARNESS - interconnect | 1 | |
| 24 | 44-9768 | RECEPTACLE (36-pin) | 1 | |
| 44-9769 | LOCK - receptacle | 1 | ||
| 25 | 55-9129 | CONNECTOR - cable | 1 | |
| 26 | 41-2017 | HARNESS - switch (see 137C10) | 1 | |
| 27 | 44-9589 | RECEPTACLE (2-pin) | 1 | |
| 44-9590 | WEDGE (2 terminal) | 1 | ||
| 28 | 44-5719 | CONNECTOR (8-pin, female) | 1 | |
| 29 | 44-5224 | CONNECTOR (4-pin, female) | 1 | |
| 30 | 44-5219 | CONNECTOR (2-pin, female) | 1 | |
| 31 | 44-6519 | CONNECTOR (2-pin, female) | 1 | |
| 32 | 98-5144 | COVER - box (see 1337C10) | 1 | |
| 33 | 99-8104 | HINGE - door | 2 | |
|
10-99-8104 | Петля | 2 160 ₽ |
|
| 91-7716 | SPACER - hinge | 2 | ||
| 55-3018 | SCREW - hinge | 8 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 34 | 91-5094 | COVER - harness | 1 | |
| 55-1329 | SCREW - cover | 2 | ||
| 35 | 33-2919 | GASKET - box (89.6 in lg) | A/R | |
| 36 | 91-7903 | SHIELD - harness | 1 | |
| 55-3027 | SCREW - shield | 5 | ||
| 55-2964 | LOCKWASHER | 5 | ||
| 55-2001 | FLATWASHER | 5 |
