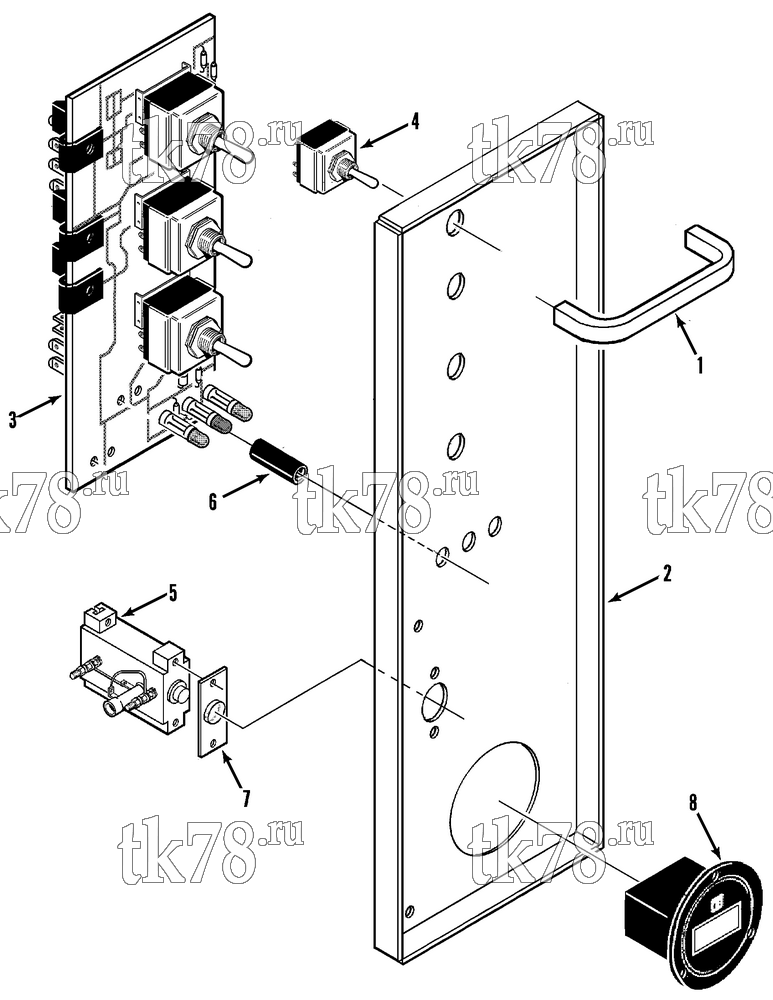

Установкa Thermo King схема SWITCH PANEL ASSEMBLY (WATLOW, w/ TG V EMEIA) – 137B8
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-2596 | HANDLE - pull | 1 | |
| 55-3015 | SCREW - handle | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 2 | 91-7773 | PANEL - front | 1 | |
| 3 | 44-9003 | BOARD - switch (diesel/electric) | 1 | |
| 4 | 44-709 | SWITCH - high temperature cutout | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 5 | 40-1082 | SWITCH - high temperature cutout | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-1556 | RESISTOR - cutout switch | 2 | ||
|
10-44-1556 | Резистор теплового реле, 12V 5Ω | 1 230 ₽ |
|
| 55-3443 | SCREW - switch | 2 | ||
| 55-2002 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 6 | 91-5258 | HOSE | 3 | |
| 7 | 44-2119 | SEAL - pushbutton | 1 | |
| 8 | 44-8764 | HOURMETER | 1 | |
|
10-44-8764 | Счетчик часов | 7 260 ₽ |
|
