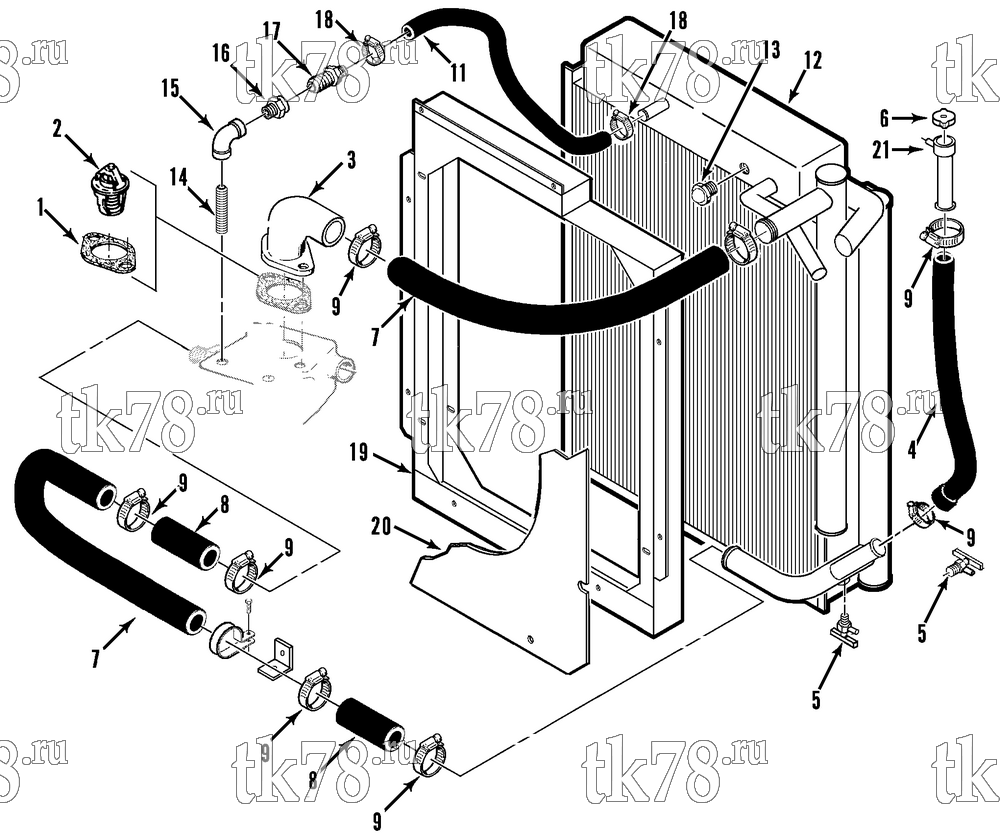

Установкa Thermo King схема COOLANT GROUP – 136B3
Обновление от: 4/21/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-487 | GASKET - thermostat | 1 | |
|
10-33-487 | Прокладка термостата, Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 910 ₽ |
|
| 2 | 11-7702 | THERMOSTAT - coolant | 1 | |
|
11-7702 OEM | Термостат Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 3 830 ₽ |
|
|
10-11-7702 | Термостат Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 1 790 ₽ |
|
| 3 | 11-3154 | ELBOW - water outlet | 1 | |
| 55-5424 | SCREW - elbow | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 4 | 12-383 | HOSE - radiator to filler (cut to 21 in) | A/R | |
| 5 | 55-4957 | DRAIN COCK | 2 | |
| 6 | 11-7983 | CAP - radiator | 1 | |
| 7 | 11-8780 | TUBE - radiator to engine | 1 | |
| 8 | 98-4593 | HOSE (cut to 3.0) | A/R | |
| 9 | 55-3401 | CLAMP - hose | 8 | |
| 10 | 98-4594 | HOSE - engine to radiator (cut to 15.0 in) | A/R | |
| 11 | 11-2342 | HOSE - bleed | 1 | |
| 12 | 12-734 | RADIATOR | 1 | |
| 13 | 11-4040 | BULB | 1 | |
| 33-1049 | O-RING | 1 | ||
| 14 | 55-784 | NIPPLE | 1 | |
| 15 | 55-1006 | ELBOW | 1 | |
| 16 | 55-2116 | BUSHING | 1 | |
| 17 | 55-3170 | CONNECTOR - hose | 1 | |
| 18 | 55-6731 | CLAMP - hose | 2 | |
| 19 | 98-5072 | SHROUD - radiator | 1 | |
| 20 | 98-5073 | ORIFICE - radiator | 1 | |
| 21 | 11-8253 | NECK - radiator filler | 1 |
