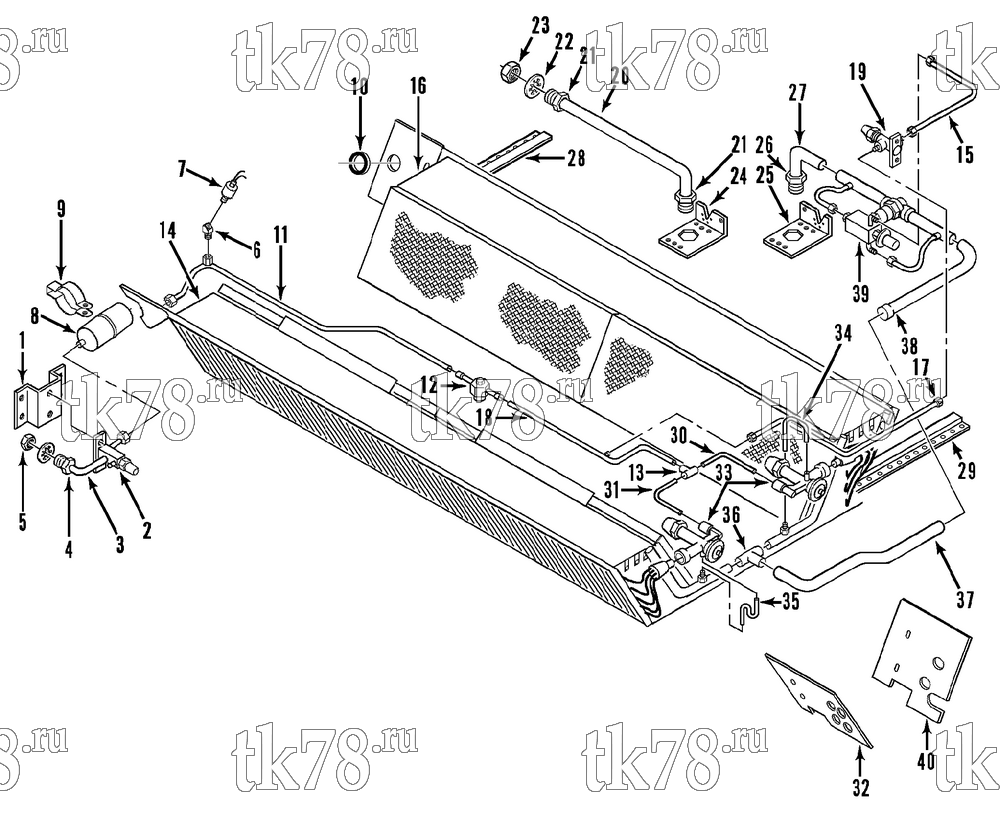

Установкa Thermo King схема REFRIGERATION - EVAPORATOR (NSD-II M3 1000) – 135F6
Обновление от: 4/20/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3750 | BRACKET - valve | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-3028 | WASHER - sealing | 4 | ||
| 55-4953 | NUT | 4 | ||
| 2 | 66-2104 | VALVE - shutoff | 1 | |
| 66-2170 | CAP - valve | 1 | ||
| 55-2995 | SCREW - valve | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 3 | 66-8490 | TUBE - fitting to valve | 1 | |
| 4 | 55-8749 | ADAPTER (#10) | 1 | |
| 5 | 55-6811 | NUT - bulkhead | 1 | |
| 6 | 55-1653 | ELBOW | 1 | |
| 7 | 41-1216 | SWITCH - hpco | 1 | |
| 8 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 9 | 55-2192 | HANGER - dehydrator | 1 | |
| 55-3121 | SCREW (1-1/2 in lg) | 1 | ||
| 55-1587 | SCREW (3/4 in lg) | 1 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-3028 | WASHER - sealing | 1 | ||
| 55-1801 | NUT | 2 | ||
| 10 | 33-287 | GROMMET (5/8 id) | 1 | |
| 33-489 | GROMMET (1-1/4 id) | 1 | ||
| 11 | 66-8491 | TUBE - liquid | 1 | |
| 66-3571 | FITTING - saddle | 1 | ||
| 12 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 13 | 55-6222 | TEE | 1 | |
| 14 | 67-1127 | COIL - evaporator (curbside) | 1 | |
| 15 | 66-8265 | TUBE - valve | 1 | |
| 16 | 67-1128 | COIL - evaporator (roadside) | 1 | |
| 17 | 66-6826 | TUBE - valve | 1 | |
| 18 | 66-8492 | TUBE - indicator to tee | 1 | |
| 66-874 | FITTING | 1 | ||
| 19 | 66-992 | VALVE - shutoff | 1 | |
| 55-2991 | SCREW - valve | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-3008 | WASHER - sealing | 2 | ||
| 55-4560 | NUT | 2 | ||
| 20 | 66-6342 | TUBE - discharge to fitting | 1 | |
| 21 | 66-6840 | ADAPTER (#16) | 2 | |
| 22 | 55-5741 | LOCKWASHER (#16) | 2 | |
| 23 | 55-5740 | NUT | 2 | |
| 24 | 91-4654 | PLATE - fitting (#16) | 1 | |
| 25 | 91-4655 | PLATE - fitting | 1 | |
| 55-1587 | SCREW - plate | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 26 | 55-7537 | ADAPTER (#20) | 1 | |
| 55-5739 | NUT (#20) | 1 | ||
| 55-5742 | LOCKWASHER (#20) | 1 | ||
| 27 | 66-8263 | TUBE - suction | 1 | |
| 28 | 91-3743 | BRACKET - coil (drier) | 1 | |
| 29 | 91-3742 | BRACKET - coil (expansion valve) | 1 | |
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT - coil to bracket | 8 | ||
| 55-2963 | SCREW - bracket to frame | 12 | ||
| 55-2959 | LOCKWASHER | 12 | ||
| 55-2958 | FLATWASHER | 12 | ||
| 30 | 66-8493 | TUBE - tee to expansion valve | 1 | |
| 31 | 66-8494 | TUBE - tee to expansion valve | 1 | |
| 32 | 91-4657 | PANEL (roadside) | 1 | |
| 33 | 66-6817 | VALVE - expansion (R22) | 2 | |
| 61-2233 | SCREEN - inlet | 1 | ||
| 66-6933 | ELEMENT - power | 1 | ||
| 34 | 66-6818 | TUBE - equalizer (curbside) | 1 | |
| 35 | 66-6819 | TUBE - equalizer (roadside) | 1 | |
| 36 | 55-6508 | TEE | 1 | |
| 37 | 66-6820 | TUBE - tee to epr valve | 1 | |
| 38 | 66-8262 | TUBE - suction | 1 | |
| 39 | 66-5136 | VALVE - epr (see 103E14) | 1 | |
| 40 | 91-4656 | PANEL (curbside) | 1 | |
| 41 | 66-8495 | TUBE - indicator to tee | 1 | |
| 66-3571 | FITTING | 1 | ||
| 55-6837 | SHOULDER - brazed | 1 | ||
| 55-6838 | NUT - shoulder | 1 |
