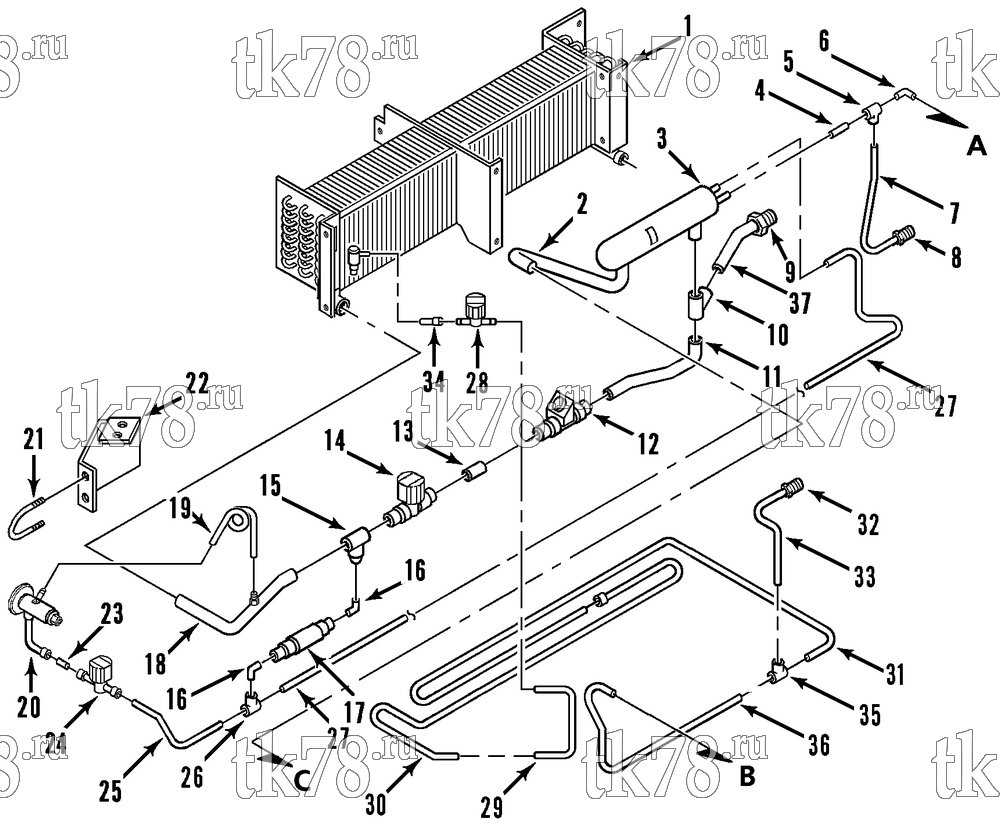

Установкa Thermo King схема REFRIGERATION - EVAPORATOR – 135C6
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1035 | COIL - evaporator (see 101F8) | 1 | |
| 91-3397 | NAMEPLATE - pressure | 1 | ||
| 2 | 66-6084 | TUBE - exchanger to bulkhead | 1 | |
| 3 | 67-931 | HEAT EXCHANGER | 1 | |
| 91-3482 | NAMEPLATE - pressure vessel | 1 | ||
| 4 | 66-6135 | TUBE - tee to exchanger | 1 | |
| 5 | 55-3251 | TEE | 1 | |
| 6 | 55-3249 | ELBOW | 1 | |
| 7 | 66-6145 | TUBE - tee to o-ring fitting | 1 | |
| 8 | 66-6036 | ADAPTER - bulkhead (liquid) | 1 | |
| 33-1015 | O-RING (3/8) | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 55-6780 | NUT - adapter | 1 | ||
| 9 | 55-6354 | ADAPTER - bulkhead (suction) | 1 | |
| 33-1222 | O-RING | 1 | ||
| 55-6812 | NUT - adapter | 1 | ||
| 10 | 66-5308 | TEE | 1 | |
| 11 | 66-6360 | TUBE - check valve to tee | 1 | |
| 12 | 66-5307 | VALVE - check (see 106C14) | 1 | |
| 13 | 66-6352 | TUBE - solenoid to check valve | 1 | |
| 14 | 66-3606 | VALVE - solenoid (see 137G10) | 1 | |
| 91-3779 | BRACKET - valve | 1 | ||
| 91-2473 | CLAMP (plastic) | 2 | ||
| 55-3344 | SCREW - clamp | 2 | ||
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 15 | 66-6148 | TEE | 1 | |
| 16 | 55-3248 | ELBOW | 2 | |
| 17 | 66-5722 | VALVE - check | 1 | |
| 18 | 66-8381 | TUBE - coil to tee | 1 | |
| 66-5752 | FITTING - equalizer | 1 | ||
| 19 | 66-7975 | TUBE - equalizer | 1 | |
| 20 | 66-5993 | VALVE - expansion (R404A) | 1 | |
| 66-5335 | ELEMENT - power | 1 | ||
| 66-6047 | SCREEN - inlet | 1 | ||
| 21 | 55-3547 | U-BOLT - expansion valve | 1 | |
| 55-4560 | NUT | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 22 | 91-3780 | BRACKET - expansion valve | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-3059 | NUT - captive | 2 | ||
| 23 | 66-6349 | TUBE - solenoid to tee | 1 | |
| 24 | 66-5305 | VALVE - solenoid (liquid, see 116G10) | 1 | |
| 55-1587 | SCREW - valve | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 25 | 66-6152 | TUBE - tee to valve | 1 | |
| 26 | 55-6222 | TEE | 1 | |
| 27 | 66-6153 | TUBE - liquid (exchanger to tee) | 1 | |
| 28 | 66-8464 | VALVE - solenoid (defrost, for connectors see 115D14) | 1 | |
| 60-230 | KIT - diaphram | 1 | ||
| 60-231 | KIT - coil & tube | 1 | ||
| 29 | 66-8380 | TUBE - defrost to solenoid | 1 | |
| 30 | 66-7236 | TUBE - defrost | 1 | |
| 31 | 66-6353 | TUBE - defrost | 1 | |
| 32 | 55-6786 | ADAPTER - defrost (o-ring seal) | 1 | |
| 55-6811 | NUT - adapter | 1 | ||
| 33-2115 | O-RING | 1 | ||
| 33 | 66-6155 | TUBE - tee to adapter | 1 | |
| 34 | 66-6348 | TUBE - solenoid | 1 | |
| 35 | 55-1252 | TEE | 1 | |
| 36 | 66-6157 | TUBE - bulkhead to tee | 1 | |
| 37 | 66-6199 | TUBE - adapter to tee | 1 |
