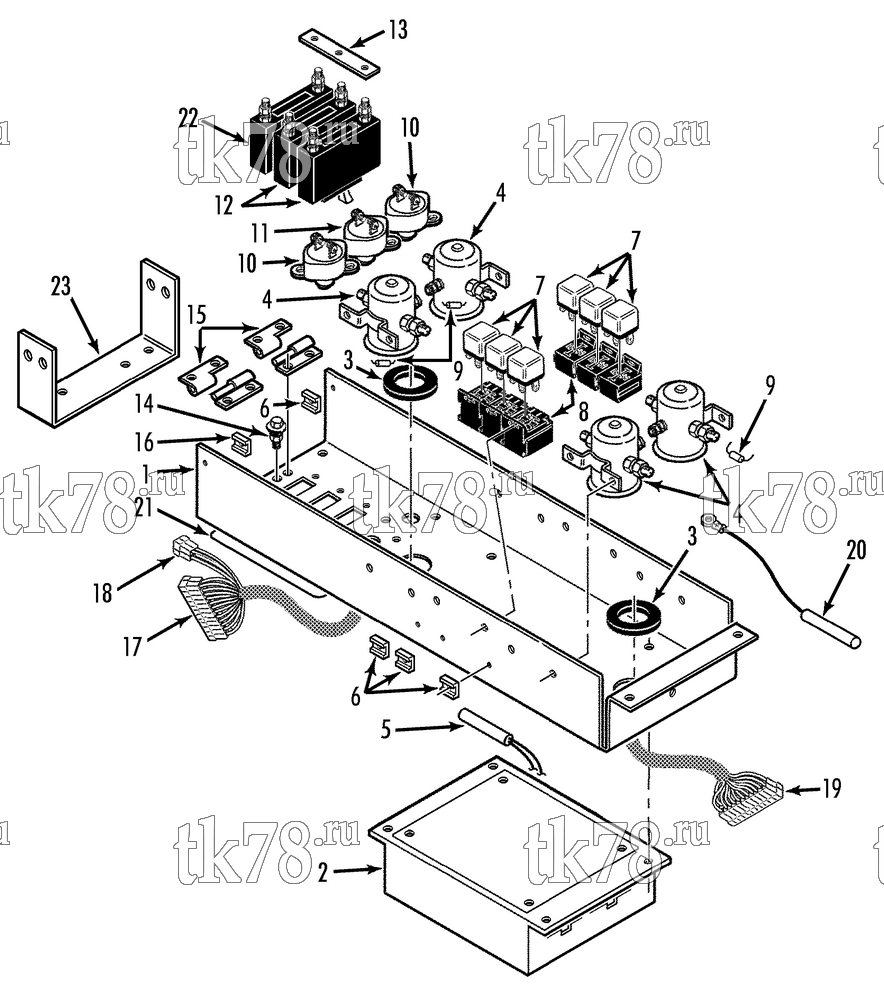

Установкa Thermo King схема CONTROL PANEL - EVAPORATOR (LRT-I) – 134G13
Обновление от: 5/29/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-7105 | PANEL - control | 1 | |
| 2 | NSS | CONTROLLER (see 127A10) | 1 | |
| 3 | 33-489 | GROMMET | 2 | |
| 4 | 41-3987 | SOLENOID (24V, 50 amp) | 4 | |
| 55-3018 | SCREW - solenoid | 8 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 16 | ||
| 55-2993 | LOCKWASHER | 8 | ||
| 55-3472 | NUT | 8 | ||
| 5 | 41-7706 | SENSOR - temperature | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 6 | 99-3427 | MOUNT - cable tie | 3 | |
| 55-3010 | RIVET | 3 | ||
| 7 | 44-9112 | RELAY - mini | 6 | |
| 8 | 44-5537 | SOCKET - relay | 6 | |
| 55-2995 | SCREW - socket | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 9 | 41-1460 | DIODE - solenoid | 3 | |
| 10 | 44-7217 | BREAKER - circuit (15 amp) | 2 | |
| 11 | 44-7216 | BREAKER - circuit (10 amp) | 1 | |
| 55-3442 | SCREW - breaker | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 12 | 41-2398 | BREAKER - circuit (40 amp) | 2 | |
| 55-2997 | SCREW - breaker | 6 | ||
| 55-3013 | FLATWASHER | 6 | ||
| 55-3014 | LOCKWASHER | 6 | ||
| 13 | 41-1835 | STRAP - jumper | 1 | |
| 14 | 55-629 | SCREW - ground | 1 | |
| 55-2721 | FLATWASHER | 4 | ||
| 55-3672 | LOCKWASHER | 3 | ||
| 55-277 | NUT | 2 | ||
| 15 | 91-7146 | HINGE - cover (w/o pin) | 2 | |
| 91-7160 | HINGE - cover (w/ pin) | 2 | ||
| 16 | 99-3281 | MOUNT - cable tie | 2 | |
| 55-3272 | RIVET - mount | 2 | ||
| 17 | 41-656 | CONNECTOR - inline (24 terminal) | 1 | |
| 18 | 41-654 | CONNECTOR - inline (4 terminal) | 1 | |
| 19 | 41-650 | CONNECTOR - inline (18 terminal) | 1 | |
| 20 | 41-243 | STRAP - door | 1 | |
| 55-2995 | SCREW - strap | 1 | ||
| 55-2965 | NUT | 1 | ||
| 21 | 91-5154 | NAMEPLATE - circuit breaker | 1 | |
| 22 | 44-5494 | BREAKER - circuit (65 amp) | 1 | |
| 23 | 91-4743 | BRACKET - control panel | 1 | |
| 55-1587 | SCREW - bracket | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 |
