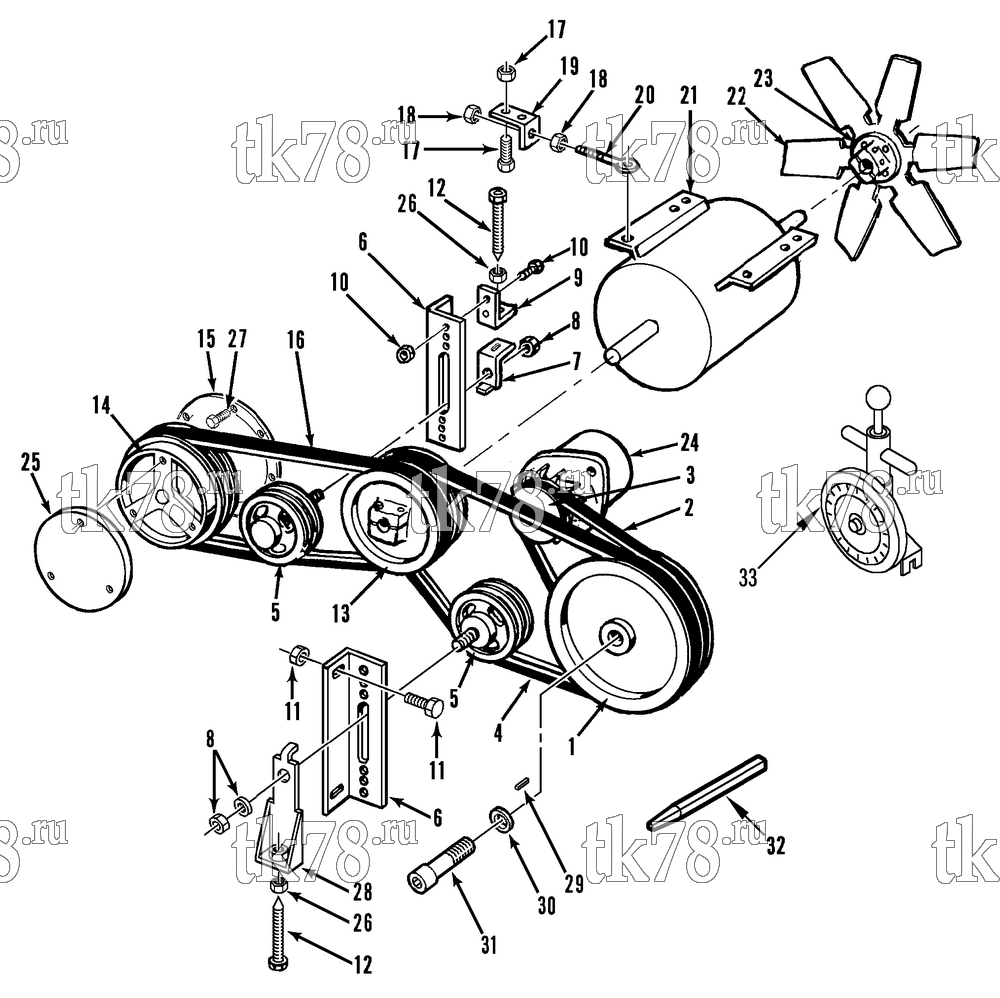

Установкa Thermo King схема BELTS, PULLEYS & FAN GROUP – 134F9
Обновление от: 1/22/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-2461 | PULLEY - compressor | 1 | |
| 2 | 78-931 | BELT - alternator | 1 | |
| 3 | 77-2375 | PULLEY - alternator (90 amp) | 1 | |
| 4 | 78-570 | BELT - compressor | 1 | |
| 10-78-570 | Ремень электромотор - компрессор, URD/URD-III | 6 480 ₽ |
|
|
| 5 | 77-1475 | PULLEY - idler (see 60F11) | 2 | |
| 6 | 99-7392 | BRACKET - idler pulley | 2 | |
| 99-7391 | SPACER - idler bracket | 4 | ||
| 7 | 99-7394 | BRACKET - tension | 1 | |
| 8 | 55-314 | NUT - idler | 2 | |
| 55-2159 | LOCKWASHER | 2 | ||
| 55-1052 | WASHER - special | 2 | ||
| 9 | 99-7393 | BRACKET - tension | 2 | |
| 10 | 55-2963 | SCREW - bracket | 4 | |
| 55-7791 | FLATWASHER | 4 | ||
| 55-7792 | NUT | 4 | ||
| 11 | 55-4553 | SCREW - bracket | 4 | |
| 55-8658 | FLATWASHER | 4 | ||
| 55-8659 | NUT | 4 | ||
| 12 | 55-7764 | SCREW - tension adjustment | 2 | |
| 55-4931 | WASHER - special | 4 | ||
| 13 | 77-1989 | PULLEY - motor | 1 | |
| 55-2962 | SCREW - pulley | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 14 | 107-258 | CLUTCH (see 133C1) | 1 | |
| 15 | 11-8750 | FLYWHEEL (see 132C8) | 1 | |
| 16 | 78-342 | BELT - engine | 1 | |
| 10-78-342 | Ремень двигатель - электромотор, URD/URD-III | 16 820 ₽ |
|
|
| 17 | 55-2963 | SCREW - bracket | 2 | |
| 55-2114 | NUT | 2 | ||
| 18 | 55-287 | NUT - eyebolt | 2 | |
| 19 | 91-5279 | BRACKET - tension (90 amp alternator) | 1 | |
| 20 | 99-541 | BOLT - eye | 1 | |
| 21 | 104-492 | MOTOR (208/230/380/460V, see 96D14) | 1 | |
| 22 | 78-567 | FAN - condenser | 1 | |
| 55-2963 | SCREW - fan | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 23 | 77-1474 | HUB - fan | 1 | |
| 55-2962 | SCREW - hub to shaft | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 24 | 45-1706 | ALTERNATOR (90 amp, see 133A12) | 1 | |
| 10-45-1706 | Генератор 90A, URD | 43 600 ₽ |
|
|
| 25 | 91-7423 | SHIELD - clutch | 1 | |
| 55-1587 | SCREW - shield | 3 | ||
| 203-400 | SEALER - thread | A/R | ||
| 55-2086 | FLATWASHER | 3 | ||
| 91-4299 | SPACER | 3 | ||
| 26 | 55-3300 | NUT - tension screw | 2 | |
| 27 | 55-5022 | SCREW - clutch | 6 | |
| 203-400 | SEALER - thread | A/R | ||
| 28 | 91-1674 | BRACKET - tension | 1 | |
| 29 | 55-9024 | KEY | 1 | |
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 30 | 77-2498 | SPACER - compressor | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 31 | 55-4316 | SCREW - pulley | 1 | |
|
10-55-4316 | Болт коленвала компрессора X426/430 | 470 ₽ |
|
| 55-2363 | LOCKWASHER | 1 | ||
| 32 | 204-972 | TOOL - keyway alignment | 1 | |
| 33 | 204-427 | GAUGE - belt tension | 1 |
