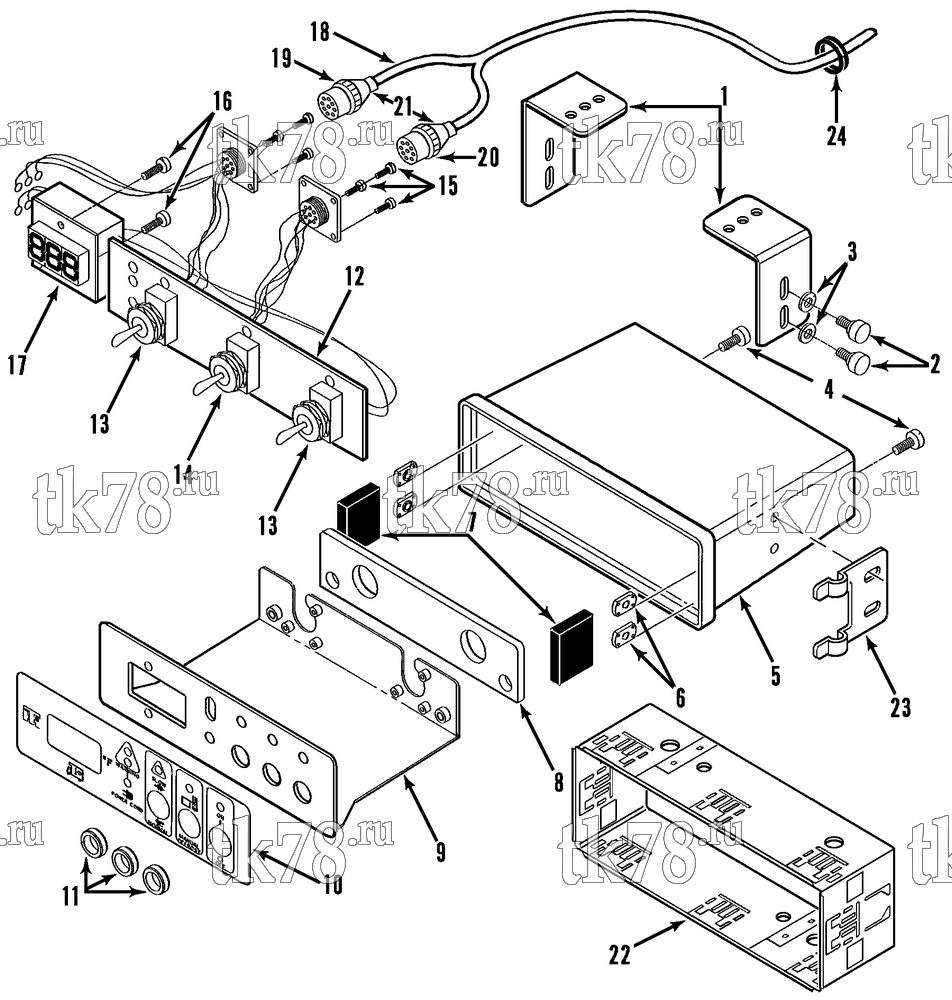

Установкa Thermo King схема REMOTE CONTROL BOX - CAB (TOYO) – 134C14
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 44-8494 | BOX - remote control (complete, 50 units) | 1 | ||
| 44-8495 | BOX - remote control (complete, 50 units, EMEIA) | 1 | ||
| 44-8496 | BOX - remote control (complete, 30 units) | 1 | ||
| 44-8497 | BOX - remote control (complete, 30 units, EMEIA) | 1 | ||
| 1 | 91-4308 | BRACKET - box (under dash) | 2 | |
| 2 | 55-6611 | SCREW - bracket | 4 | |
| 3 | 55-2996 | LOCKWASHER | 4 | |
| 55-2086 | FLATWASHER | 4 | ||
| 4 | 55-3842 | SCREW - box | 2 | |
| 5 | 91-1824 | BOX - cab control | 1 | |
| 6 | 55-6613 | NUT - weld | 4 | |
| 7 | 99-5966 | STRIP (neoprene, 50 ft) | A/R | |
| 8 | 33-2050 | GASKET - box | 1 | |
| 9 | 91-1876 | BRACKET - box (internal) | 1 | |
| 10 | 91-4080 | NAMEPLATE - box (Toyo Unity) | 1 | |
| 11 | 55-7484 | FACENUT - knurled | 3 | |
| 12 | 41-2090 | BOARD (Toyo) | 1 | |
| 13 | 44-8079 | SWITCH - on/off (slow/normal) | 2 | |
| 14 | 44-8080 | SWITCH - defrost | 1 | |
| 15 | 55-6549 | SCREW - connector | 6 | |
| 16 | 55-6612 | SCREW - thermometer | 2 | |
| 55-6791 | WASHER (nylon) | 4 | ||
| 17 | 44-8466 | SENSOR - thermometer (digital) | 1 | |
| 44-8469 | SENSOR - thermometer (digital, F) | 1 | ||
| 44-8468 | SENSOR - thermometer (digital, C) | 1 | ||
| 18 | 41-2089 | HARNESS - remote cab box | 1 | |
| 19 | 44-8532 | PLUG - circular | 1 | |
| 20 | 44-8535 | PLUG - reverse | 1 | |
| 21 | 44-8533 | CLAMP - cable | 2 | |
| 22 | 92-5199 | BRACKET - box (in dash) | 1 | |
| 23 | 91-4619 | CLIP - box in dash | 2 | |
| 55-2994 | SCREW | 4 | ||
| 24 | 33-2925 | GROMMET (5/8 id) | 1 |
