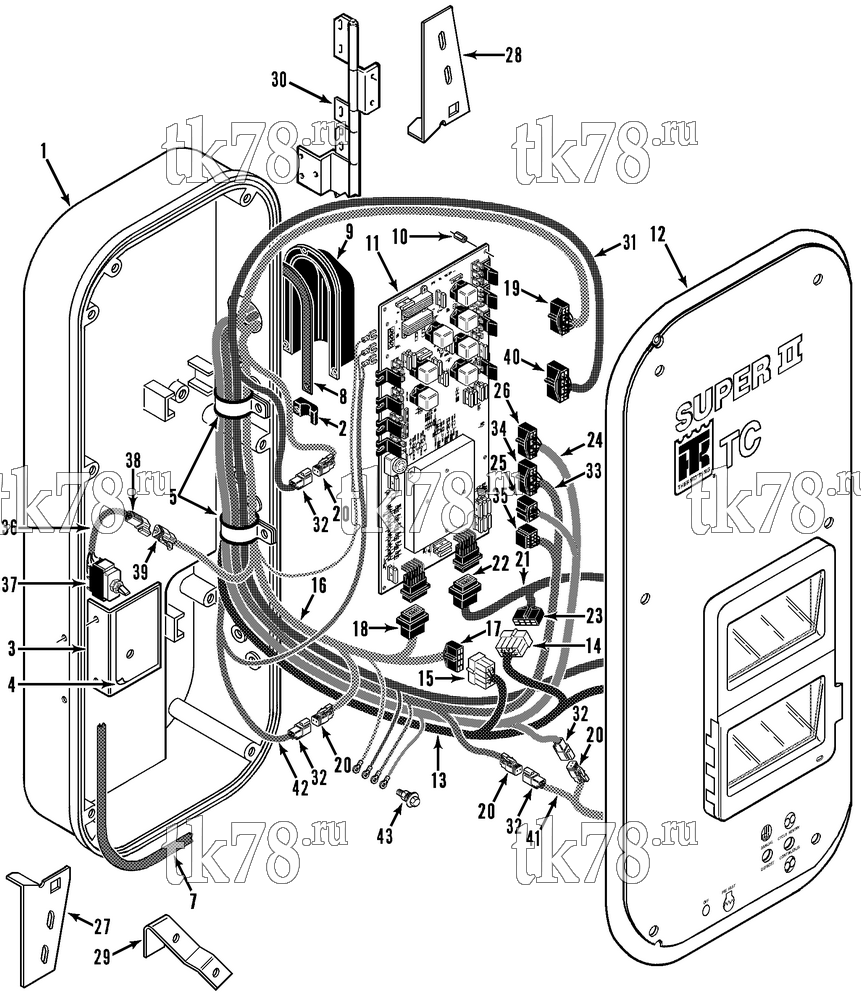

Установкa Thermo King схема CONTROL BOX GROUP (SUPER-II TC SR+) – 134A3
Обновление от: 12/29/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5037 | BOX - control | 1 | |
| 2 | 91-3886 | CLAMP - harness | 1 | |
| 55-3462 | SCREW - clamp | 1 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 3 | 91-7089 | PLATE - switch | 1 | |
| 4 | 91-5891 | NAMEPLATE - microprocessor | 1 | |
| 5 | 55-6156 | CLAMP - harness | 2 | |
| 55-2979 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 6 | 41-1792 | JUMPER | 1 | |
| 7 | 33-2384 | GASKET - cover | 1 | |
| 8 | 33-2786 | GASKET - shield | 1 | |
| 9 | 91-4503 | COVER - harness | 1 | |
| 55-1587 | SCREW - cover | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 10 | 99-9889 | SPACER - standoff (relay board) | 11 | |
| 11 | 41-7423 | BOARD - relay interface (see 127C4) | 1 | |
| 55-4576 | SCREW - spacer & relay board | 9 | ||
| 55-2998 | LOCKWASHER | 9 | ||
| 12 | N/A | COVER - control box (see 134A4) | 1 | |
| 55-6351 | SCREW - cover | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 13 | 41-1786 | HARNESS - sensor | 1 | |
| 14 | 44-9900 | RECEPTACLE | 1 | |
| 15 | 44-9903 | PLUG (8-pin) | 1 | |
| 16 | 41-1784 | HARNESS - main | 1 | |
| 17 | 44-9900 | RECEPTACLE (8-pin) | 1 | |
| 18 | 44-9853 | RECEPTACLE (18-pin) | 1 | |
| 44-9854 | LOCK - receptacle (18-pin) | 1 | ||
| 19 | 44-5030 | CONNECTOR (6-pin, female) | 1 | |
| 20 | 44-9585 | PLUG (2-pin) | 2 | |
| 21 | 41-1796 | HARNESS - interconnect | 1 | |
| 22 | 44-9853 | RECEPTACLE (18-pin) | 1 | |
| 44-9854 | LOCK - receptacle (18-pin) | 1 | ||
| 23 | 44-9903 | PLUG (8-pin) | 1 | |
| 24 | 41-1797 | HARNESS - evaporator (zone 3) | 1 | |
| 25 | 44-5814 | CONNECTOR (4-pin, female) | 1 | |
| 26 | 44-5030 | CONNECTOR (6-pin, female) | 1 | |
| 27 | 91-1971 | ANGLE - support (bottom) | 1 | |
| 28 | 91-1970 | ANGLE - support (top) | 1 | |
| 55-2957 | SCREW - angle | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 29 | 91-1769 | STOP - control box | 1 | |
| 55-1587 | SCREW - stop | 1 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 30 | 91-3597 | HINGE - box & cover | 1 | |
| 55-1587 | SCREW - hinge | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 31 | 41-1793 | HARNESS - switch (host/zone 1) | 1 | |
| 32 | 44-5630 | PLUG (2-pin) | 2 | |
| 33 | 41-1795 | HARNESS - evaporator (zone 2) | 1 | |
| 34 | 44-5030 | CONNECTOR (6-pin) | 1 | |
| 35 | 44-5622 | CONNECTOR (6-pin) | 1 | |
| 36 | 41-1791 | SWITCH - assembly | 1 | |
| 37 | 44-7792 | SWITCH (1pst) | 1 | |
|
10-44-7792 | Выключатель однополюсный, SB-II/III / SMX/SMX-II / SL-300/400 | 3 640 ₽ |
|
| 38 | 44-9631 | CONNECTOR (3-pin) | 2 | |
| 39 | 44-9544 | RECEPTACLE (3-pin) | 2 | |
| 40 | 44-5719 | CONNECTOR (8-pin) | 1 | |
| 41 | 41-1794 | HARNESS - switch (zone 2) | 1 | |
| 42 | 41-1785 | HARNESS - alternator | 1 | |
| 43 | 55-3000 | SCREW - ground | 1 | |
| 55-2965 | NUT | 2 | ||
| 55-2996 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 |
