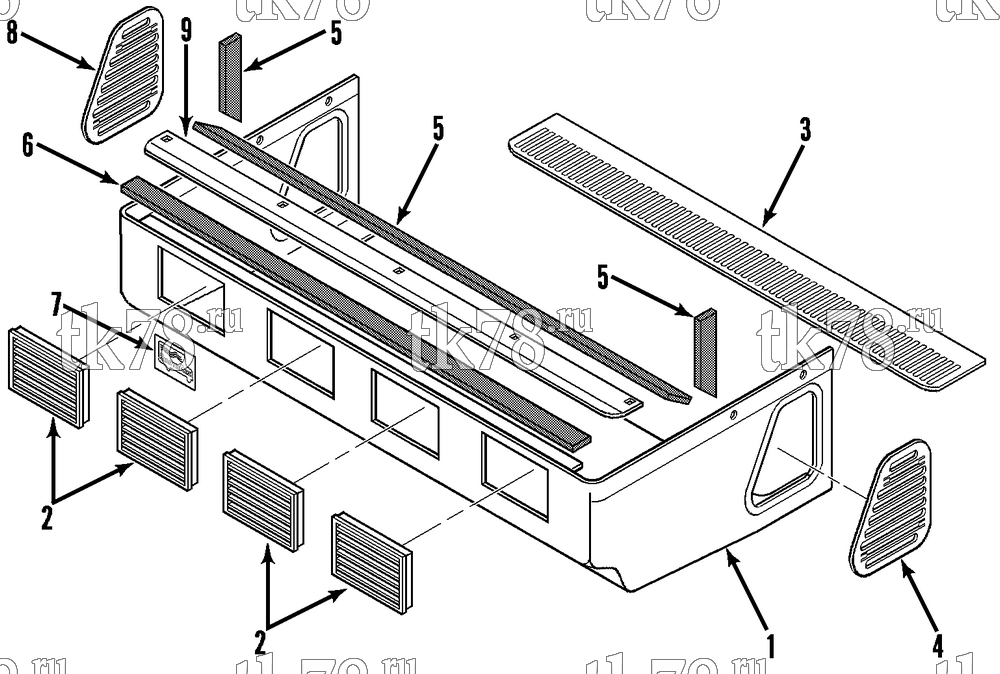

Установкa Thermo King схема EVAPORATOR COVER (S-30 II) – 133F7
Обновление от: 3/2/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5009 | HOOD - evaporator | 1 | |
| 2 | 91-7521 | LOUVER - hood | 4 | |
| 3 | 91-7533 | GRILLE - bottom | 1 | |
| 4 | 91-7581 | GRILLE - side (left) | 1 | |
| 5 | 33-2411 | INSULATION (12 x 30 mm) | A/R | |
| 6 | 99-5966 | STRIP - gasket (6 x 25 mm) | A/R | |
| 7 | 91-7522 | NAMEPLATE - ShuttleAIRE | 1 | |
| 8 | 91-7534 | GRILLE - side (right) | 1 | |
| 9 | 91-7523 | BRACKET - hood | 1 | |
| 55-3098 | SCREW - bracket | 5 | ||
| 55-3059 | NUT | 5 |
