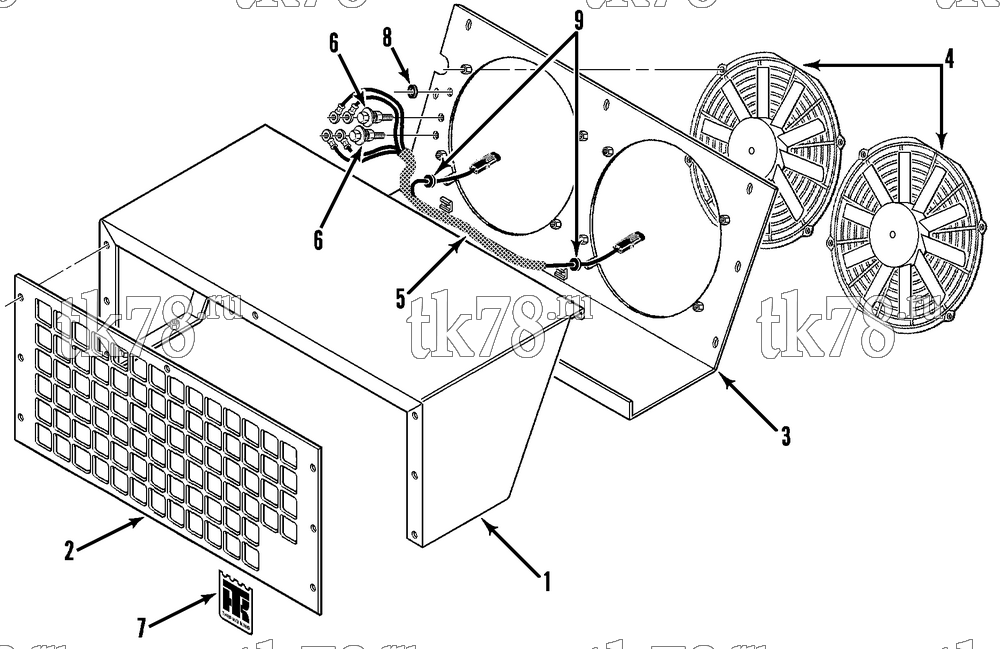

Установкa Thermo King схема CONDENSER FRAME & FANS (S-20 II) – 133F3
Обновление от: 4/6/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4991 | FRAME - condenser (S- 20II 12V) | 1 | |
| 2 | 98-4992 | GRILLE - condenser | 1 | |
| 55-1587 | SCREW - grille | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 3 | 98-4993 | HOUSING - fan | 1 | |
| 55-1587 | SCREW - housing | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 4 | 78-1021 | FAN - condenser (12V) | 2 | |
| 78-1022 | FAN - condenser (24V) | 2 | ||
| 55-1587 | SCREW - fan | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 5 | 41-1716 | HARNESS - condenser | 1 | |
| 6 | 55-2979 | SCREW - terminal | 2 | |
| 55-8120 | WASHER - insulating (shoulder) | 2 | ||
| 55-8121 | WASHER - insulating | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-2993 | LOCKWASHER (internal tooth) | 4 | ||
| 55-3472 | NUT | 4 | ||
| 7 | 91-3247 | NAMEPLATE - TK | 1 | |
| 8 | 33-314 | GROMMET (5/16 id) | 1 | |
| 9 | 33-451 | GROMMET (3/8 id) | 2 | |
| 33-415 | GROMMET (5/8 id) | 1 |
