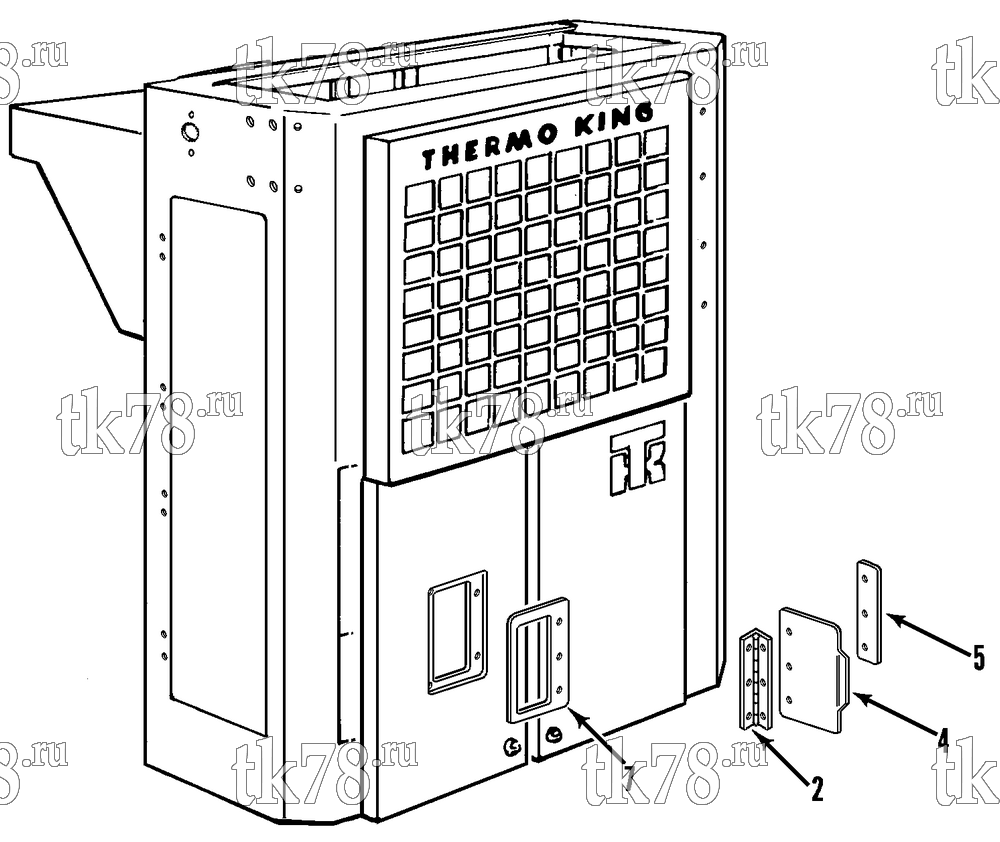

Установкa Thermo King схема ACCESS DOOR – 133C14
Обновление от: 5/14/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5033 | DOOR | 1 | |
| 2 | 99-9487 | HINGE - door | 1 | |
| 3 | 55-2994 | SCREW - hinge | 5 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-3008 | WASHER - sealing | 3 | ||
| 4 | 99-9486 | DOOR - cover | 1 | |
| 5 | 99-9489 | PLATE - door | 1 | |
| 6 | 33-1804 | GROMMET - bumper | 2 | |
| 7 | 99-9488 | NAMEPLATE - Blackout | 1 |
