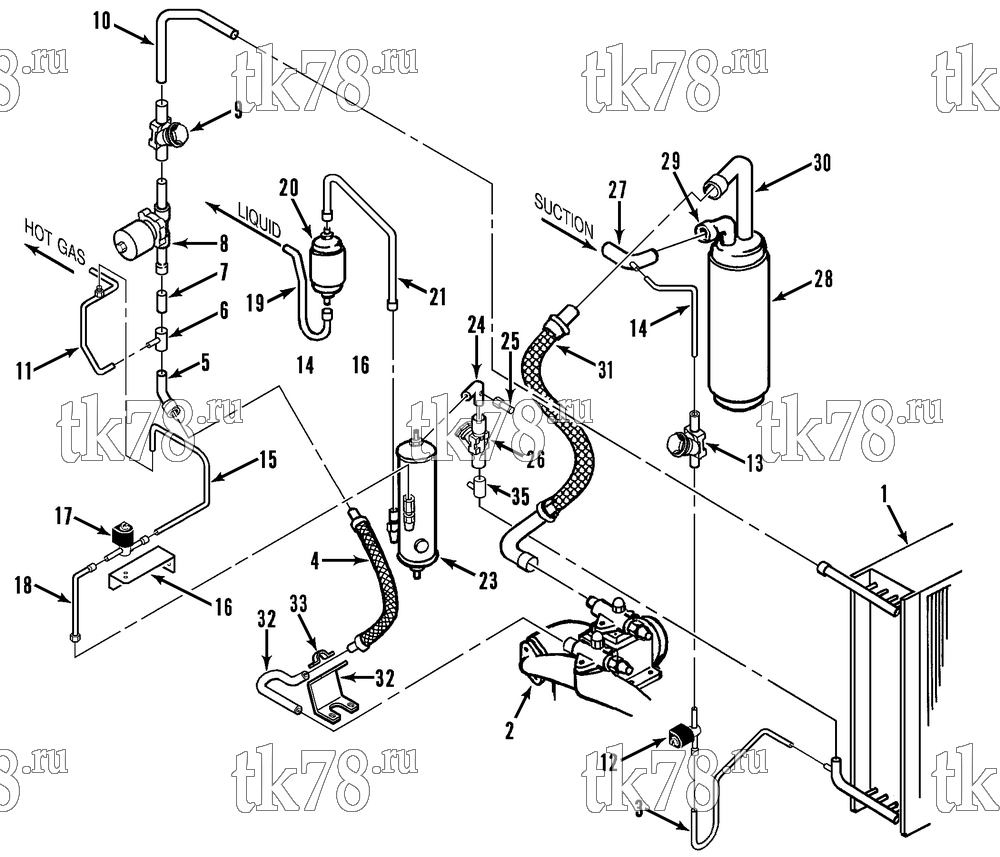

Установкa Thermo King схема REFRIGERATION CONDENSER (7/95 & After) – 131C1
Обновление от: 4/20/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-681 | COIL - condenser (see 97B1) | 1 | |
| 67-1176 | COIL - condenser (vinyl dip, see 97B1) | 1 | ||
| 2 | N/A | COMPRESSOR - X430 (R502, see 97A9) | 1 | |
| N/A | COMPRESSOR - X430 (R404B, see 124C11) | 1 | ||
| 3 | 66-8195 | TUBE - condenser to solenoid valve | 1 | |
| 4 | 66-8666 | VIBRASORBER - discharge | 1 | |
| 5 | 66-7274 | TUBE - tee to vibrasorber | 1 | |
| 6 | 55-3518 | TEE | 1 | |
| 7 | 66-7275 | TUBE - tee to solenoid | 1 | |
| 8 | 61-1300 | VALVE - solenoid (see 127B14) | 1 | |
|
61-1300 OEM | Клапан Ø 18мм, SB/SB-III/SMX/SMX-II/MD-II/RD-II/SL/SLX/SLXe | 41 690 ₽ |
|
| 55-3029 | SCREW - coil | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 9 | 66-6586 | VALVE - check (see 106C14) | 1 | |
| 10 | 66-8190 | TUBE - check valve to condenser inlet | 1 | |
| 11 | 66-8191 | TUBE - tee to bulkhead | 1 | |
| 66-5752 | FITTING | 1 | ||
| 12 | 66-7636 | VALVE - pilot solenoid | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 13 | 66-3653 | VALVE - check | 1 | |
|
10-66-3653 | Проверочный клапан 1/4 | 10 160 ₽ |
|
| 14 | 66-8194 | TUBE - solenoid to suction elbow | 1 | |
| 15 | 66-8192 | TUBE - discharge to solenoid | 1 | |
| 16 | 91-5513 | BRACKET - solenoid | 1 | |
| 55-145 | SCREW - bracket | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-6852 | INSERT | 2 | ||
| 17 | 66-7636 | VALVE - pilot solenoid | 1 | |
|
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 41-1521 | COIL | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 55-1384 | SCREW - valve | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 18 | 66-8193 | TUBE - receiver to solenoid | 1 | |
| 55-7119 | CLAMP - tube | 2 | ||
| 55-7631 | SCREW - clamp | 1 | ||
| 19 | 66-5753 | TUBE - drier to bulkhead | 1 | |
| 20 | 61-600 | DEHYDRATOR (see 97A14) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 21 | 66-5787 | TUBE - receiver to dehydrator | 1 | |
| 22 | 66-5501 | VALVE - check (see note) | 1 | |
| 23 | 67-1179 | TANK - receiver (see 96B7) | 1 | |
| 24 | 66-8224 | TUBE - check valve | 1 | |
| 55-3295 | FITTING - saddle | 1 | ||
| 25 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 26 | 66-3655 | VALVE - check (1/2 od) | 1 | |
| 27 | 66-8226 | ELBOW - suction | 1 | |
| 66-5752 | FITTING | 1 | ||
| 28 | 67-1174 | TANK - accumulator (see 97A12) | 1 | |
| 29 | 66-4270 | ELBOW | 1 | |
| 30 | 66-3257 | ELBOW | 1 | |
| 31 | 66-6621 | VIBRASORBER - suction | 1 | |
|
30-66-6621 | Трубка | 29 000 ₽ |
|
| 32 | 66-8057 | TUBE - discharge valve | 1 | |
| 33 | 91-6972 | BRACKET - discharge tube | 1 | |
| 34 | 91-6973 | CLAMP - discharge vibrasorber | 1 | |
| 55-145 | SCREW - clamp | 2 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-291 | NUT | 2 | ||
| 35 | 66-8225 | TUBE - condenser to check valve | 1 |
