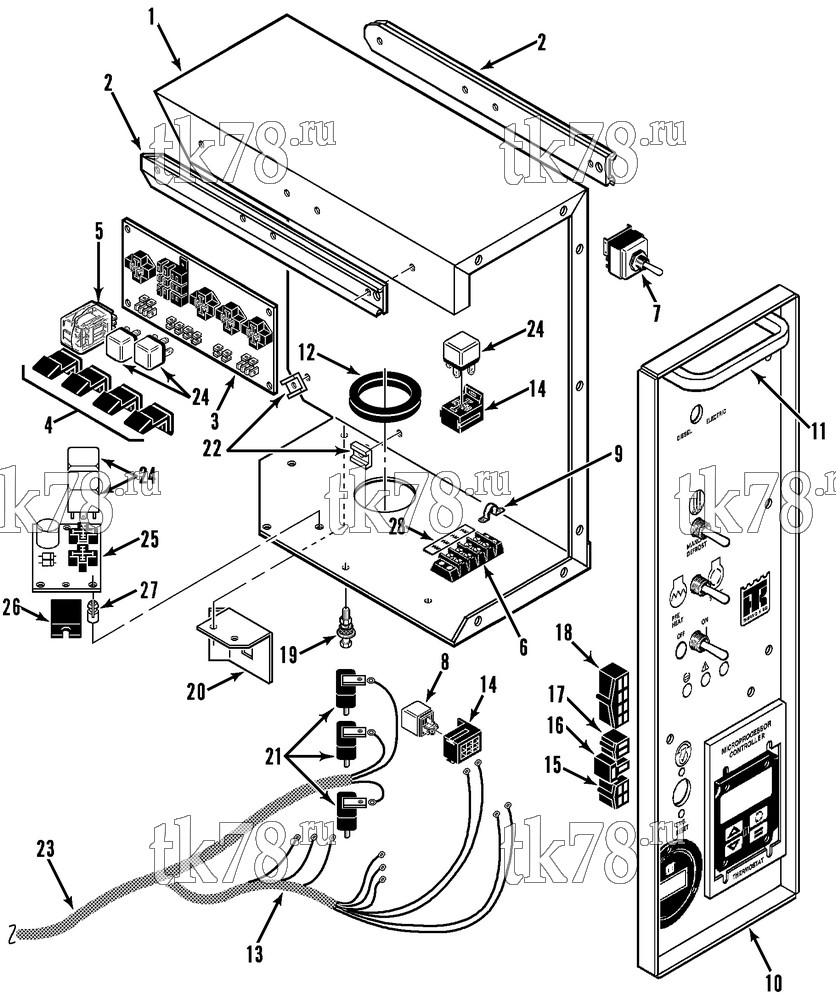

Установкa Thermo King схема CONTROL BOX ASSEMBLY (TG V EMEIA, 5/96 & After) – 131A9
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-7427 | BRACKET - slide | 1 | |
| 2 | 91-5807 | SLIDE - chassis | 2 | |
| 55-3443 | SCREW - slide | 8 | ||
| 55-2201 | FLATWASHER | 8 | ||
| 55-4223 | NUT | 8 | ||
| 3 | 41-290 | BOARD - relay | 1 | |
| 55-4222 | SCREW - board | 2 | ||
| 55-2998 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-8663 | FLATWASHER (nylon) | 4 | ||
| 4 | 91-1277 | RETAINER - harness connector | 4 | |
| 55-2262 | RIVET - retainer | 4 | ||
| 55-3550 | FLATWASHER | 4 | ||
| 5 | 44-3186 | RELAY (3pdt) | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 99-2027 | SPRING - holddown | 1 | ||
| 55-2262 | RIVET - spring | 2 | ||
| 55-2771 | CLAMP - speednut | 1 | ||
| 6 | 44-9428 | BOARD - terminal | 1 | |
| 55-3684 | SCREW - terminal board | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 7 | 44-709 | SWITCH - diesel/electric | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 8 | 41-478 | RELAY - mini | 1 | |
| 55-5975 | SCREW - relay | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 9 | 44-2915 | STRIP - jumper | 1 | |
| 10 | NSS | PANEL - front (see 114A8) | 1 | |
| 55-3099 | SCREW - panel | 5 | ||
| 55-2964 | LOCKWASHER | 5 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 11 | 91-2596 | HANDLE - pull | 1 | |
| 55-3099 | SCREW - panel | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 12 | 33-930 | GROMMET (2-1/8 id) | 1 | |
| 13 | 41-1649 | HARNESS - main | 1 | |
| 14 | 44-5537 | SOCKET - relay | 1 | |
| 15 | 44-5814 | CONNECTOR (4-pin) | 2 | |
| 16 | 44-6519 | CONNECTOR (2-pin) | 1 | |
| 17 | 44-5219 | CONNECTOR (2-pin, male) | 1 | |
| 44-5622 | CONNECTOR (6-pin) | 1 | ||
| 44-5030 | CONNECTOR (1-pin) | 4 | ||
| 18 | 44-5719 | CONNECTOR (8-pin) | 1 | |
| 44-5630 | TERMINAL - fingrip | A/R | ||
| 19 | 55-3000 | SCREW - ground | 2 | |
| 55-2001 | FLATWASHER | 4 | ||
| 55-2996 | LOCKWASHER (internal tooth) | 4 | ||
| 55-346 | NUT | 4 | ||
| 20 | 91-2527 | ANGLE - slide | 1 | |
| 55-3015 | SCREW - angle | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 21 | 44-3531 | BREAKER - circuit (auto reset) | 3 | |
| 55-2965 | NUT - breaker | 6 | ||
| 55-2996 | LOCKWASHER | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-3099 | SCREW - circuit breaker | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 22 | 99-3281 | MOUNT - cable tie | 7 | |
| 55-5130 | RIVET - mount | 7 | ||
| 23 | 41-483 | HARNESS - evaporator | 1 | |
| 24 | 41-895 | RELAY - mini | 6 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 25 | 41-2190 | BOARD - pc (fuel solenoid timer) | 1 | |
| 26 | 91-1277 | RETAINER - harness connector | 1 | |
| 55-2262 | RIVET - retainer | 1 | ||
| 55-3550 | FLATWASHER | 1 | ||
| 27 | 55-8430 | SPACER - pc board | 3 | |
| 55-3511 | SCREW - board | 3 | ||
| 55-3800 | LOCKWASHER (internal tooth) | 3 | ||
| 55-2201 | FLATWASHER | 3 | ||
| 55-8663 | WASHER (nylon) | 3 | ||
| 28 | 91-8021 | MARKSTRIP | 1 |
