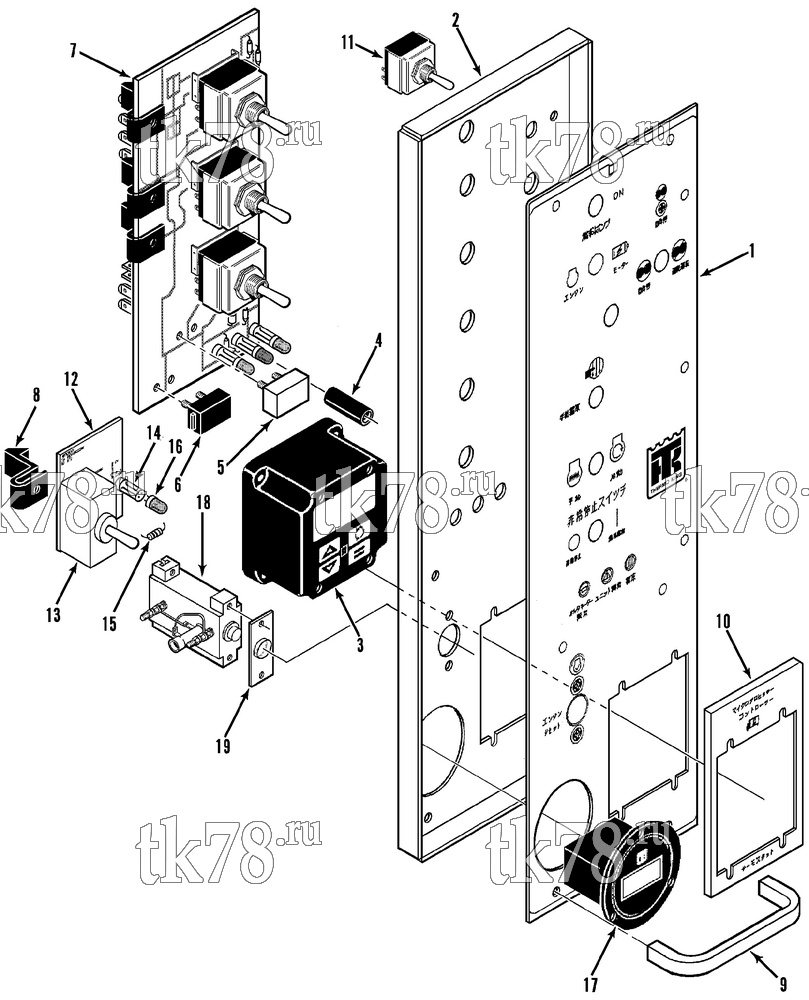

Установкa Thermo King схема SWITCH PANEL ASSEMBLY (TG V JAPAN) – 131A11
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-1726 | PANEL - switch | 1 | ||
| 1 | 91-7430 | NAMEPLATE - switch panel (Japan) | 1 | |
| 2 | 91-7429 | PANEL - switch (Japan) | 1 | |
| 3 | 45-1579 | THERMOSTAT - TG V | 1 | |
| 92-6219 | FACEPLATE - TG V (includes 91-4642 overlay) | 1 | ||
| 91-4642 | OVERLAY - TG V (transparent) | 1 | ||
| 33-2128 | GASKET - thermostat | 4 | ||
| 55-3443 | SCREW - thermostat | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 4 | 98-771 | HOSE - light shield | 3 | |
| 5 | 44-7903 | BREAKER - circuit (auto reset, 25 amp) | 1 | |
|
30-44-7903 | Предохранитель 20А | 1 030 ₽ |
|
| 6 | 41-1964 | BREAKER - circuit (auto reset, 50 amp) | 1 | |
| 44-7438 | JUMPER | 1 | ||
| 55-2965 | NUT - breaker | 6 | ||
| 55-2996 | LOCKWASHER | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 7 | 44-9003 | BOARD - pc switch (see 137B6) | 1 | |
| 8 | 91-1277 | RETAINER - harness connector | 1 | |
| 55-2262 | RIVET - retainer | 1 | ||
| 55-3550 | FLATWASHER | 1 | ||
| 9 | 91-2596 | HANDLE - pull | 1 | |
| 55-3015 | SCREW - handle | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 10 | 91-7431 | PANEL - thermo (TG V) | 1 | |
| 11 | 44-1164 | SWITCH - fuel pump | 1 | |
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
| 12 | 44-8464 | BOARD - Cycle Sentry switch | 1 | |
| 13 | 44-8866 | SWITCH - Cycle Sentry | 1 | |
| 14 | 44-8865 | DIODE - LED (green) | 1 | |
| 15 | 44-7272 | RESISTOR (1000 ohm) | 1 | |
| 16 | 91-2532 | SPACER - LED | 1 | |
| 17 | 44-8764 | HOURMETER | 1 | |
|
10-44-8764 | Счетчик часов | 7 260 ₽ |
|
| 18 | 40-1082 | SWITCH - cutout (assembly) | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-1556 | RESISTOR - cutout switch | 1 | ||
|
10-44-1556 | Резистор теплового реле, 12V 5Ω | 1 230 ₽ |
|
| 55-3443 | SCREW - switch | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 19 | 44-2119 | SEAL - pushbutton | 1 |
