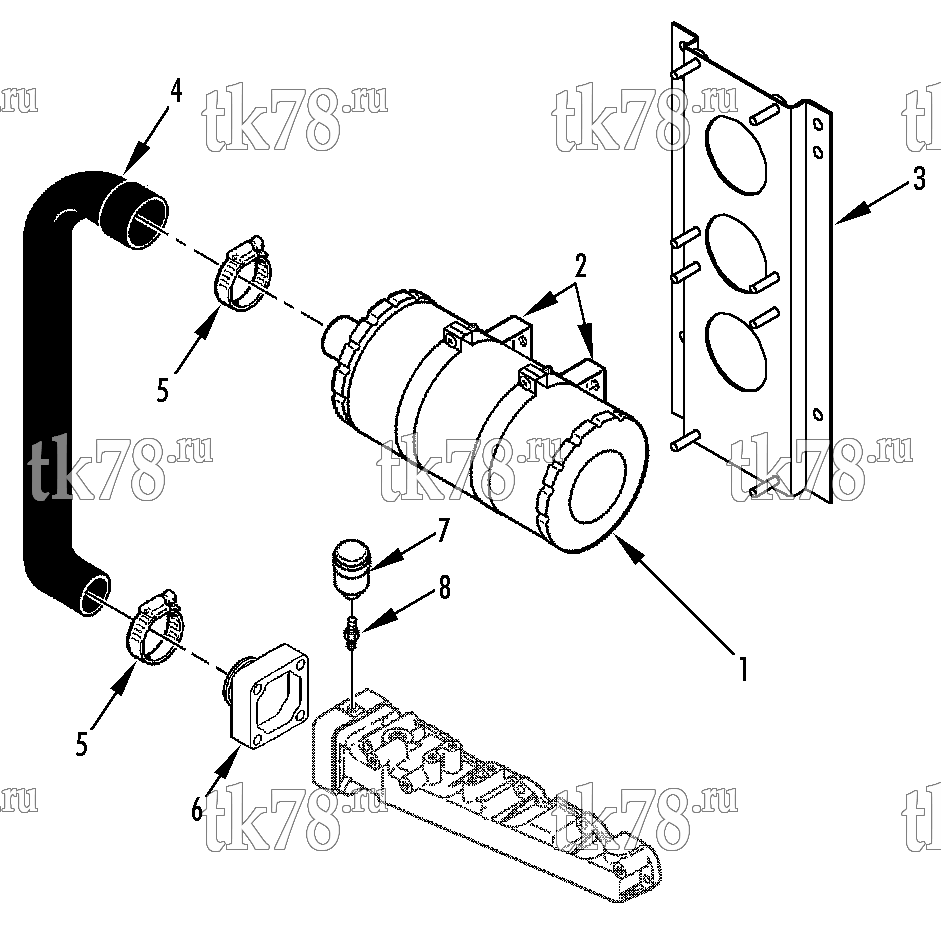

Установкa Thermo King схема AIR CLEANER GROUP – 130D12
Обновление от: 4/21/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-7400 | FILTER - air cleaner | 1 | |
|
11-7400 OEM | Фильтр воздушный, SB/SMX | 3 460 ₽ |
|
|
US-11-7400 | Фильтр воздушный, SB/SMX | 2 460 ₽ |
|
|
10-11-7400 | Фильтр воздушный, SB/SMX | 1 590 ₽ |
|
| 2 | 11-5562 | CLAMP - air cleaner | 2 | |
| 55-3142 | SCREW - clamp | 4 | ||
| 55-371 | FLATWASHER | 8 | ||
| 55-4967 | NUT | 4 | ||
| 3 | 91-3897 | BRACKET - air cleaner | 1 | |
| 55-4967 | NUT - bracket | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 4 | 11-8709 | HOSE - air cleaner | 1 | |
| 5 | 55-1636 | CLAMP - hose | 2 | |
| 6 | 11-9266 | FLANGE - air intake (see 128G14 or 142F4) | 1 | |
| 7 | 11-7757 | INDICATOR - air restrictor | 1 | |
|
10-11-7757 | Индикатор засорения | 6 410 ₽ |
|
| 8 | 11-7828 | FITTING - indicator | 1 |
