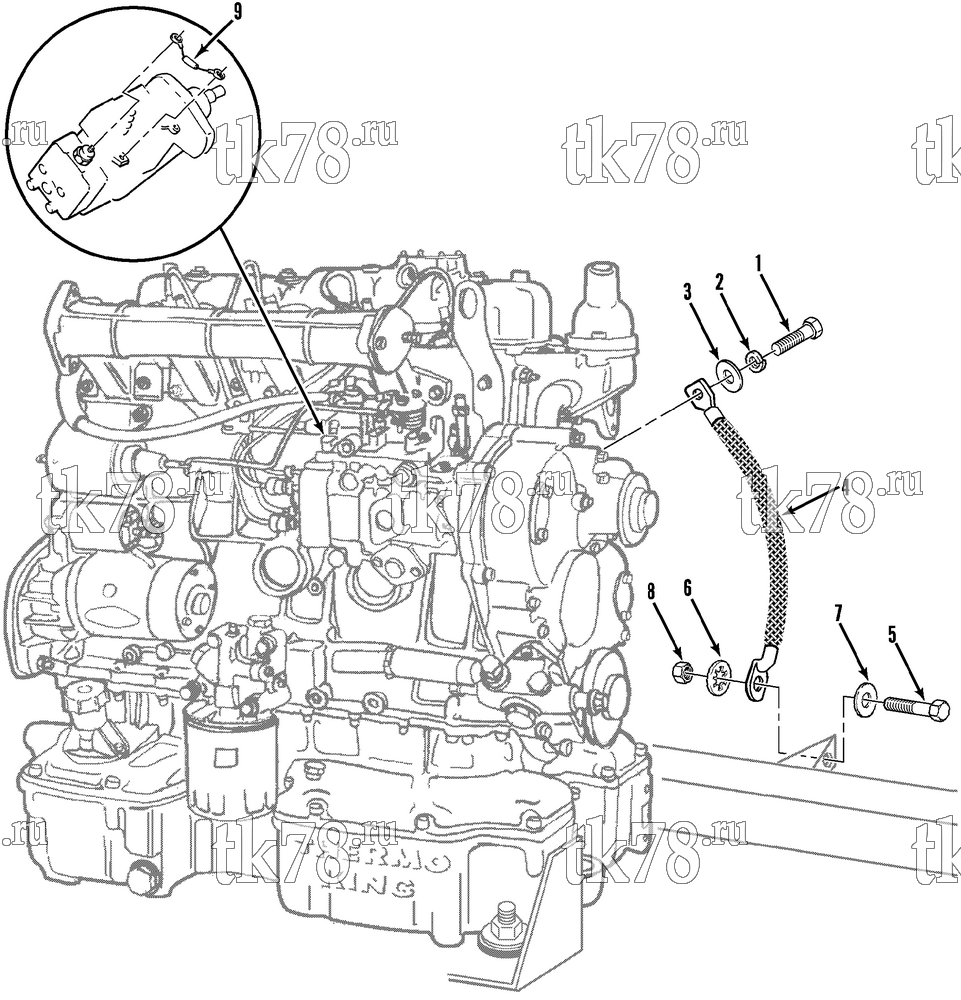

Установкa Thermo King схема GROUND STRAP - INJECTION PUMP DIODE – 130C11
Обновление от: 1/20/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-5022 | SCREW - strap to engine | 1 | |
| 2 | 55-3238 | LOCKWASHER | 2 | |
| 3 | 55-2958 | FLATWASHER | 2 | |
| 4 | 44-4423 | STRAP - ground | 1 | |
| 5 | 55-789 | SCREW - strap to frame | 1 | |
| 6 | 55-3066 | LOCKWASHER (internal tooth) | 2 | |
| 7 | 55-448 | FLATWASHER | 2 | |
| 8 | 55-301 | NUT | 1 | |
| 9 | 44-7663 | DIODE - injection pump | 1 | |
| 55-5955 | SCREW - diode | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2993 | LOCKWASHER | 1 |
