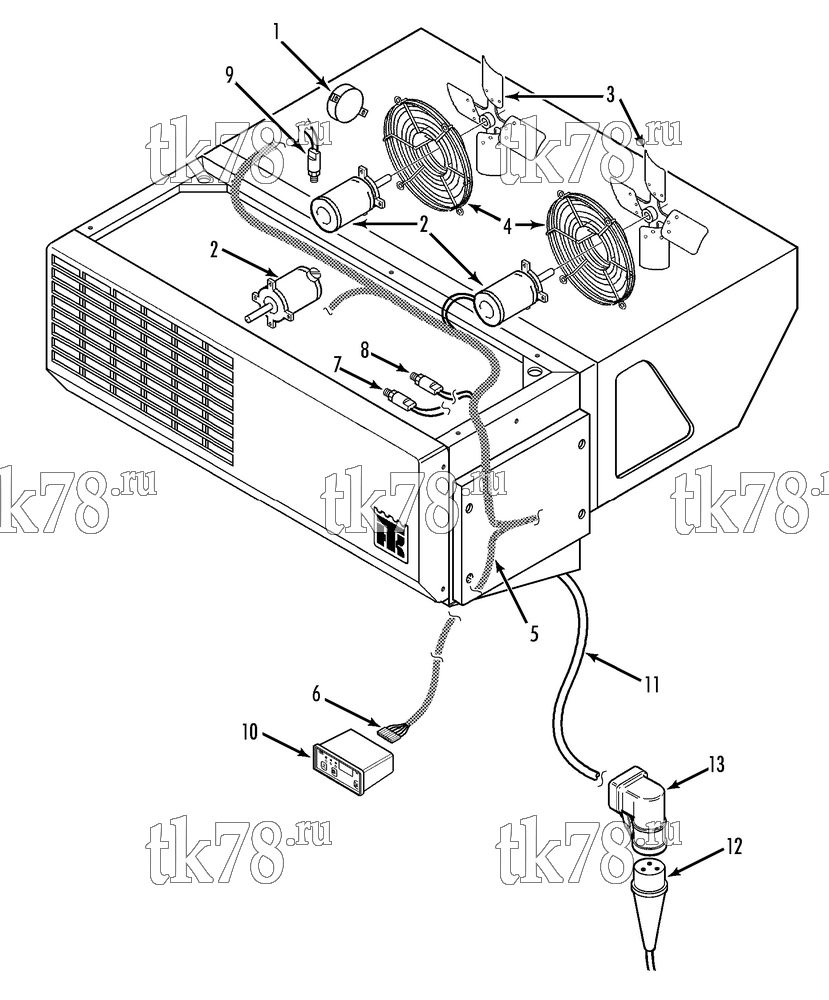

Установкa Thermo King схема ELECTRICAL COMPONENTS (VM-300 & VM-305) – 130B13
Обновление от: 1/15/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-3136 | SWITCH - defrost termination | 1 | |
| 55-8238 | SCREW - switch | 2 | ||
| 2 | 41-2281 | MOTOR (14V) | 3 | |
|
10-41-2281 | Электромотор вентилятора 12V, V/VM-Series | 8 750 ₽ |
|
| 41-2282 | MOTOR (27V) | 3 | ||
| 41-2501 | BRUSH - motor | 4 | ||
| 41-934 | CAP - brush | 4 | ||
| 22-988 | SEAL - shaft | 2 | ||
| 3 | 78-964 | FAN | 2 | |
| 4 | 91-6350 | GUARD - fan | 2 | |
| 55-8581 | SCREW - guard | 16 | ||
| 55-8893 | FLATWASHER | 16 | ||
| 55-6996 | LOCKWASHER | 16 | ||
| 5 | 41-1517 | HARNESS - main (early units) | 1 | |
| 41-3133 | HARNESS - main | 1 | ||
| 6 | 41-4528 | CONNECTOR (10-pin) | 1 | |
| 7 | 44-5305 | SWITCH - hpco | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 8 | 41-886 | SWITCH - condenser fan | 1 | |
| 9 | 44-6132 | SWITCH - lpco | 1 | |
| 10 | 45-1735 | BOX - cab control (see 130A11, early units) | 1 | |
| 45-1771 | BOX - cab control (see 154E2, current units) | 1 | ||
| 11 | 41-1518 | HARNESS - power | 1 | |
| 12 | 41-2026 | PLUG - power (380/3/50, mates w/ 41-978) | 1 | |
| 13 | 41-978 | RECEPTACLE - power (380/3/50, mates w/ 41-2026) | 1 | |
| 33-2684 | GASKET | 1 |
