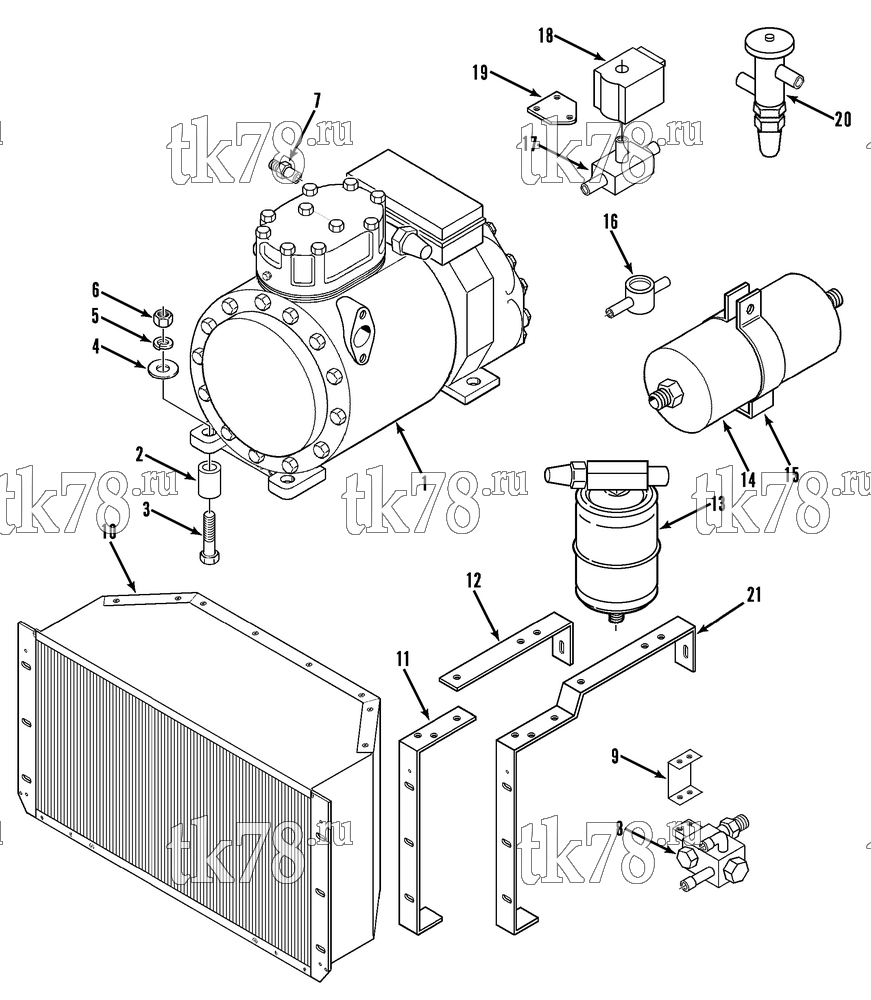

Установкa Thermo King схема REFRIGERATION GROUP (VM-305) – 130B12
Обновление от: 4/14/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-565 | COMPRESSOR (220-240/3/50, B1.5 9, R134a) | 1 | |
| 102-656 | COMPRESSOR (220-240/1/50, B1.5 9, R134a) | 1 | ||
| 2 | 51-173 | SPACER - compressor | 4 | |
| 3 | 55-7660 | SCREW - compressor | 4 | |
| 4 | 55-7085 | FLATWASHER | 4 | |
| 5 | 55-8577 | WASHER - special | 4 | |
| 6 | 55-8578 | NUT | 4 | |
| 7 | 55-8579 | FITTING - straight | 1 | |
| 8 | 61-3023 | VALVE - check (see 130B4) | 1 | |
| 55-8580 | SCREW - manifold | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 9 | 91-7174 | BRACKET - discharge manifold (used on early units) | 1 | |
| 33-2801 | GROMMET | 1 | ||
| 55-8581 | SCREW - bracket | 2 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 10 | 67-1265 | COIL - condenser | 1 | |
| 55-7172 | SCREW - coil | 6 | ||
| 55-8893 | FLATWASHER | 9 | ||
| 55-6996 | LOCKWASHER | 6 | ||
| 55-7354 | NUT | 3 | ||
| 11 | 91-6331 | BRACKET - condenser coil (early units) | 1 | |
| 12 | 91-6333 | ANGLE - brace (early units) | 1 | |
| 55-8581 | SCREW - bracket | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 55-7354 | NUT | 4 | ||
| 13 | 67-1798 | TANK - receiver (early units) | 1 | |
| 55-8548 | FLATWASHER | 1 | ||
| 14 | 66-7701 | DEHYDRATOR (early units) | 1 | |
| 66-8471 | DEHYDRATOR (current units) | 1 | ||
|
14-00326-03 OEM | Дегидратор, Supra/Xarios/Citimax | 5 870 ₽ |
|
|
P-14-00326-03 | Дегидратор, Supra/Xarios/Citimax | 2 820 ₽ |
|
|
PP-14-00326-03 | Дегидратор, Supra/Xarios/Citimax | 1 300 ₽ |
|
| 55-8550 | SCREW - dehydrator | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7354 | NUT | 1 | ||
| 15 | 91-6408 | HANGER - dehydrator | 1 | |
| 55-8550 | SCREW - hanger | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7354 | NUT | 1 | ||
| 16 | 61-4565 | INDICATOR - liquid | 1 | |
| 17 | 66-7878 | BODY - solenoid (BIT, TC & TCI require 3 solenoids) | 3 | |
| 18 | 41-5047 | COIL - solenoid (12V) | 1 | |
| 41-5051 | COIL - valve (24V) | 1 | ||
| 55-8531 | SCREW - coil | 1 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 19 | 91-6416 | BRACKET - solenoid | 1 | |
| 55-7036 | SCREW - bracket | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 20 | 66-7689 | VALVE - expansion (early units) | 1 | |
| 66-9314 | VALVE - expansion (current units) | 1 | ||
|
66-9314 OEM | ТРВ, V/VM-Series MAX (R404A) | 31 890 ₽ |
|
| 66-7678 | ORIFICE (early units) | 1 | ||
| 61-1126 | ORIFICE (current units) | 1 | ||
| 203-534 | TAPE - insulating | A/R | ||
| 21 | 91-9603 | BRACKET - condenser coil (current units) | 1 |
