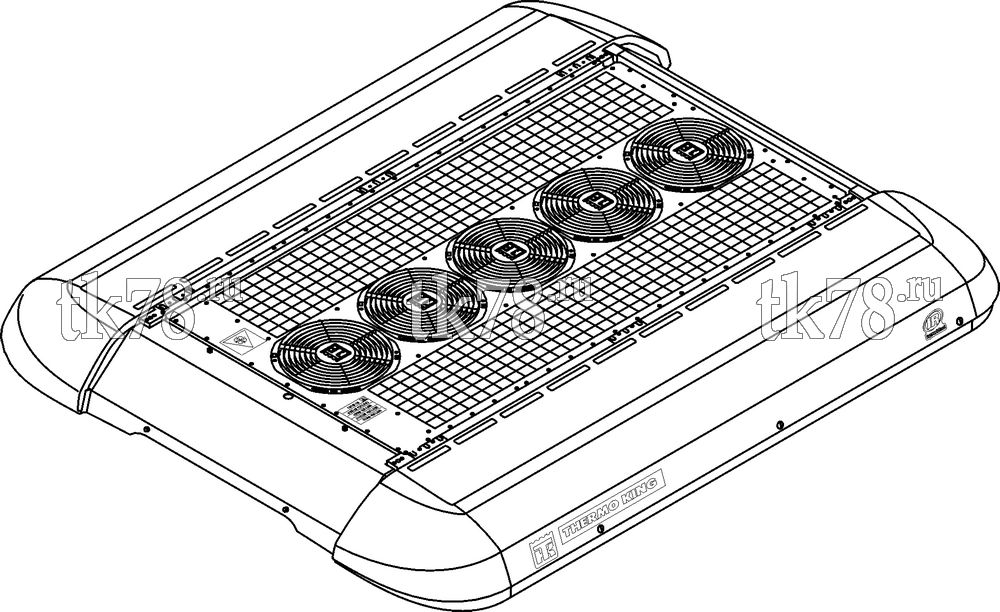

Установкa Thermo King схема ATHENIA S960 N/W 1000, 1004 – 12U46
Обновление от: 8/13/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 900573 | System ATHENIA S960 N, 1000, R134a | 5/07 | ||
| 900574 | System ATHENIA S960 N, 1004, R134a | 5/07 | ||
| 900575 | System ATHENIA S960 W, 1000, R134a | 5/07 | ||
| 900576 | System ATHENIA S960 W, 1004, R134a | 5/07 | ||
| 007376 | Air Intake Module NARROW-SHORT L2 w/ Fresh Air Damper 100% | 5/07 | ||
| 007377 | Air Intake Module NARROW-SHORT L2 w/o Fresh Air Damper 100% | 5/07 | ||
| 007378 | Air Intake Module WIDE-SHORT L2 w/ Fresh Air Damper 100% | 5/07 | ||
| 007379 | Air Intake Module WIDE-SHORT L2 w/o Fresh Air Damper 100% | 5/07 | ||
| 007352 | Plate with Brush Type Blowers w/o Nuts | 5/07 | ||
| 720756 | ClimaAIRE II DP with Display w/ Harness (Unit - Driver panel - 9 m length) | 5/07 | ||
| 720757 | ClimaAIRE II DP with Display w/ Harness (Unit - Driver panel - 12 m length) | 5/07 | ||
| 720811 | ClimaAIRE II DP with Display w/ Harness (Unit - Driver panel - 15 m length) | 5/07 | ||
| 720758 | ClimaAIRE II DP with Display w/ Harness (Unit - Driver panel - 18 m length) | 5/07 | ||
| 700563 | ClimaAIRE II DP with Display w/ Harness (Unit - Driver panel - 9 m length) | 5/07 | ||
| 700564 | ClimaAIRE II DP with Display w/ Harness (Unit - Driver panel - 12 m length) | 5/07 | ||
| 700460 | ClimaAIRE II DP with Display w/ Harness (Unit - Driver panel - 15 m length) | 5/07 | ||
| 700565 | ClimaAIRE II DP with Display w/ Harness (Unit - Driver panel - 18 m length) | 5/07 | ||
| 700634 | ClimaAIRE I D with Harness 6 m | 5/07 | ||
| 700635 | ClimaAIRE I D with Harness 8 m | 5/07 | ||
| 700636 | ClimaAIRE I D with Harness 10 m | 5/07 | ||
| 700637 | ClimaAIRE I D with Harness 12 m | 5/07 | ||
| 700638 | ClimaAIRE I D with Harness 14 m | 5/07 | ||
| 700639 | ClimaAIRE I D with Harness 16 m | 5/07 | ||
| 700640 | ClimaAIRE I D with Harness 18 m | 5/07 | ||
| 719302 | Harness ClimaAIRE (Unit - Compressor - 8.3 m length) | 5/07 | ||
| 719343 | Harness ClimaAIRE (Unit - Compressor - 10 m length) | 5/07 | ||
| 720028 | Harness ClimaAIRE (Unit - Compressor - 14 m length) | 5/07 | ||
| 700504 | Harness ClimaAIRE (Unit - Compressor - 8.3 m length) | 5/07 | ||
| 700507 | Harness ClimaAIRE (Unit - Compressor -10 m length) | 5/07 | ||
| 700505 | Harness ClimaAIRE (Unit -Compressor -14 m length) | 5/07 | ||
| 700566 | Harness ClimaAIRE (Unit - Compressor - 8.3 m length) | 5/07 | ||
| 700567 | Harness ClimaAIRE (Unit - Compressor -10 m length) | 5/07 | ||
| 700461 | Harness ClimaAIRE (Unit - Compressor -14 m length) | 5/07 | ||
| 880269 | Kit - Installation Athenia | 5/07 | ||
| 718220 | Compressor X430, 24V, Pulley 2B/2A; Dia. 9"" | 5/07 | ||
| 720587 | Compressor X430-HPC, R134a, 24V, Pulley 2B/2A, 8.03"/ 8.89""" | 5/07 | ||
| 720702 | Compressor S616, 24V, Pulley 2-5V, 7,75", CAII" | 5/07 | ||
| 700470 | Compressor S616, no Pulley, CAII | 5/07 | ||
| 700574 | Compressor S391-HPC, R134A, Pulley 2B/2A | 5/07 | ||
| 880110 | Kit - Adapters for X430 Compressor (#16, #20) | 5/07 | ||
| 700474 | Kit - Adapters for Screw Compressors (#16, #20) | 5/07 | ||
| 720208 | Kit - Fittings Refrigerant ORS (#20/#16 - S0/D0) | 5/07 | ||
| 720209 | Kit - Fittings Refrigerant ORS (#20/#16 - S45/D45) | 5/07 | ||
| 720210 | Kit - Fittings Refrigerant ORS (#20/#16 - S90/D90) | 5/07 | ||
| 720211 | Kit - Fittings Refrigerant Flange (#20/#16 - S0/D0) | 5/07 | ||
| 720212 | Kit - Fittings Refrigerant Flange (#20/#16 - S90/D90) | 5/07 | ||
| 720213 | Kit - Fittings Refrigerant Flange (#20/#16 - S45/D45) | 5/07 | ||
| 720214 | Kit - Fittings Refrigerant Flange (#20/#16 - S90/D0) | 5/07 | ||
| 720365 | Kit - Fittings Refrigerant Flange (#20/#16 - S0/D90) | 5/07 | ||
| 720366 | Kit - Fittings Refrigerant Flange (#20/#16 - S90/D45) | 5/07 | ||
| 720367 | Kit - Fittings Refrigerant Flange (#20/#16 - S45/D90) | 5/07 | ||
| 720215 | Kit - Hose Refrigerant (#16/#20, 1 m, w/o Fittings) | 5/07 | ||
| 720216 | Kit - Hose Refrigerant (#16/#20, 6 m, w/o Fittings) | 5/07 | ||
| 720217 | Kit - Hose Refrigerant (#16/#20, 7 m, w/o Fittings) | 5/07 | ||
| 720218 | Kit - Hose Refrigerant (#16/#20, 8 m, w/o Fittings) | 5/07 | ||
| 720219 | Kit - Hose Refrigerant (#16/#20, 9 m, w/o Fittings) | 5/07 | ||
| 720220 | Kit - Hose Refrigerant (#16/#20, 10 m, w/o Fittings) | 5/07 | ||
| 720221 | Kit - Hose Refrigerant (#16/#20, 12 m, w/o Fittings) | 5/07 | ||
| 720222 | Kit - Hose Refrigerant (#16/#20, 14 m, w/o Fittings) | 5/07 | ||
| 720223 | Kit - Hose Refrigerant (#16/#20, 16 m, w/o Fittings) | 5/07 | ||
| 720224 | Kit - Hose Refrigerant (#16/#20, 18 m, w/o Fittings) | 5/07 | ||
| 720395 | Kit - Fittings for Tube Installation | 5/07 | ||
| 719004 | Kit - Water Boost Pump 27 VDC; Hose Connections - I.D. 21 mm; for US Only | 5/07 | ||
| 719005 | Kit - Water Boost Pump; 27 VDC; Hose Connections - I.D. 38 mm; 5000l/Hr | 5/07 | ||
| 719006 | Harness (Unit - Water Boost Pump - 14 m length) | 5/07 | ||
| 719007 | Harness (Unit - Water Boost Pump - 9 m length) | 5/07 | ||
| 719008 | Harness (Unit - Water Boost Pump - 7.6 m length) | 5/07 | ||
| 700129 | Kit - Water Valve (2-way, Servomotor) | 5/07 | ||
| 700130 | Kit - Water Valve (3-way, Servomotor) | 5/07 | ||
| 700127 | Kit - Harness (10 m) | 5/07 | ||
| 700128 | Kit - Harness (20 m) | 5/07 | ||
| 700296 | Kit - Floor Temperature Sensor ClimaAIRE II (9 m) | 5/07 | ||
| 719305 | Kit - Alternator 150 A, 24 VDC, 24 V Excitation, 3.25" for ClimaAIRE" | 5/07 | ||
| 719306 | Kit - Alternator 125 A, 24 VDC, 12 V Excitation, 3.25" for ClimaAIRE" | 5/07 | ||
| 709797 | Kit - Alternator 150 A, 24 VDC, 24 V Excitation, 3.25"" | 5/07 | ||
| 711180 | Kit - Alternator 125 A, 24 VDC, 12 V Excitation, 3.25"" | 5/07 | ||
| 715245 | Kit - Muffler | 5/07 | ||
| 700178 | Kit Return Air Grill | 5/07 |
