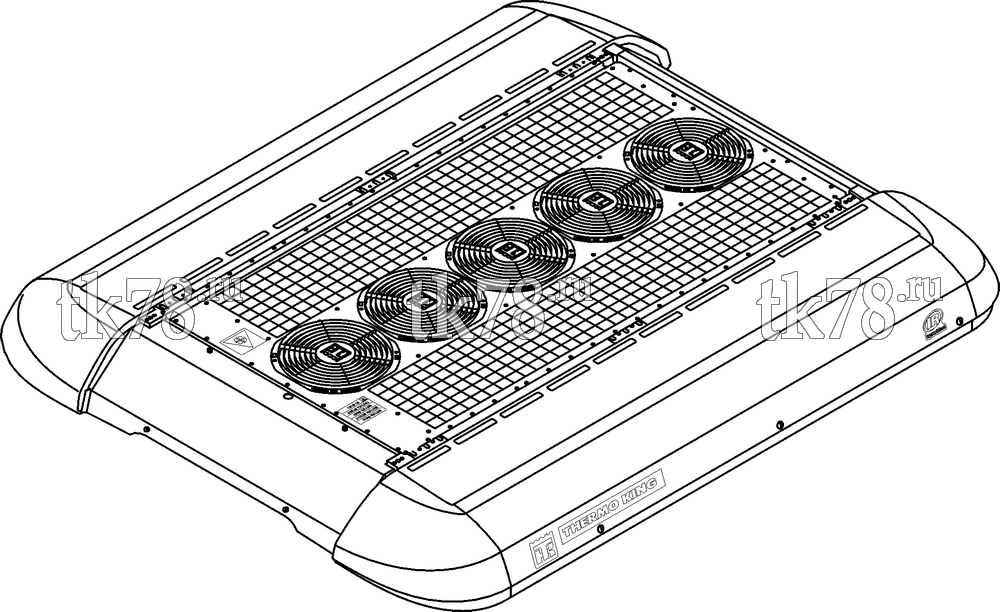

Установкa Thermo King схема ATHENIA S1000 N/W 1000, 1004 Reference Sheet – 12U45
Обновление от: 10/10/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 900577 | System ATHENIA S1000 N, 1000, R407C | 5/07 | ||
| 900578 | System ATHENIA S1000 N, 1004, R407C | 5/07 | ||
| 900579 | System ATHENIA S1000 W, 1000, R407C | 5/07 | ||
| 900580 | System ATHENIA S1000 W, 1004, R407C | 5/07 | ||
| 007376 | Air Intake Module NARROW-SHORT L2 w/ Fresh Air Damper 100% | 5/07 | ||
| 007377 | Air Intake Module NARROW-SHORT L2 w/o Fresh Air Damper 100% | 5/07 | ||
| 007378 | Air Intake Module WIDE-SHORT L2 w/ Fresh Air Damper 100% | 5/07 | ||
| 007379 | Air Intake Module WIDE-SHORT L2 w/o Fresh Air Damper 100% | 5/07 | ||
| 007352 | Plate with Brush Type Blowers w/o Nuts | 5/07 | ||
| 720756 | ClimaAIRE II DP with Display w/ Harness (Unit - Driver panel - 9 m length) | 5/07 | ||
| 720757 | ClimaAIRE II DP with Display w/ Harness (Unit - Driver panel - 12 m length) | 5/07 | ||
| 720811 | ClimaAIRE II DP with Display w/ Harness (Unit - Driver panel - 15 m length) | 5/07 | ||
| 720758 | ClimaAIRE II DP with Display w/ Harness (Unit - Driver panel - 18 m length) | 5/07 | ||
| 700563 | ClimaAIRE II DP with Display w/ Harness (Unit - Driver panel - 9 m length) | 5/07 | ||
| 700564 | ClimaAIRE II DP with Display w/ Harness (Unit - Driver panel - 12 m length) | 5/07 | ||
| 700460 | ClimaAIRE II DP with Display w/ Harness (Unit - Driver panel - 15 m length) | 5/07 | ||
| 700565 | ClimaAIRE II DP with Display w/ Harness (Unit - Driver panel - 18 m length) | 5/07 | ||
| 700634 | ClimaAIRE I D with Harness 6 m | 5/07 | ||
| 700635 | ClimaAIRE I D with Harness 8 m | 5/07 | ||
| 700636 | ClimaAIRE I D with Harness 10 m | 5/07 | ||
| 700637 | ClimaAIRE I D with Harness 12 m | 5/07 | ||
| 700638 | ClimaAIRE I D with Harness 14 m | 5/07 | ||
| 700639 | ClimaAIRE I D with Harness 16 m | 5/07 | ||
| 700640 | ClimaAIRE I D with Harness 18 m | 5/07 | ||
| 719302 | Harness ClimaAIRE (Unit - Compressor - 8.3 m length) | 5/07 | ||
| 719343 | Harness ClimaAIRE (Unit - Compressor - 10 m length) | 5/07 | ||
| 720028 | Harness ClimaAIRE (Unit - Compressor - 14 m length) | 5/07 | ||
| 700504 | Harness ClimaAIRE (Unit - Compressor - 8.3 m length) | 5/07 | ||
| 700507 | Harness ClimaAIRE (Unit - Compressor -10 m length) | 5/07 | ||
| 700505 | Harness ClimaAIRE (Unit -Compressor -14 m length) | 5/07 | ||
| 700566 | Harness ClimaAIRE (Unit - Compressor - 8.3 m length) | 5/07 | ||
| 700567 | Harness ClimaAIRE (Unit - Compressor -10 m length) | 5/07 | ||
| 700461 | Harness ClimaAIRE (Unit - Compressor -14 m length) | 5/07 | ||
| 880269 | Kit - Installation Athenia | 5/07 | ||
| 720591 | Kit - Compressor X430-HPC, R-407C, 24V, Pulley 2B/2A, 8.03"/ 8.89""" | 5/07 | ||
| 700575 | Kit - Compressor S391-HPC, R-407C, Pulley 2B/2A | 5/07 | ||
| 700576 | Kit - Compressor S616-HPC, R-407C, Pulley 2-5V, 207 mm | 5/07 | ||
| 880110 | Kit - Adapters for X430 Compressor (#16, #20) | 5/07 | ||
| 700474 | Kit - Adapters for Screw Compressors (#16, #20) | 5/07 | ||
| 718672 | Kit - Hoses (SS #16, #20 - 0.8 m length & Flange Fitting (Unit), ORS Fitting (Compressor) | 5/07 | ||
| 719004 | Kit - Water Boost Pump 27 VDC; Hose Connections - I.D. 21 mm; for US Only | 5/07 | ||
| 719005 | Kit - Water Boost Pump; 27 VDC; Hose Connections - I.D. 38 mm; 5000l/Hr | 5/07 | ||
| 719006 | Harness (Unit - Water Boost Pump - 14 m length) | 5/07 | ||
| 719007 | Harness (Unit - Water Boost Pump - 9 m length) | 5/07 | ||
| 719008 | Harness (Unit - Water Boost Pump - 7.6 m length) | 5/07 | ||
| 700129 | Kit - Water Valve (2-way, Servomotor) | 5/07 | ||
| 700130 | Kit - Water Valve (3-way, Servomotor) | 5/07 | ||
| 700127 | Kit - Harness (10 m) | 5/07 | ||
| 700128 | Kit - Harness (20 m) | 5/07 | ||
| 700296 | Kit - Floor Temperature Sensor ClimaAIRE II (9 m) | 5/07 | ||
| 719305 | Kit - Alternator 150 A, 24 VDC, 24 V Excitation, 3.25" for ClimaAIRE" | 5/07 | ||
| 719306 | Kit - Alternator 125 A, 24 VDC, 12 V Excitation, 3.25" for ClimaAIRE" | 5/07 | ||
| 709797 | Kit - Alternator 150 A, 24 VDC, 24 V Excitation, 3.25"" | 5/07 | ||
| 711180 | Kit - Alternator 125 A, 24 VDC, 12 V Excitation, 3.25"" | 5/07 | ||
| 720171 | Kit - Muffler (w/o Hose) | 5/07 | ||
| 700178 | Kit - Return Air Grill | 5/07 |
