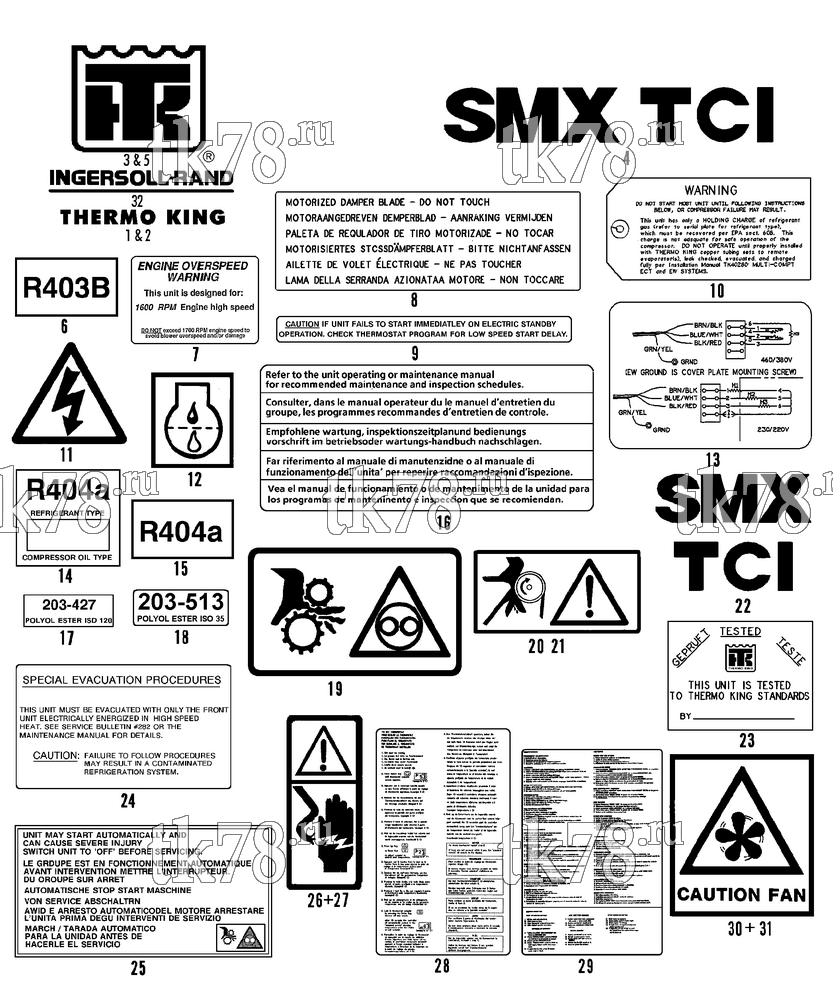

Установкa Thermo King схема NAMEPLATES – 129F13
Обновление от: 4/6/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3476 | NAMEPLATE - Thermo King (black letters) | 1 | |
| 2 | 99-7273 | NAMEPLATE - Thermo King (white letters) | 1 | |
| 3 | 91-3011 | NAMEPLATE - TK (3.2 in wide) | 1 | |
| 4 | 91-7205 | NAMEPLATE - SMX TCI | 1 | |
| 5 | 91-4194 | NAMEPLATE - TK Logo (9.5 in wide) | 1 | |
| 6 | 91-5879 | NAMEPLATE - R403B | 1 | |
| 7 | 91-3014 | NAMEPLATE - Warning Engine Overspeed 1600 RPM | 1 | |
| 8 | 91-4193 | NAMEPLATE - Motorized Damper Blade | 1 | |
| 9 | 91-6204 | NAMEPLATE - Caution: If Unit Fails to Start | 1 | |
| 10 | 91-7206 | NAMEPLATE - Tag, Caution Before Starting | 1 | |
| 11 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 12 | 99-9524 | NAMEPLATE - Oil Filter | 1 | |
| 13 | 91-7207 | NAMEPLATE - Electrical | 1 | |
| 14 | 91-5886 | NAMEPLATE - Refrigerant R404A | 1 | |
| 15 | 91-5882 | NAMEPLATE - R404A | 1 | |
| 16 | 99-8509 | NAMEPLATE - Maintenance | 1 | |
| 17 | 91-5885 | NAMEPLATE - Compressor Oil 203-427 | 1 | |
| 18 | 92-324 | NAMEPLATE - Compressor Oil 203-513 | 1 | |
| 19 | 99-9938 | NAMEPLATE - Caution, Start/Stop | 1 | |
| 20 | 99-8508 | NAMEPLATE - Caution | 1 | |
| 21 | 99-9854 | NAMEPLATE - Caution (multi-language) | 1 | |
| 22 | 91-7204 | NAMEPLATE - SMX TCI | 1 | |
| 23 | 91-6651 | NAMEPLATE - TK Tested | 1 | |
| 24 | 91-3893 | NAMEPLATE - Special Evacuation Procedures | 1 | |
| 25 | 99-9939 | NAMEPLATE - Caution, Start/Stop (multi-language) | 1 | |
| 26 | 99-8421 | NAMEPLATE - Caution, High Voltage | 1 | |
| 27 | 99-9856 | NAMEPLATE - Caution, High Voltage (multi-language) | 1 | |
| 29 | 91-4718 | NAMEPLATE - Caution Fan | 1 | |
| 30 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 31 | 99-8507 | NAMEPLATE - Caution, Fan (multi-language) | 1 | |
| 32 | 91-8746 | NAMEPLATE - Ingersoll Rand | 1 |
