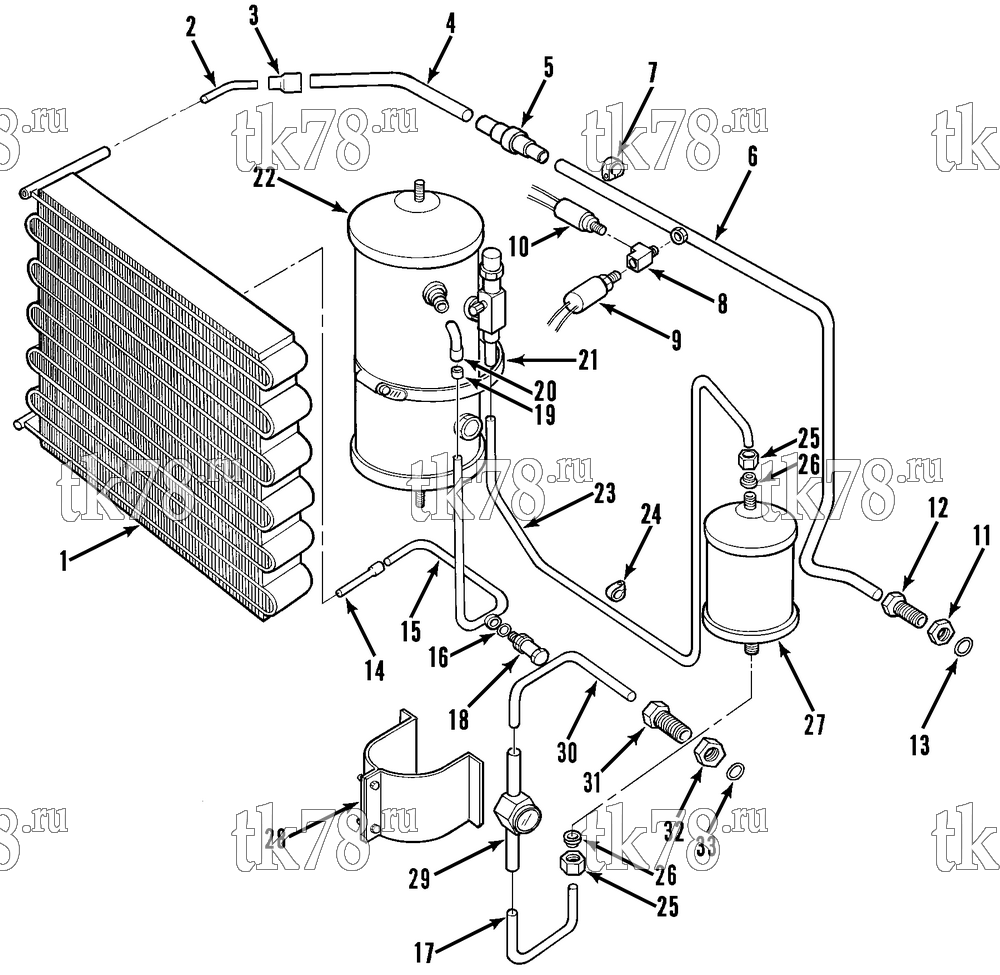

Установкa Thermo King схема C580 CONDENSER REFRIGERATION COMPONENTS – 128E3
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1305 | COIL - condenser (see 128E5) | 1 | |
| 2 | 66-7985 | TUBE - condenser coil inlet/outlet | 1 | |
| 3 | 55-2865 | COUPLING - reducing | 1 | |
| 4 | 66-7986 | TUBE - check valve to reducer | 1 | |
| 5 | 66-5722 | VALVE - check | 1 | |
| 6 | 66-7993 | TUBE - bulkhead to check valve | 1 | |
| 7 | 55-6389 | CLAMP - tube (1/2) | 1 | |
| 55-8399 | SCREW - clamp | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-7034 | NUT | 1 | ||
| 8 | 55-665 | TEE | 1 | |
| 9 | 44-7991 | SWITCH - condenser fan low pressure | 1 | |
| 10 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 11 | 55-6395 | NUT - bulkhead adapter | 1 | |
| 12 | 55-6779 | ADAPTER - bulkhead | 1 | |
| 13 | 33-566 | O-RING (1/2) | 1 | |
| 14 | 66-7994 | TUBE - coil to receiver tank | 1 | |
| 15 | 66-7995 | TUBE - coil to receiver tank | 1 | |
| 16 | 33-1015 | O-RING - relief valve | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 17 | 66-7990 | TUBE - drier to sight glass | 1 | |
| 18 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 19 | 55-3247 | BUSHING | 1 | |
| 20 | 55-1464 | ELBOW | 1 | |
| 21 | 55-2689 | CLAMP - receiver tank | 1 | |
| 22 | 67-1180 | TANK - receiver | 1 | |
| 55-5078 | NUT | 1 | ||
| 55-402 | FLATWASHER | 1 | ||
| 23 | 66-7996 | TUBE - receiver outlet to drier | 1 | |
| 24 | 55-6388 | CLAMP - tube (3/8) | 1 | |
| 55-8399 | SCREW - clamp | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-7034 | NUT | 1 | ||
| 25 | 55-8267 | NUT - shoulder | 2 | |
| 26 | 55-8268 | SHOULDER (brazed) | 2 | |
| 27 | 66-7867 | DEHYDRATOR | 1 | |
| 28 | 91-6924 | BRACKET - drier | 2 | |
| 99-4326 | PAD (rubber) | 1 | ||
| 55-7035 | SCREW - bracket | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT | 2 | ||
| 29 | 66-7576 | SIGHT GLASS | 1 | |
| 30 | 66-7991 | TUBE - sight glass to bulkhead | 1 | |
| 31 | 66-6036 | ADAPTER - bulkhead | 1 | |
| 32 | 55-6780 | NUT | 1 | |
| 33 | 33-1015 | O-RING (3/8) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
