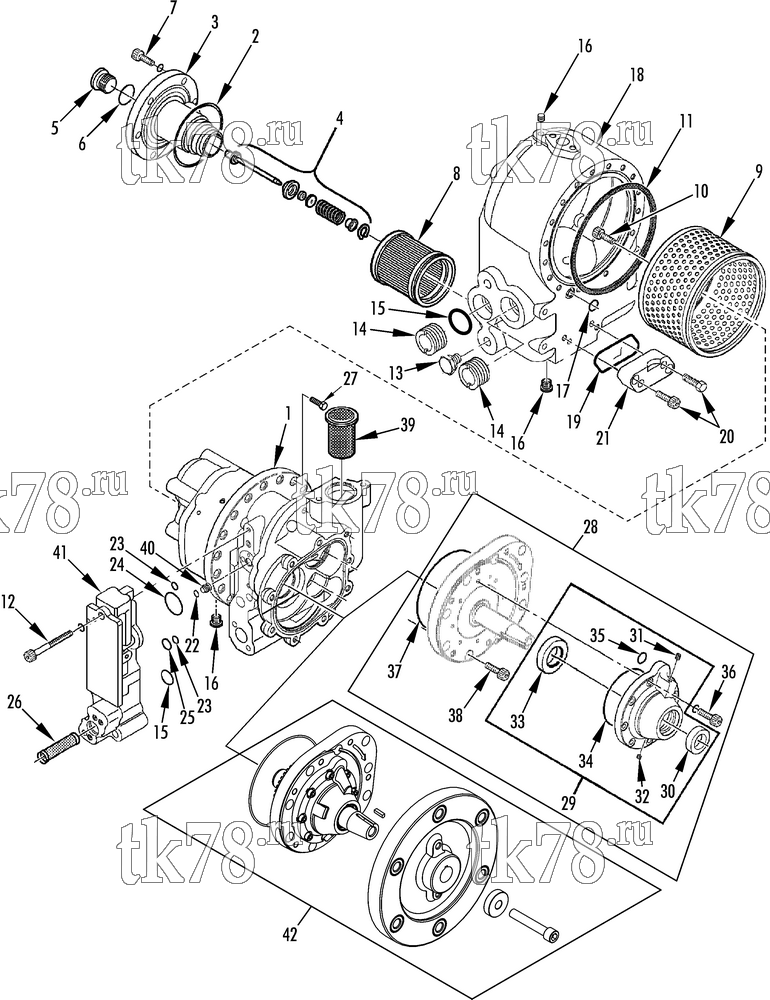

Установкa Thermo King схема SCREW COMPRESSOR – 128C4
Обновление от: 9/19/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 8102-816 | COMPRESSOR - screw | 1 | ||
| 1 | N/A | ROTOR - assembly | 1 | |
| 2 | 33-2347 | O-RING | 1 | |
| 3 | 22-994 | COVER - sump | 1 | |
| 4 | 22-995 | VALVE - oil bypass | 1 | |
| 5 | 55-8393 | PLUG - bypass valve | 1 | |
| 6 | 33-2747 | O-RING - plug | 1 | |
| 7 | 55-7755 | SCREW - cover | 6 | |
| 55-4613 | FLATWASHER | 6 | ||
| 8 | 22-998 | FILTER - oil | 1 | |
| 9 | 22-810 | SEPARATOR - oil | 1 | |
| 10 | 55-7428 | SCREW - separator | 1 | |
| 55-4742 | WASHER - special | 1 | ||
| 11 | 33-4544 | O-RING | 1 | |
| 12 | 55-8393 | SCREW - valve holder | 4 | |
| 55-4613 | FLATWASHER | 4 | ||
| 13 | 55-8398 | PLUG - drain | 1 | |
| 33-2747 | O-RING (1/2 od) | 1 | ||
| 14 | 22-350 | SIGHT GLASS | 1 | |
|
10-22-350 | Окно уровня масла, X214/418/426/430 | 3 730 ₽ |
|
| 15 | 33-4608 | O-RING (sight glass, 1-1/8 id) | 2 | |
| 16 | 55-7756 | PLUG - pipe | 4 | |
| 17 | 33-4544 | O-RING (1/2 id) | 1 | |
| 18 | 23-142 | SUMP | 1 | |
| 19 | 33-4355 | O-RING (1-3/4 id) | 1 | |
| 20 | 55-7759 | SCREW - cover | 2 | |
| 55-4613 | FLATWASHER | 2 | ||
| 21 | 22-858 | COVER - access | 1 | |
| 22 | 33-1015 | O-RING (3/8 id) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 23 | 33-4610 | O-RING (7/16 id) | 2 | |
| 24 | 33-4356 | O-RING (1-1/2 id) | 1 | |
| 25 | 33-4611 | O-RING (7/8 id) | 1 | |
| 26 | 22-999 | STRAINER - suction | 1 | |
| 27 | 55-7759 | SCREW - rotor housing | 16 | |
| 28 | N/A | SHAFT - drive assembly (23-136 1.0 shaft, use 20-181 1.187 shaft, see item 42) | 1 | |
| 29 | NSS | SEAL - assembly (1.0 shaft) | 1 | |
| 30 | 33-2748 | SEAL - lip | 1 | |
| 31 | 55-7761 | PLUG - pipe | 1 | |
| 32 | 55-7445 | PLUG | 1 | |
| 33 | 33-2120 | SEAL - lip | 1 | |
|
10-33-2120 | Сальник крышки компрессора X426/430/640 | 1 690 ₽ |
|
| PP-33-2120 | Сальник крышки компрессора X426/430/640 | 480 ₽ |
|
|
| 34 | 33-4357 | O-RING (3-1/4 id) | 1 | |
| 35 | 33-4358 | O-RING (9/16 id) | 1 | |
| 36 | 55-7760 | SCREW - cover | 8 | |
| 55-4607 | FLATWASHER | 8 | ||
| 37 | 33-4542 | O-RING (5-1/8 id) | 2 | |
| 38 | 55-8395 | SCREW - cover | 9 | |
| 39 | 22-708 | SCREEN - suction | 1 | |
| 40 | 22-859 | ORIFICE - compressor oil | 1 | |
| 41 | 22-1319 | COVER - valve | 1 | |
| 42 | 20-181 | KIT - drive shaft & coupling (converts 1.000 shaft to 1.187 shaft compressor) | 1 | |
| 203-515 | OIL - compressor (1 gallon) | A/R |
