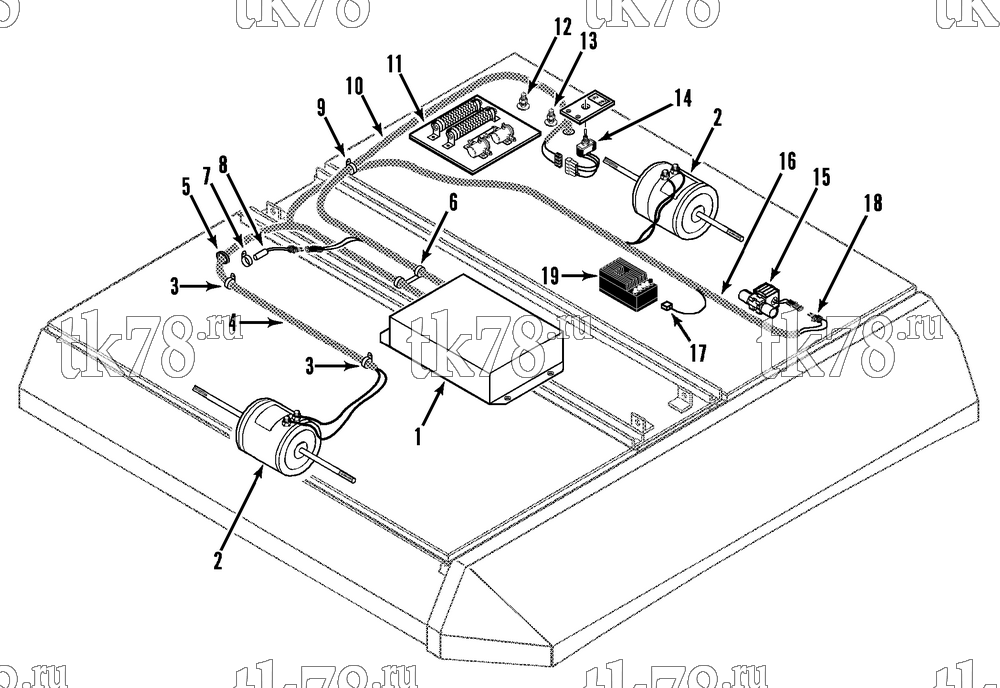

Установкa Thermo King схема EVAPORATOR ELECTRICAL COMPONENTS – 127A8
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | BOX - control (M2, M3, M5, see 127A11) | 1 | |
| NSS | BOX - control (M6, see 136A12) | 1 | ||
| NSS | BOX - control (M7, M8, R5 HP, see 144E14) | 1 | ||
| NSS | PANEL - control (RH5 M1, M2 see 145A7) | 1 | ||
| NSS | BOX - control (M12, see 149D6) | 1 | ||
| 2 | 104-584 | MOTOR - blower (M2, M3, M5, M8, RH5 M1, see 129E1) | 2 | |
| 104-807 | MOTOR - blower (M6, M7, M12, R5HP, RH5 M2) | 2 | ||
| 3 | 55-3026 | CLAMP - harness | 2 | |
| 4 | 41-1233 | HARNESS - evaporator motor (M2, M3, M5, M8) | 1 | |
| 41-1929 | HARNESS - evaporator motor (M6, M7, M12, R5 HP) | 1 | ||
| 41-2393 | HARNESS - heater motor (RH5 M1) | 1 | ||
| 41-2582 | HARNESS - heater motor (RH5 M2) | 1 | ||
| 55-5900 | CONNECTOR - liquid tite | 2 | ||
| 5 | 33-316 | GROMMET | 2 | |
| 6 | 55-3741 | CLAMP - harness | 5 | |
| 55-1587 | SCREW - clamp | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-4953 | NUT | 5 | ||
| 7 | 55-2684 | CLAMP - sensor | 1 | |
| 8 | 40-975 | KIT - temperature sensor (coil) | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 9 | 55-1203 | CLAMP - harness | 1 | |
| 55-1587 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-4953 | NUT | 1 | ||
| 10 | 41-1232 | HARNESS - main control (M2, M5, for connectors see 115D14) | 1 | |
| 41-1243 | HARNESS - main control (M3, for connectors see 115D14) | 1 | ||
| 41-1928 | HARNESS - main control (M6, M7, M12, for connectors see 115D14) | 1 | ||
| 41-2390 | HARNESS - main control (M8, for connectors see 115D14) | 1 | ||
| 41-2392 | HARNESS - main control (RH5 M1, for connectors, see 115D14) | 1 | ||
| 41-2581 | HARNESS - main control (RH5 M2, for connectors see 115D14) | 1 | ||
| 11 | 91-6754 | PLATE - resistor & solenoid (see 127A12) | 1 | |
| 12 | 55-3167 | STUD - terminal | 1 | |
| 55-3672 | LOCKWASHER | 1 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-3066 | LOCKWASHER | 3 | ||
| 55-671 | NUT | 4 | ||
| 55-5901 | WASHER - shoulder (polyester) | 1 | ||
| 55-5902 | FLATWASHER (polyester) | 1 | ||
| 13 | 55-3167 | STUD - terminal | 1 | |
| 55-448 | FLATWASHER | 4 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 55-671 | NUT | 4 | ||
| 14 | 44-490 | SWITCH - service (see 127D1) | 1 | |
|
10-44-490 | Выключатель | 2 590 ₽ |
|
| 15 | 41-7599 | VALVE - solenoid (water, 24V, see 147A1) | 1 | |
| 16 | 41-2515 | HARNESS - evaporator | 1 | |
| 17 | 41-1915 | CONNECTOR (3-pin) | 2 | |
| 41-1912 | LOCK - secondary (3-pin connector) | 2 | ||
| 18 | 44-5838 | CONNECTOR - tower (2-pin) | 2 | |
| 19 | 41-3590 | DRIVE - motor upgrade (M6, M7, M12, RH5 M2) | 1 | |
| 55-1587 | SCREW - drive | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-6526 | INSERT | 4 |
