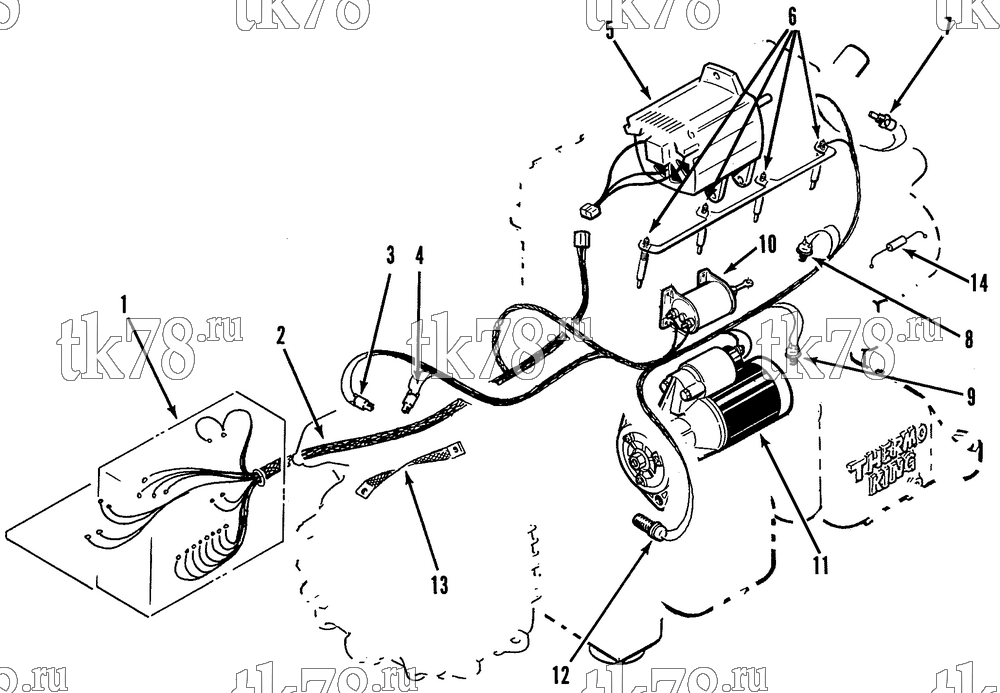

Установкa Thermo King схема ELECTRICAL COMPONENTS (POWER) – 126F13
Обновление от: 2/6/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-6722 | BOX - control (see 126D12) | 1 | |
| 2 | 41-1227 | HARNESS - main | 1 | |
| 3 | 44-6511 | SWITCH - lpco | 1 | |
| 4 | 44-6373 | SWITCH - hpco | 1 | |
| 5 | 41-3020 | ALTERNATOR (24V, 125 amp, see 126D14) | 1 | |
| 6 | 44-7671 | GLOW PLUG (24V di 2.2) | 4 | |
| 7 | 44-5027 | SWITCH - water temperature | 1 | |
| 8 | 44-7672 | VALVE - solenoid (fuel, 24V, di 2.2) | 1 | |
| 9 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 10 | 44-7673 | SOLENOID - engine throttle (see 82F11) | 1 | |
| 11 | 45-1360 | STARTER (24V, di 2.2) | 1 | |
| 12 | 44-9298 | SENSOR - rpm | 1 | |
|
10-44-9298 | Датчик оборотов двигателя | 14 400 ₽ |
|
|
PP-44-9298 | Датчик оборотов двигателя | 3 310 ₽ |
|
| 13 | 44-1644 | STRAP - ground | 1 | |
| 14 | 44-7663 | DIODE - injection pump | 1 | |
| 55-629 | SCREW - ground strap | 1 | ||
| 55-3504 | LOCKWASHER (internal tooth) | 2 | ||
| 55-698 | LOCKWASHER (internal tooth) | 1 | ||
| 55-8596 | FLATWASHER | 2 | ||
| 55-277 | NUT | 2 |
