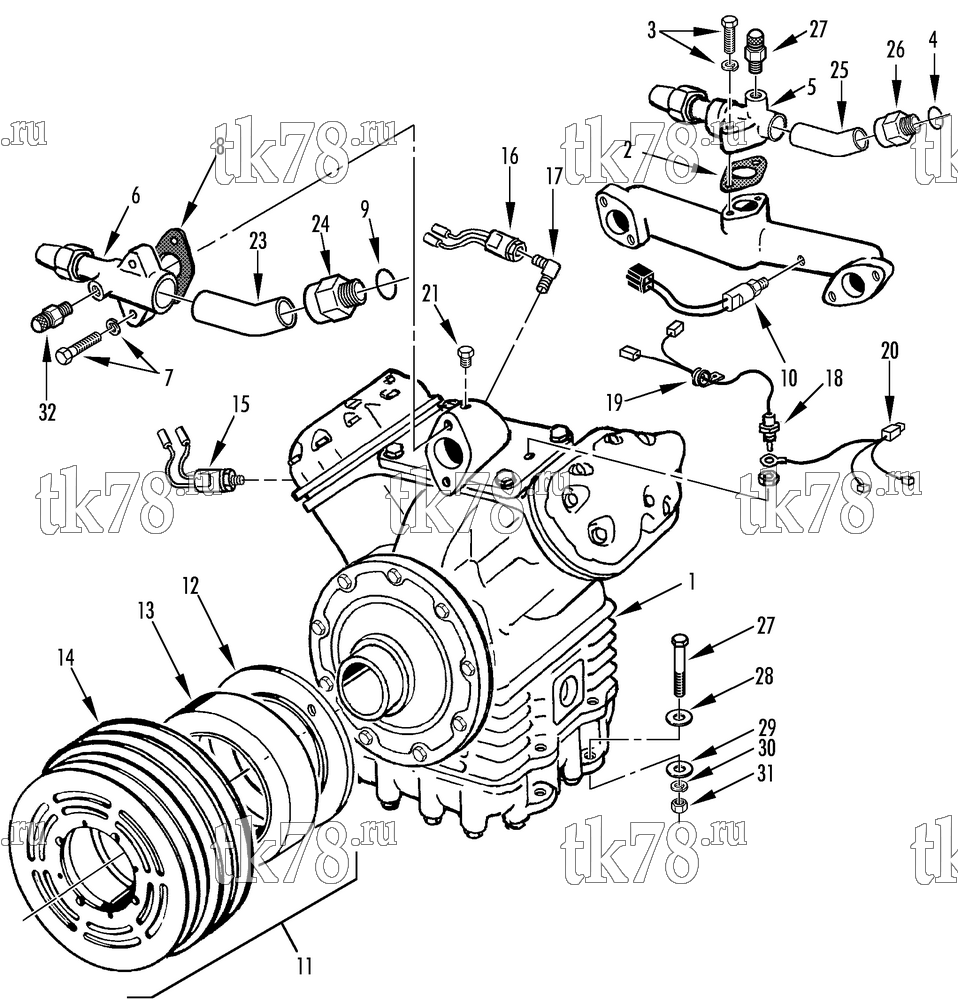

Установкa Thermo King схема COMPRESSOR GROUP (5085 BR) – 126E11
Обновление от: 12/14/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-916 | COMPRESSOR - X426 C5 (bus, see 230C5) | 1 | |
| 8102-916 | COMPRESSOR - X426 C5 (bus, reman, see 230C5) | 1 | ||
| 102-913 | COMPRESSOR - X426 C5 (subassembly, see 231A2) | 1 | ||
| 2 | 33-2805 | GASKET - manifold | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 3 | 55-201 | SCREW - discharge valve | 2 | |
| 55-895 | FLATWASHER | 2 | ||
| 4 | 33-593 | O-RING | 1 | |
| 5 | 66-6186 | VALVE - discharge | 1 | |
| 6 | 66-3576 | VALVE - suction | 1 | |
| 7 | 55-6776 | SCREW - suction valve | 2 | |
| 55-6804 | FLATWASHER | 2 | ||
| 8 | 33-2541 | GASKET - suction valve | 1 | |
| 9 | 33-544 | O-RING | 1 | |
| 10 | 44-6312 | SWITCH - hpco | 1 | |
| 11 | NSS | CLUTCH - assembly | 1 | |
| 107-192 | KIT - clutch drive repair (see 94G5) | 1 | ||
| 12 | 77-1083 | PLATE | 1 | |
| 13 | 45-1389 | FIELD - clutch (24VDC) | 1 | |
| 14 | 77-1229 | PULLEY (2-B/2-A grooves, 9.0/10.0 in od) | 1 | |
| 15 | 44-6312 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 44-6265 | SWITCH - only | 1 | ||
| 16 | 44-3834 | SWITCH - lpco | 1 | |
| 17 | 55-466 | ELBOW | 1 | |
| 33-768 | GASKET - flare | 1 | ||
| 18 | 44-3842 | DIODE - assembly | 1 | |
| 44-3940 | DIODE - only | 1 | ||
| 55-2996 | LOCKWASHER - diode | 1 | ||
| 19 | 55-5129 | CLAMP - harness | 1 | |
| 20 | 44-6942 | HARNESS - compressor | 1 | |
| 21 | 55-433 | PLUG - pipe | 1 | |
| 22 | 33-2805 | GASKET - discharge valve | 1 | |
|
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 23 | 66-7758 | TUBE - discharge | 1 | |
| 24 | 66-7055 | ADAPTER (#16) | 1 | |
| 25 | 66-7759 | TUBE - suction | 1 | |
| 26 | 66-7064 | ADAPTER (#20) | 1 | |
| 27 | 55-8274 | SCREW - compressor | 4 | |
| 28 | 55-399 | WASHER - special | 4 | |
| 29 | 55-6520 | FLATWASHER | 4 | |
| 30 | 55-364 | LOCKWASHER | 4 | |
| 31 | 55-286 | NUT | 4 | |
| 32 | 11-2886 | VALVE - pressure (see 119G12) | 2 |
