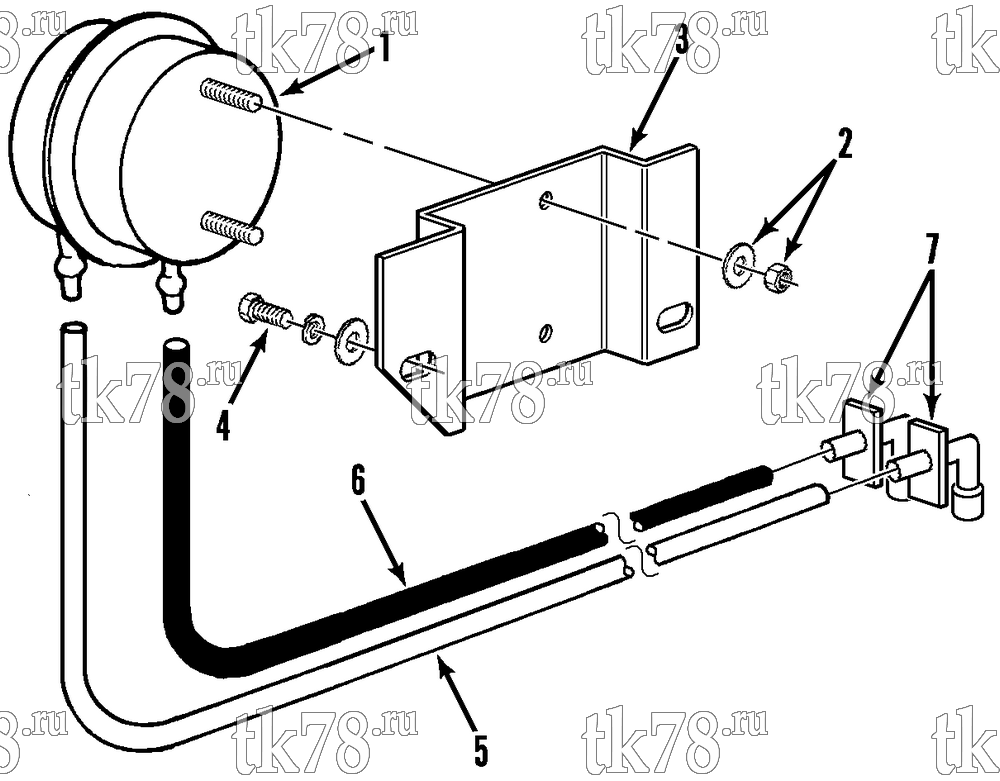

Установкa Thermo King схема PRESSURE DIFFERENTIAL – 125F11
Обновление от: 10/14/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-6243 | SWITCH - air (pressure differential, 1.0 wc) | 1 | |
| 2 | 55-4560 | NUT | 2 | |
| 55-2001 | FLATWASHER | 2 | ||
| 3 | 91-9792 | BRACKET - pressure differential switch | 1 | |
| 4 | 55-1587 | SCREW - bracket | 2 | |
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 5 | 99-1142 | HOSE (clear, 25 ft) | A/R | |
| 6 | 99-1143 | HOSE (black, 25 ft) | A/R | |
| 7 | 99-1275 | PROBE - air switch | 2 | |
| 10-99-1275 | Зонд | 800 ₽ |
|
|
| 55-1714 | RIVET - probe | 2 |
