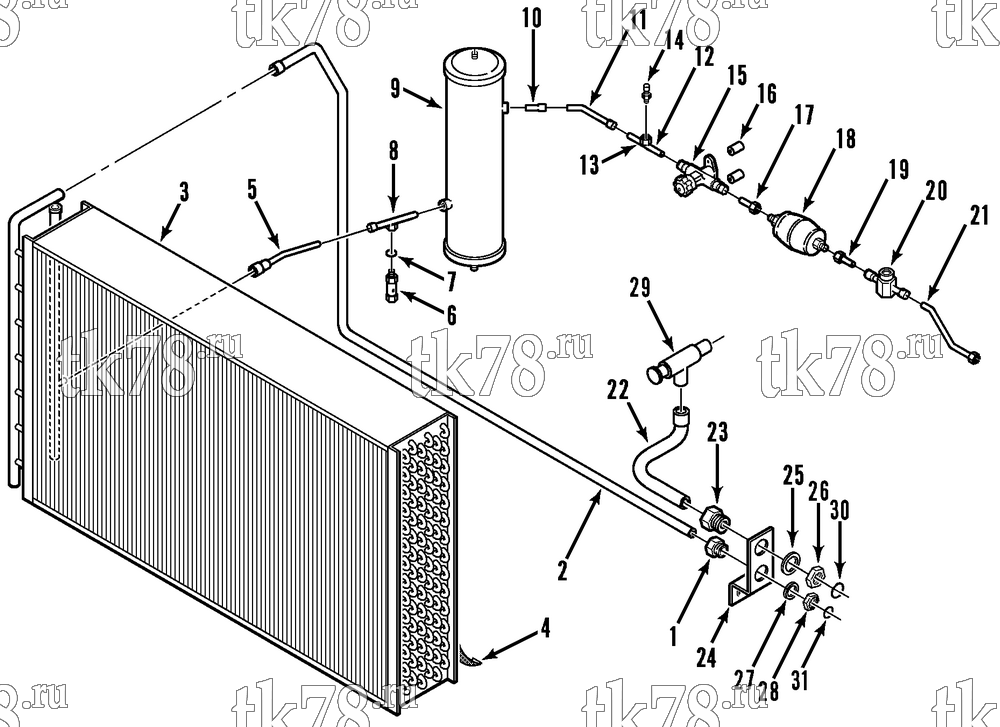

Установкa Thermo King схема REFRIGERATION - CONDENSER – 125D5
Обновление от: 7/24/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-7736 | ADAPTER (#16) | 1 | |
| 2 | 66-7761 | TUBE - discharge | 1 | |
| 3 | 67-308 | COIL - condenser | 1 | |
| 55-366 | LOCKWASHER | 9 | ||
| 55-411 | FLATWASHER | 18 | ||
| 55-315 | NUT | 9 | ||
| 4 | 33-2474 | STRIP - seal | 1 | |
| 5 | 66-7735 | TUBE - coil to receiver | 1 | |
| 6 | 66-7392 | VALVE - relief (high pressure) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 7 | 33-1015 | O-RING | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 8 | 66-7731 | TUBE - tank in | 1 | |
| 9 | 67-1238 | TANK - receiver | 1 | |
| 55-289 | NUT - tank | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 10 | 66-7730 | TUBE - tank out | 1 | |
| 11 | 66-7735 | TUBE - liquid coil tank | 1 | |
| 12 | 66-7755 | TUBE | 1 | |
| 13 | 66-3571 | FITTING | 1 | |
| 14 | 11-2886 | VALVE (Schrader) | 1 | |
| 15 | 66-1187 | VALVE | 1 | |
| 55-214 | SCREW - coil | 9 | ||
| 16 | 55-8262 | SPACER | 2 | |
| 55-214 | SCREW - valve | 2 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-315 | NUT | 2 | ||
| 17 | 66-7755 | TUBE - valve to dehydrator | 1 | |
| 18 | 66-9015 | DEHYDRATOR | 1 | |
| 55-8273 | CLAMP | 1 | ||
| 55-5660 | SCREW - clamp | 1 | ||
| 19 | 66-7762 | TUBE (R12) | 1 | |
| 20 | 66-1188 | INDICATOR - liquid | 1 | |
| 21 | 66-7756 | TUBE - sight glass to expansion valve | 1 | |
| 22 | 66-7738 | TUBE - suction | 1 | |
| 23 | 66-7064 | ADAPTER (#20) | 2 | |
| 24 | 91-6543 | BRACKET - fittings (o-ring seal, R22) | 1 | |
| 91-6516 | BRACKET - fitting (o-ring seal, R12 & R134a) | 1 | ||
| 25 | 55-5742 | LOCKWASHER (#20) | 1 | |
| 26 | 55-5739 | NUT (#20) | 1 | |
| 27 | 55-5741 | LOCKWASHER (#16) | 1 | |
| 28 | 55-5740 | NUT (#16) | 1 | |
| 29 | 66-2122 | VALVE - epr | 1 | |
| 30 | 33-1777 | O-RING - suction | 1 | |
| 31 | 33-1785 | O-RING - recharge | 1 |
