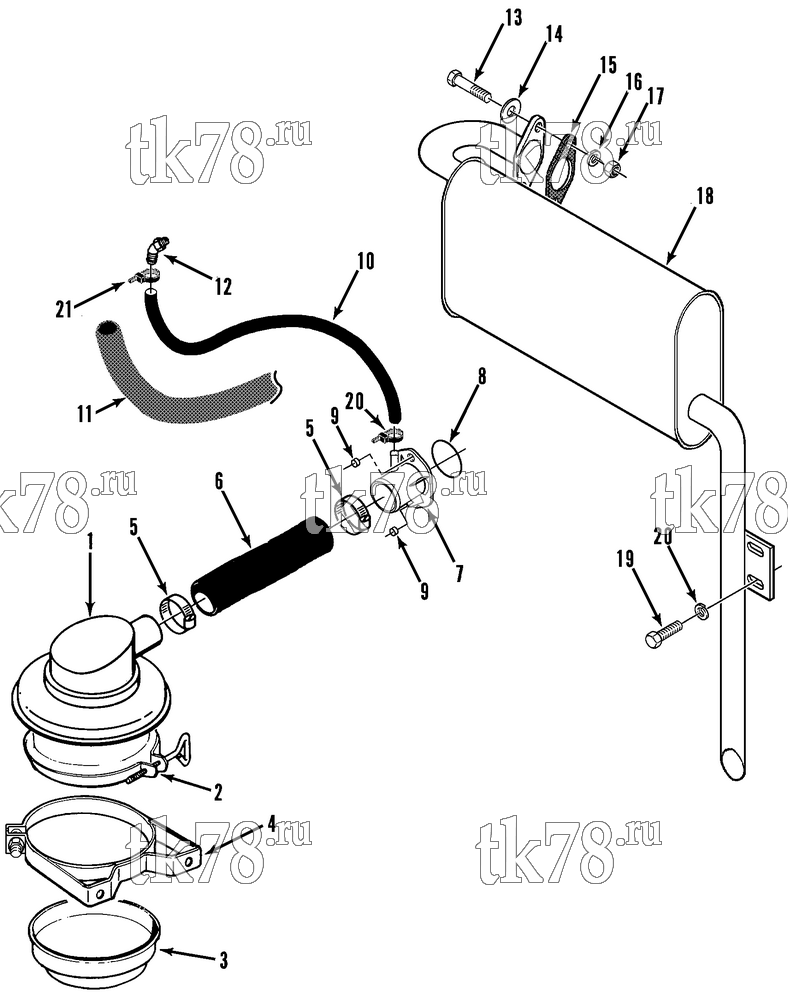

Установкa Thermo King схема AIR INTAKE & EXHAUST GROUP – 124E8
Обновление от: 11/25/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-664 | CLEANER - air | 1 | |
| 2 | 99-1400 | CLAMP - oil cup | 1 | |
| 3 | 11-2610 | CUP - air cleaner | 1 | |
| 4 | 11-2457 | CLAMP - air cleaner | 1 | |
| 55-8116 | SCREW - clamp | 1 | ||
| 55-3472 | NUT | 1 | ||
| 55-3834 | SCREW - clamp | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-4954 | NUT | 2 | ||
| 5 | 55-3991 | CLAMP - hose | 2 | |
| 6 | 11-8475 | HOSE - air cleaner | 1 | |
| 10-317 | KIT - adapter & hose (intake) | 1 | ||
| 7 | 11-8858 | ADAPTER - air intake | 1 | |
| 8 | 33-2854 | O-RING | 1 | |
| 9 | 91-7555 | SPACER | 2 | |
| 10 | 11-8900 | HOSE - breather | 1 | |
| 11 | 11-8901 | HOSE - insulation | 1 | |
| 12 | 55-1592 | CONNECTOR - hose | 1 | |
| 55-5022 | SCREW - adapter | 2 | ||
| 55-4613 | FLATWASHER | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 13 | 55-139 | SCREW - muffler | 2 | |
| 14 | 55-371 | FLATWASHER | 2 | |
| 15 | 33-2314 | GASKET - exhaust | 1 | |
| 33-2314 OEM | Прокладка глушителя, Isuzu 2.2 DI (D201), Yanmar 482 / 486 / 486V | 1 250 ₽ |
|
|
|
10-33-2314 | Прокладка глушителя, Isuzu 2.2 DI (D201), Yanmar 482 / 486 / 486V | 990 ₽ |
|
|
PP-33-2314 | Прокладка глушителя, Isuzu 2.2 DI (D201), Yanmar 482 / 486 / 486V | 480 ₽ |
|
| 16 | 55-790 | LOCKWASHER | 2 | |
| 17 | 55-312 | NUT | 2 | |
| 18 | 12-654 | MUFFLER (steel) | 1 | |
| 12-654 | MUFFLER (stainless steel) | 1 | ||
| 19 | 55-5695 | SCREW - muffler | 2 | |
| 20 | 55-5411 | LOCKWASHER | 2 | |
| 55-402 | FLATWASHER | 2 | ||
| 21 | 55-2332 | BANDWRAP | 2 |
