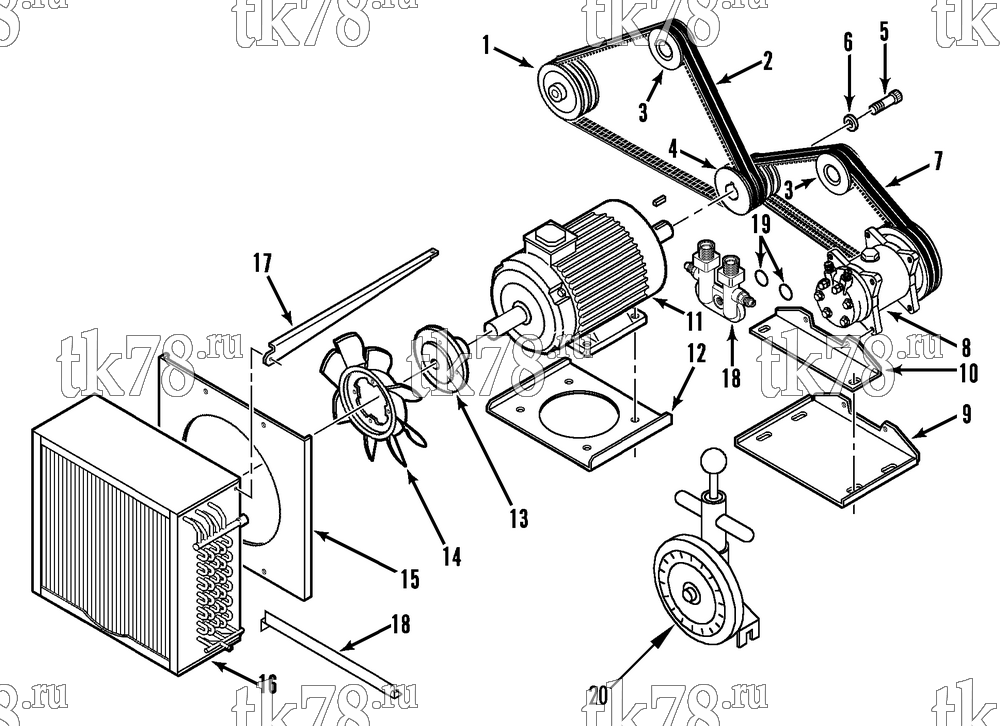

Установкa Thermo King схема BELTS, PULLEYS & FAN GROUP – 124E10
Обновление от: 1/22/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-2267 | PULLEY - hydraulic motor | 1 | |
| 2 | 78-948 | BELT - pump to electric motor | 1 | |
| 10-78-948 | Ремень, SD-II, SH-II | 1 400 ₽ |
|
|
| 3 | NSS | PULLEY - idler (see 112A5) | 1 | |
| 4 | 77-2268 | PULLEY - electric motor (SH-II) | 1 | |
| 78-950 | PULLEY - electric motor (SH-II MAX) | 1 | ||
| 5 | 55-7841 | SCREW - pulley | 1 | |
| 6 | 55-7842 | WASHER - special | 1 | |
| 7 | 78-958 | BELT - compressor drive (SH-II) | 1 | |
| 78-949 | BELT - compressor drive (SH-II MAX) | 1 | ||
| 8 | 102-839 | COMPRESSOR - TM15-XD (SH-II R134a, see note) | 1 | |
| 102-343 | COMPRESSOR (SH-II MAX R403B) | 1 | ||
| 55-7839 | SCREW - compressor | 4 | ||
| 55-7357 | FLATWASHER | 10 | ||
| 55-7344 | NUT | 4 | ||
| 9 | 91-6081 | BRACKET - lower compressor mount | 1 | |
| 10 | 91-6082 | BRACKET - upper compressor mount | 1 | |
| 55-4680 | SCREW - bracket | 4 | ||
| 55-7728 | LOCKWASHER | 4 | ||
| 55-7072 | FLATWASHER | 4 | ||
| 55-7803 | NUT - captive | 4 | ||
| 11 | 104-586 | MOTOR - electric | 1 | |
| 12 | 91-6089 | BRACKET - motor | 1 | |
| 55-6279 | SCREW - motor & bracket | 4 | ||
| 55-7728 | LOCKWASHER | 4 | ||
| 55-7072 | FLATWASHER | 4 | ||
| 55-7803 | NUT - captive | 4 | ||
| 13 | 77-2245 | HUB - fan | 1 | |
| 14 | 78-945 | FAN - condenser | 1 | |
| 55-6994 | SCREW - hub | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 15 | 78-944 | SHROUD - condenser fan | 1 | |
| 55-7172 | SCREW - shroud | 4 | ||
| 55-7378 | LOCKWASHER | 4 | ||
| 55-7805 | PENNYWASHER | 4 | ||
| 16 | 67-1221 | COIL - condenser (R403B) | 1 | |
| 67-1234 | COIL - condenser (R134a) | 1 | ||
| 55-7341 | SCREW - coil | 2 | ||
| 55-7621 | LOCKWASHER | 2 | ||
| 55-7804 | WASHER - special | 2 | ||
| 17 | 91-6062 | STAY - condenser coil | 1 | |
| 55-7172 | SCREW - stay | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 18 | 22-992 | MANIFOLD - compressor (90 deg, w/ o-rings) | 1 | |
|
10-22-992 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 19 | 33-2882 | O-RING | 2 | |
| 20 | 204-427 | GAUGE - belt tension | 1 |
