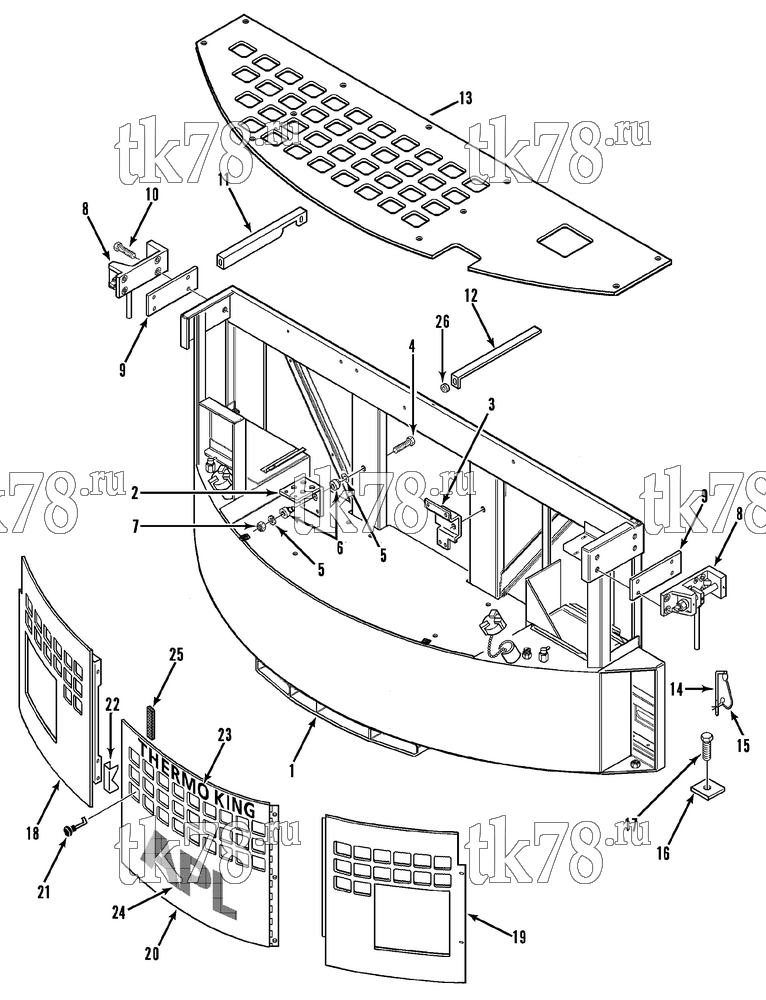

Установкa Thermo King схема STRUCTURAL COMPONENTS – 124C5
Обновление от: 1/10/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4579 | FRAME - fuel tank group (see 122D6) | 1 | |
| 2 | 91-6830 | BRACKET - engine snubber | 1 | |
| 55-2963 | SCREW - bracket | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 3 | 99-9960 | BRACKET - engine snubber | 1 | |
| 55-5695 | SCREW - bracket (M10 x 1.25) | 3 | ||
| 55-5411 | LOCKWASHER (10.2 mm) | 3 | ||
| 55-5022 | SCREW - bracket (M8 x 1.25) | 1 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 4 | 55-2557 | SCREW - vibration mount | 2 | |
| 5 | 55-3595 | WASHER - special | 4 | |
| 55-2038 | FLATWASHER | 2 | ||
| 55-7981 | LOCKWASHER | 2 | ||
| 6 | 99-3649 | MOUNT - vibration | 2 | |
|
10-99-3649 | Опора | 5 140 ₽ |
|
| 7 | 55-3686 | NUT (stop) | 2 | |
| 8 | 91-3161 | BRACKET - clip-on (left, see 105C8) | 1 | |
| 91-3162 | BRACKET - clip-on (right, see 105C8) | 1 | ||
| 9 | 91-2382 | SPACER - bracket | 2 | |
| 10 | 55-5447 | SCREW - bracket | 8 | |
| 55-4767 | FLATWASHER | 8 | ||
| 55-5418 | NUT | 8 | ||
| 11 | 91-6179 | SUPPORT (top, right) | 1 | |
| 12 | 91-6182 | SUPPORT (top, left) | 1 | |
| 55-7731 | SCREW - support | 4 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 55-7422 | INSERT | 2 | ||
| 13 | 98-4662 | PANEL - top | 1 | |
| 55-7731 | SCREW - panel | 9 | ||
| 55-2086 | FLATWASHER | 7 | ||
| 55-3045 | LOCKWASHER - dome | 9 | ||
| 55-7422 | INSERT | 9 | ||
| 14 | 91-6183 | PIN - retaining | 2 | |
| 55-2641 | FLATWASHER | 2 | ||
| 55-3458 | PIN - cotter | 2 | ||
| 15 | 91-105 | CHAIN - assembly | 2 | |
| 16 | 91-6188 | SPACER | 2 | |
| 17 | 55-5941 | SCREW - angle (3/4) | 2 | |
| 18 | 98-4660 | PANEL - right | 1 | |
| 19 | 98-4661 | PANEL - left | 1 | |
| 55-7731 | SCREW - panel | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-7422 | INSERT | 6 | ||
| 20 | 98-3846 | DOOR (center) | 1 | |
| 91-2378 | SPACER - door | 1 | ||
| 55-7731 | SCREW - door | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-7422 | INSERT (1/4-20) | 3 | ||
| 21 | 99-6599 | LATCH - door | 1 | |
|
10-99-6599 | Замок двери | 2 200 ₽ |
|
| 99-665 | NUT - latch | 1 | ||
| 22 | 91-2379 | BRACKET - latch | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 23 | 99-7279 | NAMEPLATE - Thermo King | 1 | |
| 24 | 91-4149 | NAMEPLATE - APL | 1 | |
| 25 | 99-6377 | STRIP - bumper (door) | 6 | |
| 26 | 91-6180 | SPACER (0.10 thk) | 1 | |
| 91-6181 | SPACER (0.25 thk) | 1 |
